The Alphacool Eiswolf 2 is the first full cover GPU AIO waterblock from Alphacool. It is based on the Alphacool GPX Eisblock Aurora GPX water block, a pump unit and a 360mm NexXxoS ST30 full copper radiator. The latter is equipped with the Alphacool Aurora Rise Digital RGB fans. Fullcover Waterblock? The Eiswolf 2 graphics card AIO water block not only cools the GPU with liquid but also all relevant components that require active cooling. This includes the graphics memory, the VRM and, if necessary, other components that require direct cooling. By using the Eisblock GPX Aurora water cooler, the cooling capacity is identical to that of a DIY graphics card water cooler. Pump The Eiswolf 2 has a pump unit in place of the normal connection terminal. This pump unit houses the DC-LT 2 pump. An improved and quieter version of the well-known DC-LT Low Noise Ceramic Pump. Despite looking rather large, the pump unit is only 5 mm wider than a normal connection terminal. Fittings and Tubing As with all new AIO units, Alphacool uses only TPV hoses from the Enterprise Solution range for (usually reserved for servers and workstations) in the Eiswolf 2. The tubing is made of EPDM/PP and are extremely heat-resistant, durable, and free of plasticizers. All fittings are also based on the Enterprise Solution range and match the TPV hoses perfectly. Expandability By using the quick-release fastener, the Eiswolf 2 can be connected to another Alphacool AIO unit to achieve a larger loop in seconds. Alphacool offers various prefilled components with which the loop can be easily extended. For safety reasons, the quick-release fasteners are firmly screwed together and not just plugged together. Lighting and fans The Eiswolf 2 cooler has a digital RGB LED lighting, also called addressable RGB LEDs. They run along the entire back of the graphics card cooler and provide complete illumination of the water cooler. The pump unit is more discreet and offers a green glowing logo for Nvidia and a red glowing logo for AMD cards. The name "Eiswolf" on the pump unit remains unlit, discreetly in the background. The fan used is the Aurora Rise with 120mm. Due to the special blade design, the fan is extremely quiet and the addressable RGB LEDs provide brilliant illumination. The Alphacool Aurora Rise fan convinces with a max. statistical pressure of 3.17mm/H2O and offers a max. air flow of 119.8m3/h. The PWM control allows the fan to be controlled over a wide speed range. In addition, it offers a zero control. It can therefore be regulated down to 0 rpm and then starts with approx. 350 rpm. NexXxoS Radiator As with all AIO units, Alphacool uses radiators from the world renowned NexXxoS series. The full copper radiators offer a much higher cooling capacity than aluminium radiators and have contributed significantly to Alphacool's worldwide success. The combination of all of the components results in a solution that is as simple as an AIO solution to install, but with the performance of a pre-assembled and prefilled custom loop. Technical data cooler and pump L x W x H 122 x 233,5 x 46 mm Material cooler bottom Nickel plated copper Material cooler top PMMA Threads 2 x G1/4“ Pump type DC-LT 2 Pump speed 2600 rpm (+/- 10%) Head of delivery 0,95 m Technical radiator L x W x H 395 x 124 x 30mm (+/- 3%) Material fins, chambers & channels copper Material threads brass Material outer housing stainless steel G 1/4“ threads 2 x for tubes (+ 1x Fillport G1/4“) For fan size 120 mm Possible fan assembly 3 x one-sided / 6 x both-sided Technical data fans Speed 0 - 2500 RPM Static pressure 3,17 mm H2O Air flow rate 119,8 m³/h Fan connector 4-Pin PWM Connection Digital aRGB 3-Pin JST + 3-Pin 5V Dimensions 120 x 120 x 25 mm Max working temperature 60 °C Note: - Attention: The use of the NVLink is not possible with this AIO! Compatibility list: RTX 3080 TI Gigabyte GeForce RTX 3080 Ti Eagle 12G, 12GB GDDR6X, 2x HDMI, 3x DP Gigabyte GeForce RTX 3080 Ti Eagle OC 12G, 12GB GDDR6X, 2x HDMI, 3x DP Gigabyte GeForce RTX 3080 Ti Vision OC 12G, 12GB GDDR6X, 2x HDMI, 3x DP Gigabyte Geforce RTX 3080 Ti Gaming OC RTX 3080 Gigabyte GeForce RTX 3080 Eagle OC 10G, 10GB GDDR6X, 2x HDMI, 3x DP Gigabyte GeForce RTX 3080 Gaming OC 10G, 10GB GDDR6X, 2x HDMI, 3x DP Gigabyte GeForce RTX 3080 Turbo 10G, 10GB GDDR6X, 2x HDMI, 2x DP Gigabyte GeForce RTX 3080 Vision OC 10G, 10GB GDDR6X, 2x HDMI, 3x DP RTX 3090 Gigabyte GeForce RTX 3090 Eagle OC 24G, 24GB GDDR6X, 2x HDMI, 3x DP Gigabyte GeForce RTX 3090 Gaming OC 24G, 24GB GDDR6X, 2x HDMI, 3x DP Gigabyte GeForce RTX 3090 Turbo 24G, 24GB GDDR6X, 2x HDMI, 2x DP Gigabyte GeForce RTX 3090 Vision OC 24G, 24GB GDDR6X, 2x HDMI, 3x DP Downloads: Datasheet PDF | Manual(1) PDF | Manual(2) PDF | Nvidia List of Compatibility PDF Links: Graphics Card Configurator Technical note! Due to long storage times and various transport routes, the liquid in the Eiswolf 2 AIO remains still for a long time. The ingredients of the liquid can therefore deposit and lead to a brownish discoloration. As soon as the pump starts operating, the ingredients mix again and the liquid should regain an approximately clear color. This is not a reason for complaint as neither the performance nor the function of the AIO are restricted by this. If the discolouration of the cooling liquid does not disappear after the AIO has been put into operation, please contact our support team via E-Mail (info@alphacool.com). You will receive quick and uncomplicated help there.
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers as well as Alphacool's Eiswolf 2 GPU AIOs (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance. Connection options There are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1 The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2 The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!) The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design. Brilliant illumination Six addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility: - Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 Aorus Master/Xtreme with backplate (article number: 11974) - Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 Aorus Master/Xtreme with backplate (article number: 11952) Technical data L x W x H 269,27 x 120,74 x 13,3 mm Material backplate copper, nickel-plated Material cooler acrylic Threads Water cooling 2x G1/4" | 2x 5/3mm tube connection Illumination 6x digital addressable RGB LEDs Power connector digital aRGB LEDs 3-pin JST (male & female switch) Power digital aRGB LEDs 5V Maximum working temperature 60 °C Pressure tested 0,8 Bar Weight 844 g
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers as well as Alphacool's Eiswolf 2 GPU AIOs (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance. Connection options There are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1 The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2 The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!) The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design. Brilliant illumination Six addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility: - Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 ROG Strix with backplate (article number: 14418) - Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 ROG Strix with backplate (article number: 11940) Technical data L x W x H 266,6 x 129 x 13,3 mm Material backplate copper, nickel-plated Material cooler acrylic Threads Water cooling 2x G1/4" | 2x 5/3mm tube connection Illumination 6x digital addressable RGB LEDs Power connector digital aRGB LEDs 3-pin JST (male & female switch) Power digital aRGB LEDs 5V Maximum working temperature 60 °C Pressure tested 0,8 Bar Weight 925 g
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance. Connection options There are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1 The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2 The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!) The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design. Brilliant illumination Six addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility: - Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 TI HOF with backplate (article number: 11967) Technical data L x W x H 295 x 125,25 x 13,3 mm Material backplate copper, nickel-plated Material cooler acrylic Threads Water cooling 2x G1/4" | 2x 5/3mm tube connection Illumination 6x digital addressable RGB LEDs Power connector digital aRGB LEDs 3-pin JST (male & female switch) Power digital aRGB LEDs 5V Maximum working temperature 60 °C Pressure tested 0,8 Bar Weight 1013 g
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers as well as Alphacool's Eiswolf 2 GPU AIOs (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance. Connection options There are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1 The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2 The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!) The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design. Brilliant illumination Six addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility: - Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 Ventus with backplate (article number: 14420) - Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 Ventus with backplate (article number: 11937) Technical data L x W x H 260 x 107,25 x 13,3 mm Material backplate copper, nickel-plated Material cooler acrylic Threads Water cooling 2x G1/4" | 2x 5/3mm tube connection Illumination 6x digital addressable RGB LEDs Power connector digital aRGB LEDs 3-pin JST (male & female switch) Power digital aRGB LEDs 5V Maximum working temperature 60 °C Pressure tested 0,8 Bar Weight 718 g

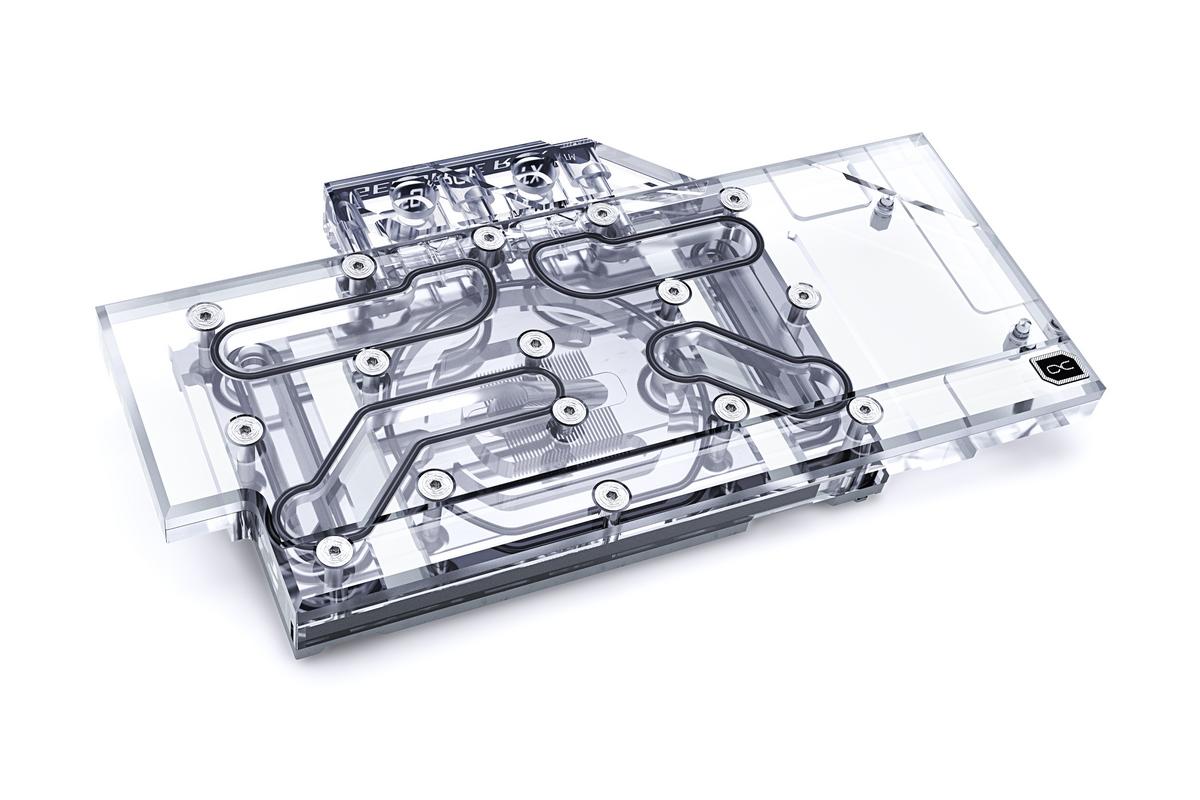

The Alphacool Aurora Plexi GPX-N RTX 3080/3090 Eisblock combines style with performance and extensive digital RGB lighting. With experience of over 16 years, Alphacool the ability to create GPU blocks that represent high quality and fantastic performance. This perfectly describes the Aurora Plexi GPX Eisblock More Performance! During the development of the EIsblock Aurora GPX-N RTX 3080/3090 graphic card GPU block, we wanted to further increase the performance. The first step was to move the cooler closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, we reduced the thickness of the nickel-plated copper block. Instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also been optimized. All important components such as the voltage transformers and the memory are now significantly better and more effectively cooled by the water. All this ensures a significant increase in cooling performance. New Design! The Eisblock Aurora GPX-N RTX 3080/3090 cooler has been designed so that lighting is more important than the previous models. The addressable digital RGB LEDs are embedded directly into the cooling block and run along the entire cooling block. The effect is an illumination of the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular with all edges bevelled. This promotes better light diffusion in the water cooler due to the reflections on these bevels. In addition, they create various contours, which give the Aurora GPX-N RTX 3080/3090 Eisblock cooler its very own unique identity. Copper or Aluminium? Of course, Alphacool only uses copper for its water coolers. With the Aurora GPX-N RTX 3080/3090 Eisblock, the copper is nickel-plated. Compared to its predecessor models, Alphacool has improved the nickel plating even further, which has considerably increased the acid resistance. This means that the nickel should resist flaking. Why does Alphacool rely on copper instead of aluminium? Simply, copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling. Is There Anything Else New? The Eisblock Aurora GPX-N RTX 3080/3090 also relies on the new patented stop fittings, which sit flush with the surface of the terminal. The Alphacool logo now sits in the corner on the top and is also fully illuminated. On the front of the terminal you can see the corresponding names of the compatible graphic card types. Of course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small triangles. They are easily recognizable and fit perfectly into the entire aesthetics of the graphic card water cooler. The Alphacool Aurora GPX-N RTX 3080/3090 Plexi is a complete redevelopment of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how flowed into the development and implementation. Note: - This article is delivered with a backplate Technical data: L x W x B: 142,1 x 238 x 22,5 mm Material cooler: Nickle plated copper Material top: Plexi Thickness cooling fins: 0,6 mm Threads: 4x G1/4“ Power connector Digital RGB: 3-Pin 5V (0,5A) Graphics Card Configurator: Click here! List of Compatibility: Nvidia graphic cards (Note: RTX 3090/3080 cards will be added after their release) Compatibility list: RTX3080 TI ASUS TUF Gaming GeForce RTX 3080 Ti 12GB OC RTX 3080 ASUS TUF Gaming GeForce RTX 3080 OC, TUF-RTX3080-O10G-GAMING, 10GB GDDR6X, 2x HDMI, 3x DP (90YV0FB1-M0NM00) ASUS TUF Gaming GeForce RTX 3080, TUF-RTX3080-10G-GAMING, 10GB GDDR6X, 2x HDMI, 3x DP (90YV0FB0-M0NM00) RTX 3090 ASUS TUF Gaming GeForce RTX 3090, TUF-RTX3090-24G-GAMING, 24GB GDDR6X, 2x HDMI, 3x DP (90YV0FD0-M0NM00) ASUS TUF Gaming GeForce RTX 3090 OC, TUF-RTX3090-O24G-GAMING, 24GB GDDR6X, 2x HDMI, 3x DP (90YV0FD1-M0NM00) Download manual PDF: Alphacool Eisblock Aurora Plexi GPX-N RTX 3090/3080 TUF with Backplate Download data sheet PDF: Alphacool Eisblock Aurora Plexi GPX-N RTX 3090/3080 TUF with Backplate
The Alphacool Aurora Plexi GPX-N RTX 3080/3090 Eisblock combines style with performance and extensive digital RGB lighting. With experience of over 17 years, Alphacool the ability to create GPU blocks that represent high quality and fantastic performance. This perfectly describes the Aurora Plexi GPX Eisblock More Performance! During the development of the EIsblock Aurora GPX-N RTX 3080/3090 graphic card GPU block, we wanted to further increase the performance. The first step was to move the cooler closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, we reduced the thickness of the nickel-plated copper block. Instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also been optimized. All important components such as the voltage transformers and the memory are now significantly better and more effectively cooled by the water. All this ensures a significant increase in cooling performance. New Design! The Eisblock Aurora GPX-N RTX 3080/3090 cooler has been designed so that lighting is more important than the previous models. The addressable digital RGB LEDs are embedded directly into the cooling block and run along the entire cooling block. The effect is an illumination of the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular with all edges bevelled. This promotes better light diffusion in the water cooler due to the reflections on these bevels. In addition, they create various contours, which give the Aurora GPX-N RTX 3080/3090 Eisblock cooler its very own unique identity. Copper or Aluminium? Of course, Alphacool only uses copper for its water coolers. With the Aurora GPX-N RTX 3080/3090 Eisblock, the copper is nickel-plated. Compared to its predecessor models, Alphacool has improved the nickel plating even further, which has considerably increased the acid resistance. This means that the nickel should resist flaking. Why does Alphacool rely on copper instead of aluminium? Simply, copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling. Is There Anything Else New? The Eisblock Aurora GPX-N RTX 3080/3090 also relies on the new patented stop fittings, which sit flush with the surface of the terminal. The Alphacool logo now sits in the corner on the top and is also fully illuminated. On the front of the terminal you can see the corresponding names of the compatible graphic card types. Of course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small triangles. They are easily recognizable and fit perfectly into the entire aesthetics of the graphic card water cooler. The Alphacool Aurora GPX-N RTX 3080/3090 Plexi is a complete redevelopment of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how flowed into the development and implementation. Note: - The Founders Edition, does NOT correspond to the Reference Design! Technical data cooler L x W x H 224,86 x 121,4 x 25,05 mm Material cooler Nickle-plated copper Material cooler top acrylic Threads 4 x G1/4 Thickness cooling fins 0,6 mm Illumination digital RGB LEDs Power connector digital RGB LEDs 3-Pin JST Power digital RGB LEDs 5V Maximum working temperature 60 °C Technical data backplate L x W x H 224,86 x 96,9 x 6 mm Material aluminium Color black Compatibility: RTX 3080 TI Gainward GeForce RTX 3080 Ti 12GB Phoenix INNO3D GEFORCE RTX 3080 TI ICHILL X4 INNO3D GEFORCE RTX 3080 TI ICHILL FROSTBITE INNO3D GEFORCE RTX 3080 TI ICHILL X3 INNO3D GEFORCE RTX 3080 TI X3 INNO3D GEFORCE RTX 3080 TI X3 OC Palit GeForce RTX 3080 Ti GamingPro Zotac Gaming GeForce RTX 3080 Ti AMP Holo Zotac GeForce RTX 3080 Ti AMP HoloBlack Zotac Gaming GeForce RTX 3080 Ti Trinity Zotac Gaming GeForce RTX 3080 Ti Trinity OC RTX 3080 Galakuro NVIDIA GEFORCE RTX 3080 GG-RTX3080-E10GB/TP Galax GeForce RTX 3080 SG 10GB GDDR6X 320-bit DP*3/HDMI Gainward RTX 3080 Phoenix Gainward RTX 3080 Phoenix GS Inno3D GeForce RTX 3080 iChill X3/X4 10240 MB GDDR6X Inno3D GeForce RTX 3080 Twin X2 OC 10240 MB GDDR6X INNO3D GEFORCE RTX 3080 12GB ICHILL FROSTBITE LHR INNO3D GEFORCE RTX 3080 12GB X3 OC LHR INNO3D GEFORCE RTX 3080 12GB ICHILL X3/X4 LHR INNO3D GEFORCE RTX 3080 12GB ICHILL BLACK LHR KFA2 GeForce RTX 3080 SG 10GB GDDR6X 320-bit DP*3/HDMI Palit GeForce RTX™ 3080 GamingPro Palit GeForce RTX™ 3080 GamingPro OC PNY GeForce RTX 3080 XLR8 Gaming EPIC-X RGB 10240 MB GDDR6X (VCG308010TFXMPB) PNY GeForce RTX 3080 XLR8 Gaming EPIC-X RGB 10240 MB GDDR6X (VCG308010TFXPPB) Zotac GAMING GeForce RTX 3080 Trinity Zotac Gaming GeForce RTX 3080 Trinity OC RTX 3090 Galakuro NVIDIA GEFORCE RTX 3090 GG-RTX3090-E24GB/TP Galax GeForce RTX 3090 SG 24GB GDDR6X 320-bit DP*3/HDMI Gainward RTX 3090 Phoenix Gainward RTX 3090 Phoenix GS Inno3D GeForce RTX 3090 iChill X3/X4, 24576 MB GDDR6X Inno3D GeForce RTX 3090 Gaming X3, 24576 MB GDDR6X KFA2 GeForce RTX 3090 SG 24GB GDDR6X 320-bit DP*3/HDMI Palit GeForce RTX™ 3090 GamingPro Palit GeForce RTX™ 3090 GamingPro OC PNY GeForce RTX 3090 XLR8 Gaming EPIC-X RGB, 24576 MB GDDR6X Zotac GeForce RTX 3090 Trinity, 24576 MB GDDR6X
The Alphacool Aurora Plexi GPX-N RTX 3080 FE Eisblock combines style with performance and extensive digital RGB lighting. With experience of over 16 years, Alphacool the ability to create GPU blocks that represent high quality and fantastic performance. This perfectly describes the Aurora Plexi GPX Eisblock More Performance! During the development of the EIsblock Aurora GPX-N RTX 3080 FE graphic card GPU block, we wanted to further increase the performance. The first step was to move the cooler closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, we reduced the thickness of the nickel-plated copper block. Instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also been optimized. All important components such as the voltage transformers and the memory are now significantly better and more effectively cooled by the water. All this ensures a significant increase in cooling performance. New Design! The Eisblock Aurora GPX-N RTX 3080 FE cooler has been designed so that lighting is more important than the previous models. The addressable digital RGB LEDs are embedded directly into the cooling block and run along the entire cooling block. The effect is an illumination of the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular with all edges bevelled. This promotes better light diffusion in the water cooler due to the reflections on these bevels. In addition, they create various contours, which give the Aurora GPX-N RTX 3080 FE Eisblock cooler its very own unique identity. Copper or Aluminium? Of course, Alphacool only uses copper for its water coolers. With the Aurora GPX-N RTX 3080 FE Eisblock, the copper is nickel-plated. Compared to its predecessor models, Alphacool has improved the nickel plating even further, which has considerably increased the acid resistance. This means that the nickel should resist flaking. Why does Alphacool rely on copper instead of aluminium? Simply, copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling. Is There Anything Else New? The Eisblock Aurora GPX-N RTX 3080 FE also relies on the new patented stop fittings, which sit flush with the surface of the terminal. The Alphacool logo now sits in the corner on the top and is also fully illuminated. On the front of the terminal you can see the corresponding names of the compatible graphic card types. Of course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small triangles. They are easily recognizable and fit perfectly into the entire aesthetics of the graphic card water cooler. The Alphacool Aurora GPX-N RTX 3080 FE Plexi is a complete redevelopment of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how flowed into the development and implementation. Note: - This article is delivered with a backplate - The Founders Edition, does NOT correspond to the Reference Design! Technical data: L x W x B: 121,5 x 204,5 x 28,5 mm Material cooler: Nickle plated copper Material top: Plexi Thickness cooling fins: 0,6 mm Threads: 4x G1/4“ Power connector Digital RGB: 3-Pin 5V (0,5A) Graphics Card Configurator: Click here! List of Compatibility: Nvidia graphic cards (Note: RTX 3090/3080 cards will be added after their release) Compatibility list: - NVIDIA GeForce RTX 3080 Founders Edition - NVIDIA GeForce RTX 3080 Ti Founders Edition Download manual PDF: Alphacool Eisblock Aurora Plexi GPX-N RTX 3080 Founders Edition with Backplate Download data sheet PDF: Alphacool Eisblock Aurora Plexi GPX-N RTX 3080 Founders Edition with Backplate
Data radiator L x W x H: 395 x 124 x 30mm (+/- 3%) Material cooling fins: Copper Material chambers: Copper Material cooling channels: Copper Material threads: Brass Material outer housing: stainless steel G 1/4“ threads: 2 x for tubes (+ 1x Fillport G1/4“) For fan size: 120 mm Possible fan assembly: 3 x one-sided / 6 x both-sided Data cooler and pump L x W x H: 130 x 225 x 46 mm Material cooler bottom: Nickel plated copper Material cooler top: PMMA Threads: 2 x G1/4“ Pump type: DC-LT 2 Pump speed: 2600 rpm (+/- 10%) Head of delivery: 0,95 m Maximum flow rate: 75 L/h Voltage: 12V DC Power consumption: 4W MTBF: 50.000 h Data fan Speed: 0 - 2500 RPM Static pressure: 3,17 mm H2O Air flow rate: 119,8 m³/h Bearings: Sleeve bearing Fan connector: 4-Pin PWM Connection Digital aRGB: 3-Pin JST + 3-Pin 5V Dimensions: 120 x 120 x 25 mm Net weight: 187 g Max working temperature: 60 °C
The Alphacool Aurora Plexi GPX-N RTX 3080/3090 Eisblock combines style with performance and extensive digital RGB lighting. With experience of over 16 years, Alphacool the ability to create GPU blocks that represent high quality and fantastic performance. This perfectly describes the Aurora Plexi GPX Eisblock More Performance! During the development of the EIsblock Aurora GPX-N RTX 3080/3090 graphic card GPU block, we wanted to further increase the performance. The first step was to move the cooler closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, we reduced the thickness of the nickel-plated copper block. Instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also been optimized. All important components such as the voltage transformers and the memory are now significantly better and more effectively cooled by the water. All this ensures a significant increase in cooling performance. New Design! The Eisblock Aurora GPX-N RTX 3080/3090 cooler has been designed so that lighting is more important than the previous models. The addressable digital RGB LEDs are embedded directly into the cooling block and run along the entire cooling block. The effect is an illumination of the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular with all edges bevelled. This promotes better light diffusion in the water cooler due to the reflections on these bevels. In addition, they create various contours, which give the Aurora GPX-N RTX 3080/3090 Eisblock cooler its very own unique identity. Copper or Aluminium? Of course, Alphacool only uses copper for its water coolers. With the Aurora GPX-N RTX 3080/3090 Eisblock, the copper is nickel-plated. Compared to its predecessor models, Alphacool has improved the nickel plating even further, which has considerably increased the acid resistance. This means that the nickel should resist flaking. Why does Alphacool rely on copper instead of aluminium? Simply, copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling. Is There Anything Else New? The Eisblock Aurora GPX-N RTX 3080/3090 also relies on the new patented stop fittings, which sit flush with the surface of the terminal. The Alphacool logo now sits in the corner on the top and is also fully illuminated. On the front of the terminal you can see the corresponding names of the compatible graphic card types. Of course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small triangles. They are easily recognizable and fit perfectly into the entire aesthetics of the graphic card water cooler. The Alphacool Aurora GPX-N RTX 3080/3090 Plexi is a complete redevelopment of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how flowed into the development and implementation. Note: - This article is delivered with a backplate - The Founders Edition, does NOT correspond to the Reference Design! Technical data: L x W x B: 152,5 x 266 x 24,6 mm Material cooler: Nickle plated copper Material top: Plexi Thickness cooling fins: 0,6 mm Threads: 4x G1/4“ Power connector Digital RGB: 3-Pin 5V (0,5A) Graphics Card Configurator: Click here! List of Compatibility: Nvidia graphic cards (Note: RTX 3090/3080 cards will be added after their release) Compatibility list: RTX 3080 TI ASUS ROG Strix GeForce RTX 3080 Ti STRIX LC Liquid Cooled ASUS ROG Strix GeForce RTX 3080 Ti Gaming (ROG-STRIX-RTX3080TI-12G-GAMING) ASUS ROG Strix GeForce RTX 3080 Ti Gaming OC (ROG-STRIX-RTX3080TI-O12G-GAMING) RTX 3080 ASUS ROG Strix GeForce RTX 3080, ROG-STRIX-RTX3080-10G-GAMING, 10GB GDDR6X, 2x HDMI, 3x DP (90YV0FA0-M0NM00) ASUS ROG Strix GeForce RTX 3080 OC, ROG-STRIX-RTX3080-O10G-GAMING, 10GB GDDR6X, 2x HDMI, 3x DP (90YV0FA1-M0NM00) RTX 3090 ASUS ROG Strix GeForce RTX 3090 OC, ROG-STRIX-RTX3090-O24G-GAMING, 24GB GDDR6X, 2x HDMI, 3x DP (90YV0F93-M0NM00) Download manual PDF: Alphacool Eisblock Aurora Plexi GPX-N RTX 3090/3080 ROG Strix with Backplate Download data sheet PDF: Alphacool Eisblock Aurora Plexi GPX-N RTX 3090/3080 ROG Strix with Backplate
