Outstanding CPU cooling performance through Water Cooling Solution with 2 x F12 PWM PST fans, 49 mm deep radiator and efficient water pump.Extremely Powerful yet QuietThe Liquid Freezer 120 is not just the most powerful AIO Water Cooler in its class but also the quietest.Most Efficient PumpLatest motor technology and smooth tubes offer top performance at only 2 watt power consumption.Every Unit Performs the SameA concentric CNC guarantees a smooth and even surface. Thus a consistent series production quality is guaranteed and every unit performs exactly the same.Optimal Heat DissipationDual low noise 120 mm fans mounted on opposite sides of the radiator provide a great airflow. First fan pushes air through the radiator, second fan pulls the air through it. Controllable with PST function to adjust the fan speed based on CPU temperature.Quiet and Powerful FanWe fully designed the F12 fan with CFD (Computational Fluid Dynamics) software and optimized it for high airflow. From all fans tested in our air tunnel and anechoic chamber the F12 offers the highest airflow at a given noise level - by marginFits Every Standard CaseWe pack a bag of the leading thermal compound, enough for two applications. The MX-4 guarantees to dissipating heat from your CPU in the quickest and most efficient way.The Liquid Freezer 120 fits in every standard PC case with 120 mm fan option.Long Service LifeThe Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.OtstarveProtsessorVentilaatorJahRadiaatorJahVentilaatori konnektor4-soonelineÜhilduvad torud (väline x sisemine)10.6 x 6.0Ventilaatorite arv2 ventilaator(id)Ventilaatori kiirus (min)500 RPMVentilaatori kiirus (max)1350 RPMMaksimaalne õhuvool74 cfmToetatud protsessoripesadPistikupesa AM2, Pistikupesa AM3, Socket AM3+, Socket FM1, Socket FM2, Socket FM2+Pumba pinge12Ventilaatori pinge12 VVentilaatori vool0,25 ARadiaatori materjalAlumiiniumToote värvMust, ValgeKaal717 gVentilaatori läbimõõt12 cmVentilaatori paksus2,5 cmRadiaatori laius8,2 cmRadiaatori sügavus8,2 cmRadiaatori kõrgus4 cmToru pikkus32,6 cmPakendi laius187 mmPakendi sügavus127 mmPakendi kõrgus157 mmPakendi kaal1,26 kg
Color: black, white, (logo, decorative stripes on the hose casing), silver (decorative strips on the pump housing), semi-transparent plastic (fan blades) Cooler / pump: Dimensions (without hoses): 98 x 53 x 78 mm (W x H x D) Heat sink material: Copper Pump: 800 to 2,000 rpm (PWM-controlled) VRM fan: 40 mm, 1,000 to 3,000 rpm / min (PWM-controlled) Hose diameter: 6 mm (inside), 12.4 mm (outside) Hose length: 450 mm Power consumption: 0.5 to 2.7 W (pump and VRM fan) Fan: 3x 120 mm RGB fans Speed: 200 to 1,800 rpm (PWM controlled) Air flow: approx. 82.91 m³ / h Static pressure: 1.85 mmH2O Bearing: hydrodynamic slide bearing Noise level: approx. 22.5 dB (A) LEDs: 12 RGB LEDs Connections: 1x 4-pin RGB (12VGRB / 0.2 A / 12 V) 1x 4-pin PWM (0.11 A / 12 V) Radiator: Dimensions: 398 x 120 x 38 mm (L x W x H) Material: aluminum Compatibility (socket): Intel: 1200, 115X, 2011-3 *, 2066 *, * Square ILM AMD: AM4 Scope of delivery: 1x Arctic Liquid Freezer II RGB Black 360 - 360 mm 1x Arctic MX-5 thermal paste (0.8 g) screws and mounting brackets for Intel and AMD processors

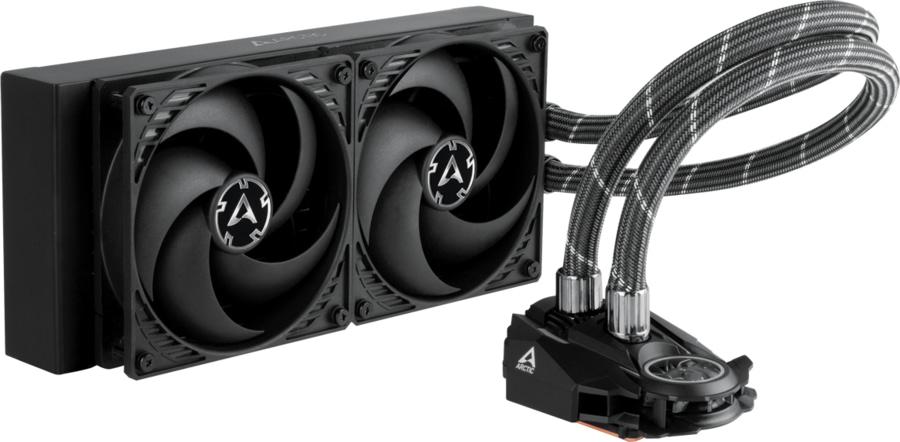

Color: black, white, (logo, decorative stripes on the hose casing), silver (decorative strips on the pump housing), semi-transparent plastic (fan blades) Cooler / pump: Dimensions (without hoses): 98 x 53 x 78 mm (W x H x D) Heat sink material: Copper Pump: 800 to 2,000 rpm (PWM-controlled) VRM fan: 40 mm, 1,000 to 3,000 U / Min (PWM-controlled) Hose diameter: 7.8 mm (inside), 12.4 mm (outside) Hose length: 450 mm Power consumption: 0.5 to 2.7 W (pump and VRM fan) Fan: 2x 120 mm RGB fan Speed: 200 to 1,800 rpm (PWM controlled) Air flow: approx. 82.91 m³ / h Static pressure: 1.85 mmH2O Bearing: hydrodynamic slide bearing Noise level: approx. 22.5 dB (A) LEDs: 12 RGB LEDs Connections: 1x 4-pin RGB (12VGRB / 0.2 A / 12 V) 1x 4-pin PWM (0.11 A / 12 V) Radiator: Dimensions: 277 x 120 x 38 mm (L x W x H) Material: aluminum Compatibility (socket): Intel: 1200, 115X, 2011-3 *, 2066 *, * Square ILM AMD: AM4 Scope of delivery: 1x Arctic Liquid Freezer II RGB Black 240 - 240 mm 1x Arctic MX-5 thermal paste (0.8 g) screws and mounting brackets for Intel and AMD processors
General: Total weight (with fans): 1,977 g Radiator: Dimensions (without fan): 458 x 138 x 38 mm (L x W x H) Dimensions (with fans): 458 x 140 x 63 mm (L x W x H) Material: copper (cooling surface), aluminum (radiator ), Polyamide (hose) Pump: Dimensions: 98 x 78 x 53 mm (L x W x H) 800 - 2,000 rpm (PWM) VRM fan: 1,000 - 3,000 rpm (PWM) Fan: Dimensions: 140 x 140 x 25 Number: 3x Arctic P14 Speed: 200 - 1,700 rpm Airflow: 123.69 m³ / h Static pressure: 2.4 mmH2O Volume: max. Approx. 30 dB (A) Nominal voltage: 12 V nominal current: 0.08 A Connections: 4-pin PWM Hose length: 45 cm Compatibility: AMD socket: AM4, AM3 Intel socket: 1200, 115X, 2011-3, 2066
Intel® Core™ i5 (kuni 5.30 GHz) 14. tuumaline protsessor Arctic Liquid Freezer III 280 vesijahutusega, MSI GeForce RTX™ 4070 Ti GAMING X SLIM WHITE 12G, 32GB operatiivmälu, 2TB M.2 NVMe SSD ja Windows 11 Home.
AMD Ryzen™ 7 (kuni 5.2 GHz) 8. tuumaline protsessor Arctic Liquid Freezer III 360 vesijahutusega, MSI GeForce RTX™ 5080 16G GAMING TRIO OC WHITE, 32GB operatiivmälu, 2TB M.2 NVMe SSD ja Windows 11 Home. GeForce RTX 50 Series GPUs deliver game-changing performance, power transformative AI experiences, and enable creators to complete workflows in record time. RTX IT'S' ON, DLSS 4, Ray Tracing, Reflex 2, AI PC, NVIDIA Studio
