Kasutatakse süvistatud paigaldamiseksDS-KD-8003-IME1/S jaoksPlastikust karp2 tükki Kodu Töötemperatuur -40° C kuni +55° C (-40° F kuni 131° F) Mõõtmed (laius × kõrgus × sügavus)Kaane jaoks 236 × 124 × 4 mm (9,29" x 4,88" x 0,16")Korpuse jaoks 237 × 135 × 56 mm (9,33 × 5,31" × 2,20")" MaterjalKaane: roostevaba terasKorpus: plastist
Integreeritud Mifare kaardilugejamoodul (sagedus: 13,56 MHz)32-bitine kiire protsessorRS-485 ja Wiegand (W26/W34)m OSDP-protokollid.MurtohäireSisseehitatud helisignaal lugemise seisundi kohtaVõrgu uuendamise funktsioonSüsteemProtsessor32-bitineLiidesSissepääsukaitseTugiRS-485TugiWiegandTugi(DIP lüliti abil seadistatav)AutentimineKaardi lugemissagedus13,56 MHzKaardi lugemisvahemik≤ 50 mm (≤1,97")KoduIndikaatorToiteindikaator, olekuindikaatorToide12VDCEnergiatarve≤2 WTöötingimused (temperatuur)-20 °C kuni 65 °C (-4 °F kuni 149 °F)Töötingimused (niiskus)10% kuni 90% (mitte-kondenseeruv)Vee- jatolmukaitseIP65Suurus115mm × 44 mm × 22 mm (4,53" × 1,73" × 0,87")PaigaldamineKinnituskruvidegaseinale; ei toeta korpust.CallSupport

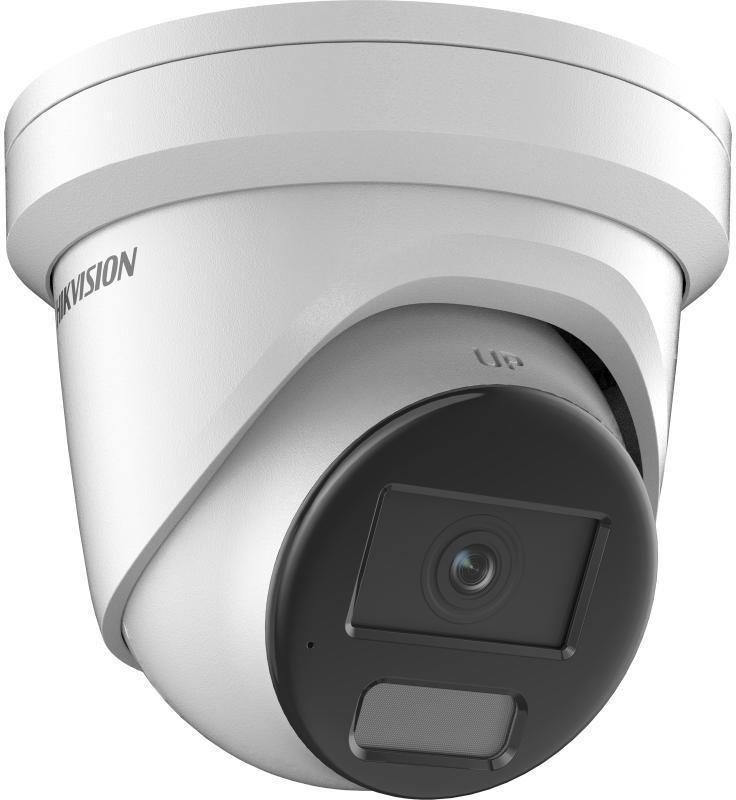

1/1.8” CMOS, 2688 × 1520 @ 30FPS Minimum illumination: 0.0007 lux @ F1.8 (Color, 30 IRE); 0.0004 lux @ F1.8 (B/W, 30 IRE); 0 lux (Illuminator on) True Day/Night with ICR Filter, BLC / HLC / True WDR (140dB), 3D DNR, EIS, Defog Motorized zoom lens 2.7 mm–12.0 mm (115°–47°) Up to 40 meters Smart IR Illumination H.265,H.264,H.264B,H.264H, MJPEG, Smart H.265+/ Smart H.264+, ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec, P2P Micro SD: Max 512GB, 1/1 Audio I/O, 2/1 Alarm I/O, With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc. Dome design, metal shell, IP67, IK10, -30°C~+60°C Power ePoE / PoE / 12VDC, 11.7W max Free IP monitoring software available Type Fixed Dome/HDTV/Megapixel/Outdoor Pixel Resolution 4 Mega Pixel, Focal Length 2.7 mm–12.0 mm IR Illumination, Sensor size 1/1.8” Min. Illumination 0.0007 Lux, Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s 1xAudio-In, 1xAudio-Out 1xRJ45, 2xAlarm In 1xAlarm Out, Supports card capacities up to 512GB Power options PoE/12V, Power supply requirements 12 VDC/24 VAC/PoE (802.3af)/ePoE Environment Outdoor, Operating temperature range –30 °C to +60 °C Dimensions Φ159.1 mm × 118.1 mm
"8 MP IR Fixed-focal Bullet WizSense Network Camera > 8 MP 1/1.8"" CMOS image sensor, excellent low luminance performance and high definition of images. > Outputs max. 8 MP (3840 × 2160) @25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in IR LED, max. IR distance: 30 m. > ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human). > Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. > Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic. > 12 VDC/PoE power supply facilitates installation. > IP67 protection. > SMD 4.0, AI SSA."
> 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 5 MP (2960 × 1668) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in IR LED, and the max. illumination distance is 60 m. > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human). > Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. > Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); supports max. 256 G Micro SD card; built in MIC. > 12 VDC/PoE power supply, easy for installation. > IP67, IK10 (optional) protection. > SMD Plus.
K4P-4CR 4 Channel PoE HD Video Security Kit. 4 Channel PoE HD Video Security Kit K4P-4CR includes 1 PoE NVR and 4 PoE conch security cameras. It integrates such functions as plug and play, 4MP HD image quality, infrared night vision, AI human detection, H.265 high-performance video decoding, HDD bad sector isolation, channel cloud storage and App remote monitoring. It offers one-stop solutions for small video surveillance in such scenarios as single-family houses, shops, restaurants, offices, schools, factories and farms.
