4MP WizColor Vari-focal Bullet WizMind Network Camera > 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image. > Outputs max. 4 MP (2688 × 1520) @25/30 fps. > Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 60 m. > ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Features AI Rule Assist, which automatically creates highly accurate IVS rules based on the Xinghan Vision Models. > With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc. > Alarm: 2 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk. > 12 VDC/PoE power supply; ePoE; 12 VDC power output, and max. current 165mA, easy for installation. > IP67 and IK10 protection; Supports window heating > 2.7 mm-12 mm (98°–48°)

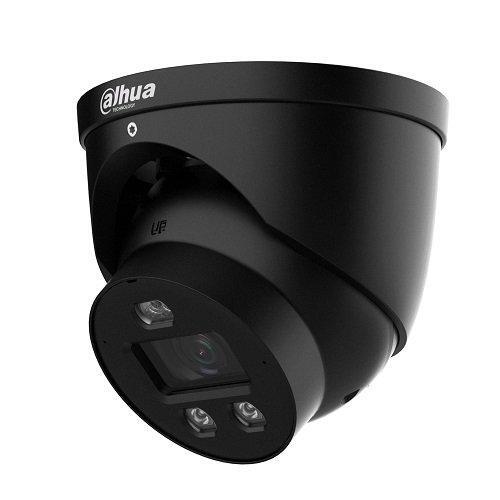

8MP WizColor TiOC PRO Vari-focal Eyeball WizSense Network Camera > 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image. > Outputs max. 8 MP (3840 ×2160)@25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m. > ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human), stay detection, loitering detection, face detection (full image). > Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk. > 12 VDC/PoE power supply. > IP67 protection. > Sound and light alarm (red and blue lights). · SMD 4.0. > Supports AI SSA and one-tap arming and disarming. > SMD area can be set in warm light areas that support triggering alarms > Focal Length: 2.7 mm–12 mm > Field of View: 112°–48°
4MP IR Fixed-focal Dome WizSense Network Camera Outputs max. 4 MP (2688 × 1520) @25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED, max. IR distance: 50 m ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic 12 VDC/PoE power supply facilitates installation IP67, IK10 protection SMD 4.0, AI SSA
6MP WizColor Vari-focal Bullet WizMind Network Camera > 6-MP 1/1.8" CMOS image sensor, low luminance, and high definition image. > Outputs max. 6 MP (3072 × 2048) @25/30 fps. > Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 60 m. > ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Features AI Rule Assist, which automatically creates highly accurate IVS rules based on the Xinghan Vision Models. > With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc. > Alarm: 2 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk. > 12 VDC/PoE power supply; ePoE; 12 VDC power output, and max. current 165mA, easy for installation. > IP67 and IK10 protection; Supports window heating > 2.7 mm-12 mm (98°–48°)
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions. With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance. WizColor Technology Dahua WizColor Technology seamlessly combines with the powerful AI-ISP, large pixel size sensor and large aperture in cameras. This unique integration enables cameras to effortlessly capture high-quality images with vibrant colors during nighttime scenarios, ensuring fine details are preserved and minimizing motion blur. Unlike traditional self-illuminating cameras, Dahua WizColor Technology maximizes the utilization of weak light sources, such as moonlight and city lights reflected in the sky, delivering captivating full-color images of the entire scene. It also ensures that monitoring distances are not compromised at night due to limited illumination ranges, facilitating full-color image capture even over long distances. AI-ISP With AI ISP technology, the camera is able to easily adapt to scenes, producing high quality images that reveal the fine details of targets. SMD Plus With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm. Perimeter Protection With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced. Smart H.265+ & Smart H.264+ With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission. Protection (IP67, Wide Voltage) IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage. 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560×1440 (2560 × 1440) @25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in warm light, and the max. illumination distance is 50 m ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection Supports max. 256 G Micro SD card; built in Mic 12 VDC/PoE power supply, easy for installation
Compatible with AXIS PTZ dome and fixed dome network cameras. Also suitable for installation with conduit connections and cable channels. AXIS T91A6 Pipe Seal is included.TüüpAlusToetatud paigutusUniversaalneMaksimaalne kaal (mahutavus)15 kgToote värvValgeÜhenduvustehnoloogiaJuhtmega ühendatudKaal1,4 kg
- For outdoor and indoor - Adjustable length - Swivel action- Robust and safe - Vandal and corrosion resistant: IK10- and NEMA 4X-ratedAXIS T91B50 Telescopic Ceiling Mount is compatible with all Axis PTZ dome cameras and outdoor models of Axis fixed domes.Easy to install. Easy to adjustAXIS T91B50 mount is easy to install and just as easy to adjust to the perfect length for your installation. Its telescopic design means the pipe component can be regulated between 1 meter (39 in) and 2 meters (79 in) right out-of-the box. In addition, if a longer pipe is needed there is a 30 cm (12 in) and a 100 cm (39 in) optional extension pipe available.Hangs below other installationsAXIS T91B50 mount is designed especially for environments with lighting and ventilation pipes under the ceiling. It let’s you ceiling-mount video cameras to hang beneath other installations. In addition, it will stay perpendicular even when mounted on a sloped ceiling. It is also appropriate for offshore and outdoor applications. Robust and safeAXIS T91B50 features a swivel function that allows it to swing safely out of the way if it is accidently hit by a tall vehicle. It can be secured to the ceiling with wires if you need a particularly sturdy installation. And the cable is routed inside the telescopic pipe for safety and a clean look. In addition, AXIS T91B50 is rated IK10 for vandal resistance and NEMA 4X for corrosion and salt spray resistance.TüüpAlusToetatud paigutusUniversaalneMaksimaalne kaal (mahutavus)10 kgToote värvValgeMaterjalAlumiiniumKaldenurk-45 - 45°ÜhilduvusAXIS P55/P56/Q60/Q61 AXIS M50 AXIS P33 AXIS P32/Q35AXIS M3004-V/M3005-VAXIS M3006-V/M3007-P/ M3007-PVAXIS M3024-LVE/M3025-VE/M3026-VE/M3027-PVE/M3037-PVEAXIS P3707-PEAXIS Q3709-PVEKõrgus2136 mmKaal4,1 kgSertifikaatIEC/EN/UL 60950-1IEC/EN/UL 60950-22EN 50581IEC/EN 62262 IK10NEMA 250 Type 4X

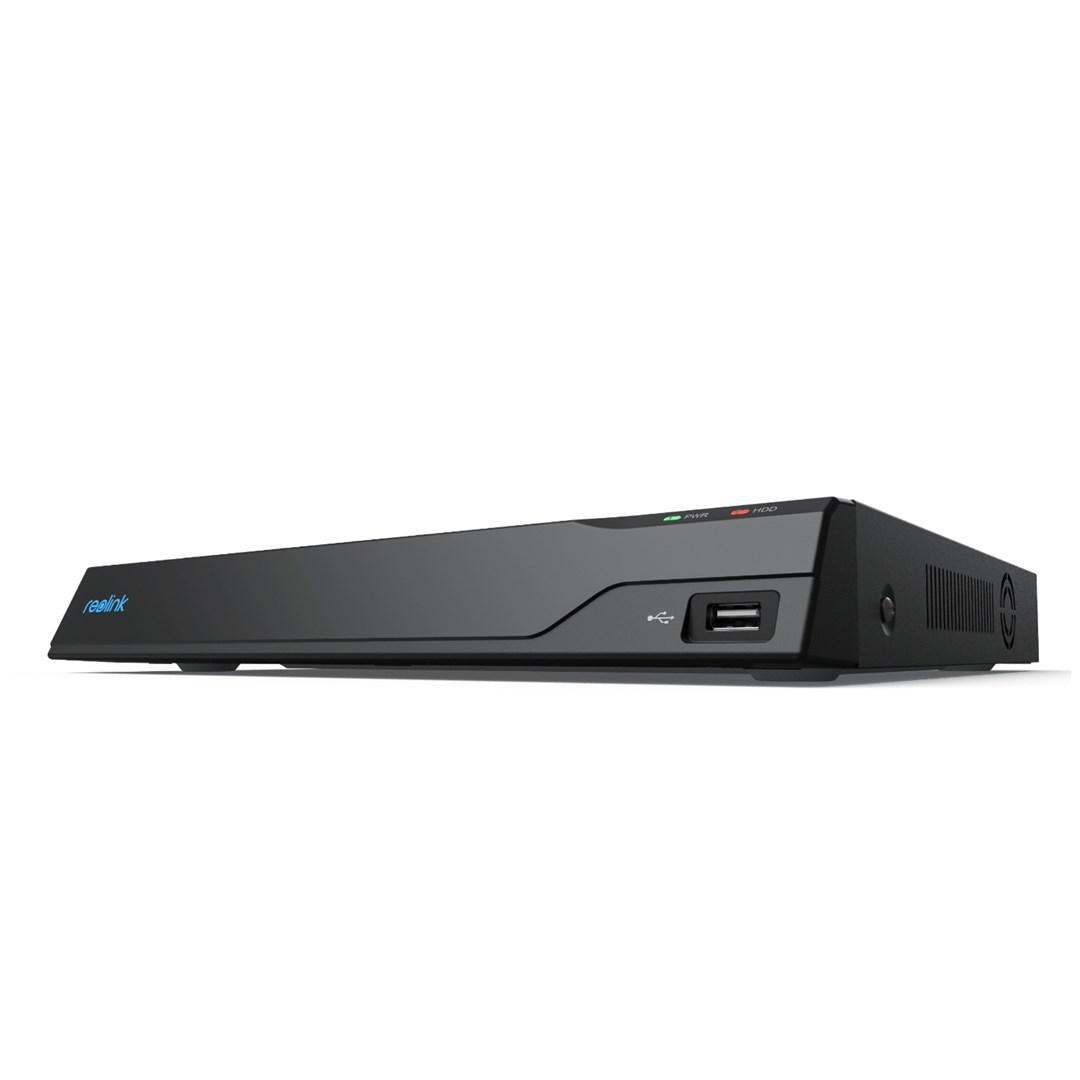

The NVR supports ePoE and EoC technology for use in a broad range of application scenarios. ePoE technology simplifies the network structure of long-range surveillance projects, eliminating the requirement for extra network repeater devices, making the system more reliable and easy to deploy. EoC technology makes it possible to upgrade existing systems to high definition IP surveillance while using existing coax cables. •8 IP channel max, up to 12MP resolution •Max 12MP, Record Rate up to 20Mbps Per Channel •VGA/HDMI up to 3840x2160 output •Dual-stream, 8-ch synchronous playback •2 SATA interface up to 20TB total, Gigabit LAN •PoE: 8 ports (IEEE802.3af/at), All ports support ePoE & EoC, 25.5W for single port, 130W total rated power •No front panel controls, 4/2 alarm I/O, RS232, RS485, 2 USB •1U 19” chassis, mouse included •Free IP monitoring software available •Other brands IP cameras supported: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, etc., ONVIF Version 2.4 conformance
Pro AI series contains Face Detection, Perimeter Protection and People Counting functions. Powered by deep-learning Artificial Intelligence algorithms, significantly improved accuracy. Active Deterrence and Full Color camera are also in this series. Meanwhile, the series features starlight and smart IR technology. This series fully protected from dust and water, certified to IP67 standard. 1/2.7” 5Megapixel progressive scan CMOS, 2592 × 1944 @20FPS Minimum illumination: 0.005 Lux @F1.6 True Day/Night with ICR Filter, BLC / HLC / True WDR (120dB), 3D DNR, Defog 3.6 mm fixed lens (84°) Up to 80 meters Smart IR Illumination H.265+, H.265, H.264+, H.264, H.264B, H.264H, MJPEG, ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P Micro SD: Max 256GB, 1/1 Audio I/O, 1/1 Alarm I/O Smart detection: face image capture. Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering. Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection. Object Abandoned/Missing, Heat Map. Bullet design, metal shell, IP67, IK10, -30°C~+60°C Power ePoE / PoE / 12VDC power, 9.5W max Free IP monitoring software available
