GNSS Antenna Frequency Range: 1575.42-1610 MHz Polarization RHCP Impedance 50 Ω LNA Gain 28 dB LNA Noise Figure < 1.5 dB Supply Voltage 2.7-5 ±0.5 VDC Current Consumption < 15 mA LNA V.S.W.R
FM6300 is real-time advanced tracking terminal with GPS/GLONASS and 3G/GSM connectivity with backup battery, which is able to collect device coordinates and other useful data and transfer them via 3G/GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. Features ► Integrated 3G/GSM module for worldwide usage even in countries where only 3G is available. Controlled switching between 3G and GSM networks.► Easy to mount and fasten firmly► 2 LED indication► Integrated Ni-MH back up battery► Real – Time tracking► External 3G/GSM antenna to ensure steady data stream while object is in low signal coverage areas► External GNSS antenna for high quality tracking at all-time even when object is in complex areas – from closed/urban streets or canyons to dense forests► Smart data acquisition based on:► Time► Distance► Angle► Speed difference (Value taken from GPS or Teltonika Vehicle CAN adapters)► Ignition or any other I/O event► Saving information to Micro SD card, preventing data loss after prolonged time under no 3G/GSM coverage► Sending acquired data via 3G or GPRS (TCP/IP and UDP/IP protocols)► Virtual Odometer► K-Line interface for online Tachograph Vehicle Data transfer► Dual CAN J1939 reading enables DDD data files to be downloaded remotely► J1708 CAN reading interface► RS485 and 2x RS232 interfaces for advanced Fuel Level tracking or usage of external devices such as Garmin, LLS, RFID reader, etc.► Power saving in Sleep or Deep Sleep modes► Authorized driving with up to 500 unique iButton ID list► Time synchronization by NTP (Network Time Protocol) if GPS/GLONASS signal is absent► SMS sending/receiving via GPRS► Time-zone (UTC/GMT) selection► Dynamic SMS events► Teltonika Vehicle Can Adapter GSM / GPRS / 3G features► UMTS/HSPA+ bands:► 800/850/900/1900/2100MHz► GSM/GPRS/EDGE bands:► 850/900/1800/1900MHz► HSPA+ data up to 14.4 Mbps downlink► HSPA+ data up to 5.76 Mbps uplink► EDGE data downlink/uplink up to 236.8 Kbps► UMTS data downlink/uplink up to 384 Kbps► GPRS data downlink/uplink up to 85.6 KbpsGPS/GLONASS► NMEA, GGA, GGL, GSA, GSV, RMC, VTG protocol compatible► 32 channel GPS/GLONASS receiver► -162 dBm tracking Sensitivity Interface► Dual CAN J1939► J1708 CAN► K-Line interface► RS485 and 2x RS232 support► 4 Digital Inputs for object status monitoring► 4 Digital Open-collector Outputs (controlling external relays, LED, buzzers, etc.)► 3 Analog Inputs► 1-wire interface► Ni-Mh 550 mAh internal battery► MicroSD card► 2 status LED► Configuration and firmware update (via FOTA and USB cable)► External GSM antenna (SMA connector) for higher sensitivity► External GNSS antenna (MCX connector) for higher sensitivity
FMB130 is ADVANCED tracker with internal GNSS, GSM antennas, configurable digital/analogue inputs/negative input/impulse inputs, three DOUT outputs, Bluetooth connectivity and backup battery.Teltonika keeps its promise to make IoT Easy. FMB130 device is the first device with negative input possibility. It allows you to save your precious integration time while connecting accessories like vehicle door sensor, alarm button, seatbelt detection and similar sensors or accessories.Additionally, we have integrated possibility to enable Impulse Input for fuel flow meter data reading. Impulse based fuel usage control is much more accurate than different kind of fuel level sensors and enables possibility to be precise if needed. It is perfect solution for high fuel usage machines like cranes, construction vehicles, mining machines, agriculture equipment.We have added one additional Digital Output. Now it is 3 of them in total! It is not surprising that DOUT is the most popular connection type on FMB1 family devices. It`s allows you to use simultaneously 3 different DOUT scenarios like: immobilizer, buzzer, alarm lights, door lock and others.New FMB130 is the first advanced vehicle tracking system with programmable DIN/AIN/Negative/Impulse input. First input has following choices: Digital, Analog, Negative, Impulse. Second input may be Digital or Analog.With these new features you can have one tracking system for much wider range of use cases. Module Name Teltonika TM2500 Technology GSM/GPRS/GNSS/BLUETOOTH GNSS GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS Receiver Tracking: 33 Tracking sensitivity -165 dBM Accuracy < 3 m Hot start < 1 s Warm start < 25 s Cold start < 35 s Cellular Technology GSM 2G bands Quad-band 850 / 900 / 1800 / 1900 MHz Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B Data support SMS (text/data) Power Input voltage range 10 - 30 V DC with overvoltage protection Internal Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh) Bluetooth Specification 4.0 + LE Supported peripherals Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support Physical specification Dimensions 65 x 56,6 x 20,6 mm (L x W x H) Weight 55 g Operating environment Operating temperature (without battery) -40 °C to +85 °C Storage temperature (without battery) -40 °C to +85 °C Operating humidity 5% to 95% non-condensing Ingress Protection Rating IP41 Battery charge temperature -0 °C to +45 °C Battery discharge temperature -20 °C to +60 °C Battery storage temperature -20 °C to +45 °C for 1 month-20 °C to +35 °C for 6 months Interface Digital Inputs 3 Negative Inputs 1 (Digital Input 2) Impulse Inputs 2 (Digital Input 1, Digital Input 2) Digital Outputs 3 Analog Inputs 2 CAN Adapter inputs 1 1-Wire 1 GNSS antenna Internal High Gain GSM antenna Internal High Gain USB 2.0 Micro-USB LED indication 2 status LED lights SIM Micro-SIM + eSIM Memory 128MB internal flash memory Features Sensors Accelerometer Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) SMS Configuration, Events, DOUT control, Debug GPRS commands Configuration, DOUT control, Debug Time Synchronization GNSS, NITZ, NTP Fuel monitoring LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, ODBII dongle Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
FMB020 – the best choice for someone looking for a practical OBD solution.FMB020 is an ultra-small OBDII plug and track device with GNSS GSM and Bluetooth connectivity for a true connected car application. It is a perfect tracker for a wide range of use cases – including fleet management of light commercial vehicles driver log-book insurance telematics (UBI) car rental & leasing and more.FMB020 device supports crash detection functionality that allows the user to be notified when a car crash happens. By using the accelerometer data received during the crash it is possible to visualize the angle and measure the force with which the vehicle was hit. This could prove to be useful in Insurance Telematics solutions. The device supports various Bluetooth Low energy sensors beacons hands-free headsets firmware and configuration updates via Bluetooth. Worldwide version. 2G (GSM): B2 B3 B5 B8. Please check if 2G is supported in your country before order.
FMB140 on ADVANCED GSM/GNSS/Bluetooth jälgimisseade koos integreeritud CAN-andmeprotsessoriga. See on kompaktne 2 in 1 lahendus: GPS-seirejaam ja CAN-adapter sees! Seade võimaldab lugeda CAN-andmeid paljudelt erinevatelt sõidukitelt, sealhulgas kerg- ja elektrisõidukitelt, veoautodelt, bussidelt ja erimasinatelt. Sõltuvalt täpsest tarkvaraversioonist saab FMB140 kasutada täiustatud rakendustes, nagu raskelogistika, veoteenused, kommunaalteenused, kommunaaltransport. Saadaval on kaks varianti, et täita mis tahes ärinõudeid: LV-CAN200 variant - vaikimisi tarkvaraversioon koos LV-CAN200 parameetritega, sealhulgas kütusetase, tarbimine, läbisõidumõõdik, CAN-kiirus, pedaalide asend, Toetatavad sõidukitüübid: kergsõidukid, veoautod, bussid. ALL-CAN300 valik* - täiustatud tarkvaraversioon, mis võimaldab lugeda rohkem parameetreid kui vaikimisi versioon. Saadaval on järgmised lisaparameetrid: AdBlue tase, mootori eluiga, turvapadi. Toetatavad sõidukitüübid: kergsõidukid, veoautod, bussid + elektrisõidukid, põllumajandus-, ehitus-, metsa-, kommunaal- ja erimasinad. FMB140 toetab Bluetooth 4.0 LE protokolli, mis võimaldab ühendada erinevaid väliseid seadmeid ja Bluetooth low energy andureid. Uus seade on telematika jaoks suur edasiminek, mis lihtsustab paigaldamist ja võimaldab paindlikult valida sobiva funktsioonikomplekti ilma riistvara vahetamiseta.
This high gain directional multiband 4G panel antenna is designed for 800MHz (2G / 4G), 900Mhz (4G), 1800MHz (3G / 4G), 2100MHz (4G) and 2600MHz (4G) frequency band and supports all established standards like GSM, 2G, 3G and 4G (800 / 900 / 1800 / 2100 / 2600). The antenna has a gain of up to 14dBi and helps you to improve your 2G, 3G or 4G connection even on long distances. To get the best result the 2G/3G/4G antenna should aligned exactly to the transmitter base station it is connected to. This 4G antenna works perfectly with LTE / 4G devices which have external antenna port. Compatible 4G Routers with external SMA female antenna port:- Telekom Speedport LTE, Speedport LTE II- Telekom Speedbox LTE, SpeedBox LTE II, SpeedBox LTE III- Telekom Speedport Hybrid- Vodafone Easybox 904 LTE- Vodafone B1000, B2000, B3000- Vodafone LTE-Modem- Vodafone LTE-Turbobox LG FM300- O2 LTE Router- FritzBox LTE- Router (except FritzBox LTE 6842)- D-Link DWR-921- Huawei B390, B593, B890- Huawei E5186- Teltonika RUT230, RUT240, RUT550, RUT950, RUT955- Many more... Optionally we offer a pair of antenna cables of type RF240 with a length of 2.5m, 5m, 10m and 20m with N male to SMA male (fits to the most common LTE routers - see list above) connectors. The enclosure of the antenna is made of solid plastic and stainless steel. The robust, light weight and UV resistant construction is weatherproof. This allows to use this 4G antenna for outdoor appliances. The antenna is designed for mast/pole or wall handle installation. A mounting kit (angle bracket and u-clamp for 30-50mm diameter handles) is included. Product specificationsType of AntennaDirectional 2G/3G/4G LTE Antenna (2x2 MIMO)Gain10dBi @ 800-900 MHz, 14dBi @ 1800MHz-2600MHzImpedance50 OhmFrequency Range800-2600MhzVSWRmax 1.6GroundDC-GroundPolarisationHorizontal / Vertical (Linear)Beam Width30° Horizontal, 25° VerticalConnector2 x N femaleApplianceIndoor and OutdoorOperating Temperature-30° to 75° CMax input power50WMax wind load200km/hDimensions47cm x 31cm x 5cmWeight1.5kgColorWhiteDirectivityBi-Directional
This high gain directional multiband 4G panel antenna is designed for 2300-2600MHz (4G) frequency band and supports standards like 4G band 7 (2600Mhz) and band 40 (2300Mhz). The antenna has a gain of up to 17dBi and helps you to improve your 4G connection even on long distances. To get the best result the 4G antenna should aligned exactly to the transmitter base station it is connected to. This 4G antenna works perfectly with LTE / 4G devices which have external antenna port. Compatible 4G Routers with external SMA female antenna port:- Telekom Speedport LTE, Speedport LTE II- Telekom Speedbox LTE, SpeedBox LTE II, SpeedBox LTE III- Telekom Speedport Hybrid- Vodafone Easybox 904 LTE- Vodafone B1000, B2000, B3000- Vodafone LTE-Modem- Vodafone LTE-Turbobox LG FM300- O2 LTE Router- FritzBox LTE- Router (except FritzBox LTE 6842)- D-Link DWR-921- Huawei B390, B593, B890- Huawei E5186- Teltonika RUT230, RUT240, RUT550, RUT950, RUT955- Many more... Optionally we offer a pair of antenna cables of type RF240 with a length of 2.5m, 5m, 10m and 20m with N male to SMA male (fits to the most common LTE routers - see list above) connectors. The enclosure of the antenna is made of solid plastic and stainless steel. The robust, light weight and UV resistant construction is weatherproof. This allows to use this 4G antenna for outdoor appliances. The antenna is designed for mast/pole or wall handle installation. A mounting kit (angle bracket and u-clamp for 30-50mm diameter handles) is included. Product specificationsType of AntennaDirectional 4G LTE Antenna (2x2 MIMO)Gain17dBi @ 2300 MHz, 17dBi @ 2600MHzImpedance50 OhmFrequency Range2300-2600MhzVSWRmax 1.6GroundDC-GroundPolarisationHorizontal / Vertical (Linear)Beam Width35° Horizontal, 32° VerticalConnector2 x N femaleApplianceIndoor and OutdoorOperating Temperature-30° to 75° CMax input power50WMax wind load200km/hDimensions47cm x 25cm x 3cmWeight1.5kgColorWhiteDirectivityBi-Directional
BluetoothIntegrated Bluetooth enables wireless headset and various other Bluetooth sensors connectivity.Make phone calls to Your employee via Bluetooth headset. No unauthorized calls anymore! Be sure that your employee is always safe and uses hands free headset instead of phone!Read records and configure your tracker wirelessly via BluetoothNo inconvenient configuration via SMS or searching for tracker in hard to reach places to connect USB cable.Single push and your device is connected to configurator via Bluetooth.Micro SD cardDon’t lose any records with micro SD card up to 32 GB!FMB010 will store all data in micro SD card when driving in areas where GSM is not available.Advanced antitheft systemPrevent your vehicle from theft with advanced antitheft functionality. Combine Auto Geofencing with new Towing detection functionality.Smart Crash detectionEnsure safety of Your employee with smart Crash detection. Get alarm message immediately after accident, save workers life!

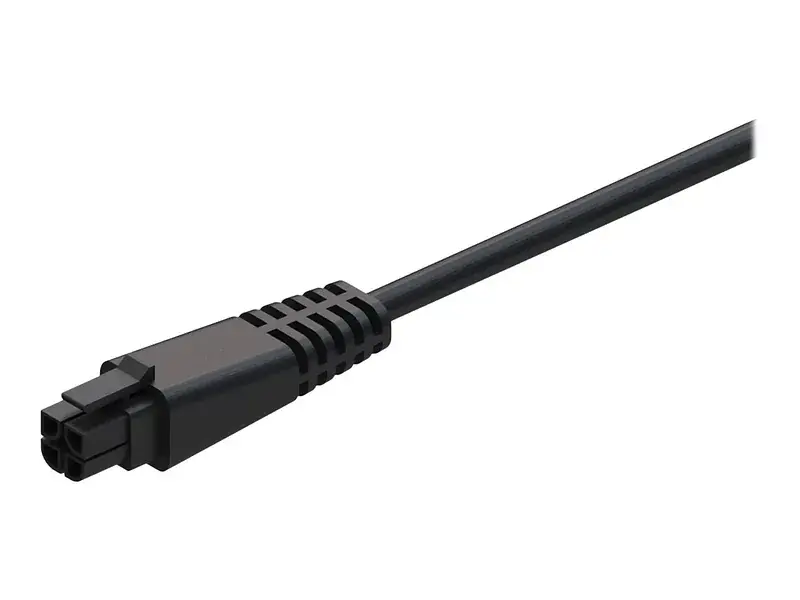

input voltage 9-30 VDC Input connector 12/24 VDC auxiliary power outlet Output connector 4-pin, 3mm pitch Maximum current 2 A Input protection Fuse Cable 2x0.5mm² ,1500 mm LED indicator ✔ RoHS Compliant ✔
Teltonika FMT100 väike, nutikas ja veekindel GNSS SPECIAL tracker Bluetooth-ühendusega ja sisemise varuakuga. Oma klassi suurim sisemine High Gain GNSS-antenn võimaldab paigaldada otse auto aku külge kapoti alla. FMT100 on varustatud spetsiaalse klamberliitmikuga kiireks toitekaabli ühendamiseks autoakuga. Tugev veekindel korpus ja sisseehitatud kiirendusandur koos äärmiselt täpse kokkupõrkejälje funktsiooniga muudavad selle seadme ideaalselt sobivaks kindlustusturu lahenduste jaoks.
FMP100 is Plug and Play tracker with GNSS GSM and Bluetooth connectivity and cigarette lighter power connector for easy installation. It is ideal for light vehicle tracking in applications like courier delivery service car rental & leasing insurance telematics and many other applications where simple integration is a must. Bluetooth 4.0 LE allows this small device to have capabilities of an advanced tracker: various data reading from Bluetooth Low Energy sensors hands-free headset usage firmware and configuration update.
Teltonika TST100 is a kick e-scooter tracking device with integrated GNSS GSM and Bluetooth connectivity designed for sharing applications. TST100 enables the possibility to read information from kick e-scooters ECU and control them remotely. Currently supported models are Segway ES4 & MAX Xiaomi M365 Fitrider T2 with more to be added in the future. High ingress protection rating (IP65) ensures safe outside usage in various weather conditions.
FMB003 – setting a new standard in OBD tracking!FMB003 is an ultra-small plug and play device dedicated to OBD applications of next generation. The main feature of FMB003 is its possibility to read OEM parameters (PIDs) via OBD port. With this device you will be able to read Real Odometer and Real Fuel Level data. What’s more the device comes with the supported vehicles and data list so no need to guess anymore – now you know what data you can read from a specific vehicle.It is a perfect tracker for a wide range of use cases – including fleet management of light commercial vehicles driver log-book insurance telematics (UBI) car rental & leasing and more.The device supports various BLE 4.0 sensors beacons hands-free headsets firmware and configuration updates via Bluetooth thus expanding its already rich set of features.Worldwide version. 2G (GSM): B2 B3 B5 B8. Please check if 2G is supported in your country before order.
TAT100 – brand new Asset Tracking device with internal battery which could last up to 1 year while sending data once per day. TAT100 is a device for asset tracking and additional protection against thefts of valuable goods as well as it could be used in wide range of applications from tools tracking to container tracking. It is a robust waterproof solution with extremely easy mounting. The usage of the battery mainly depends on how long you want to monitor your goods. The device uses low power BlueNRG-232 chipset TM2500 module internal GNSS GSM antennas 2 low self-discharge Li-SOCl2 batteries.Use cases: parcel tracking leasing generators tools tracking container tracking construction equipment monitoring.
