Automatic CO/CPE negotiation reduces configuration timeLink Fault Pass-Through (LFPT) support and interoperable with Turbo Ring and Turbo ChainLED indicators to simplify troubleshootingEasy network management by web browser, Telnet/serial console, Windows utility, ABC-01, and MXview The IEX-402 is an entry-level industrial managed Ethernet extender designed with one 10/100BaseT(X) and one DSL port. The Ethernet extender provides a point-to-point extension over twisted copper wires based on the G.SHDSL or VDSL2 standard. The device supports data rates of up to 15.3 Mbps and a long transmission distance of up to 8 km for G.SHDSL connection; for VDSL2 connections, the data rate supports up to 100 Mbps and a long transmission distance of up to 3 km. The IEX-402 Series is designed for use in harsh environments. The DIN-rail mount, wide operating temperature range (-40 to 75°C), and dual power inputs make it ideal for installation in industrial applications. To simplify configuration, the IEX-402 uses CO/CPE auto-negotiation. By factory default, the device will automatically assign CPE status to one of each pair of IEX devices. In addition, Link Fault Pass-through (LFP) and network redundancy interoperability enhance the reliability and accessibility of communication networks. In addition, advanced managed and monitored functionality through MXview, including a virtual panel, improve the user experience for quick troubleshooting. Additional Features and Benefits Standard G.SHDSL data rate up to 5.7 Mbps, with up to 8 km transmission distance (performance varies by cable quality) Moxa proprietary Turbo Speed connections up to 15.3 Mbps Supports Link Fault Pass-Through (LFP) and Line-swap fast recovery Supports SNMP v1/v2c/v3 for different levels of network management Interoperable with Turbo Ring and Turbo Chain network redundancy Support Modbus TCP protocol for device management and monitoring Compatible with EtherNet/IP and PROFINET protocols for transparent transmission IPv6 Ready
Kiht 3 marsruutimine ühendab mitu LAN-segmenti omavahel. 24 Gigabit Ethernet porti Kuni 24 optilist kiudoptilist ühendust (SFP-pesad) Ventilaatorita, -40 kuni 75 °C töötemperatuurivahemik (T-mudelid) Turbo Ring ja Turbo Chain (taastumisaeg < 20 ms @ 250 lülitit) , ja STP/RSTP/MSTP võrgu redundantsi tagamiseks Eraldatud redundantsed toitesisendid universaalse 110/220 VAC toiteallikaga. Toetab MXstudio't lihtsaks, visualiseeritud tööstusliku võrgu haldamiseks V-ON™ tagab millisekunditasemel multisaateandmete ja videovõrgu taastamiseProtsessiautomaatika ja transpordiautomaatika rakendused ühendavad andmeid, häält ja videot ning nõuavad seetõttu suurt jõudlust ja kõrget töökindlust. IKS-G6824A-seeria on varustatud 24 Gigabit Ethernet-portiga ja toetab 3. kihi marsruutimisfunktsioone, et hõlbustada rakenduste kasutuselevõttu kogu võrgus, mistõttu on need ideaalsed suurte tööstuslike võrkude jaoks. IKS-G6824A täielik Gigabit-võimekus suurendab ribalaiust, et tagada suur jõudlus ja võime edastada kiiresti suuri video-, kõne- ja andmemahte üle võrgu. Lülitid toetavad Turbo Ring, Turbo Chain ja RSTP/STP redundantsitehnoloogiat ning on ventilaatorita ja varustatud isoleeritud redundantse toiteallikaga, et suurendada süsteemi töökindlust ja võrgu magistraalvõrgu kättesaadavust.Täiendavad omadused ja eelisedTACACS+, SNMPv3, IEEE 802.1X, HTTPS ja SSH võrgu turvalisuse suurendamiseks.Juurdepääsuloetelud (ACL) suurendavad võrguhalduse paindlikkust ja turvalisustSNMPv1/v2c/v3 võrguhalduse eri tasemete jaoksRMON võrgu ennetavaks ja tõhusaks jälgimiseksribalaiuse haldamine, et vältida võrgu ettearvamatut seisundit.Pordi lukustamise funktsioon MAC-aadressil põhineva volitamata juurdepääsu blokeerimiseksPordi peegeldamine veebipõhiseks silumiseksAutomaatne hoiatus erandite kaupa e-posti ja relee väljundi kauduDigitaalsed sisendid andurite ja häiresignaalide integreerimiseks IP-võrkudega3. kihi lülitusfunktsioon andmete ja teabe liikumiseks üle võrkudekäsurea liides (CLI) peamiste hallatavate funktsioonide kiireks konfigureerimiseksToetab täiustatud VLAN-funktsioone koos Q-in-Q märgistusegaDHCP Option 82 IP-aadressi määramiseks erinevate põhimõtetegaToetab EtherNet/IP, PROFINET ja Modbus TCP protokolle seadmete haldamiseks ja jälgimiseks.IGMP snooping ja GMRP multisaate liikluse filtreerimiseksIEEE 802.1Q VLAN ja GVRP protokoll võrgu planeerimise lihtsustamiseksQoS (IEEE 802.1p/1Q ja TOS/DiffServ), et suurendada determinismi.Redundantne, kaks vahelduvvoolu sisenditPort Trunking optimaalse ribalaiuse kasutamiseksInput/Output InterfaceAlarm Contact Channels Relay output with current carrying capacity of 2 A @ 30 VDCDigital Inputs +13 to +30 V for state 1-30 to +1 V for state 0Max. input current: 8 mAEthernet Interface10/100/1000BaseT(X) Ports (RJ45 connector) IKS-G6824A-4GTXSFP-HV-HV Series: 20IKS-G6824A-8GSFP-4GTXSFP-HV-HV Series: 12100/1000BaseSFP Ports IKS-G6824A-8GSFP-4GTXSFP-HV-HV Series: 8IKS-G6824A-20GSFP-4GTXSFP-HV-HV Series: 20Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) 4Standards IEEE 802.1D-2004 for Spanning Tree ProtocolIEEE 802.1p for Class of ServiceIEEE 802.1Q for VLAN TaggingIEEE 802.1s for Multiple Spanning Tree ProtocolIEEE 802.1w for Rapid Spanning Tree ProtocolIEEE 802.1X for authenticationIEEE 802.3 for 10BaseTIEEE 802.3ab for 1000BaseT(X)IEEE 802.3ad for Port Trunk with LACPIEEE 802.3u for 100BaseT(X) and 100BaseFXIEEE 802.3x for flow controlIEEE 802.3z for 1000BaseSX/LX/LHX/ZXEthernet Software FeaturesManagement ARPBack Pressure Flow ControlBOOTPDDMDHCP Option 66/67/82DHCP Server/ClientFlow controlIPv4LLDPPort MirrorRARPRMONSCPSMTPSNMP InformSNMPv1/v2c/v3SyslogTelnetTFTPFilter 802.1QBPDU FilterBPDU GuardGMRPGVRPIGMP v1/v2/v3QinQ VLANMulticast Routing DVMRPPIM-DMPIM-SMPIM-SSMRedundancy Protocols Link AggregationMRPMSTPRSTPTurbo ChainTurbo Ring v1/v2V-ONRouting Redundancy VRRPSecurity Access control listBroadcast storm protectionHTTPS/SSLMAB authenticationSticky MACNTP authenticationPort LockRADIUSSSHTACACS+Time Management NTP Server/ClientSNTPUnicast Routing OSPFRIPV1/V2Static RouteIndustrial Protocols EtherNet/IPModbus TCPPROFINETMIB Bridge MIBEthernet-like MIBMIB-IIP-BRIDGE MIBQ-BRIDGE MIBRMON MIB Groups 1, 2, 3, 9RSTP MIBSwitch PropertiesDRAM 128 MBFlash 16 MBIGMP Groups 4096Jumbo Frame Size 9.6 KBMAC Table Size 16 KMax. No. of VLANs 256Packet Buffer Size 12 MbitsVLAN ID Range VID 1 to 4094Priority Queues 8USB InterfaceStorage Port USB Type ASerial InterfaceConsole Port USB-serial console (Type B connector)Power ParametersInput Voltage 110 to 240 VACRedundant dual inputsOperating Voltage 85 to 264 VACInput Current Max. 0.66 A @ 110 VACMax. 0.39 A @ 220 VACPower Consumption Max. 37.83 W @ 110 VACMax. 40.15 W @ 220 VACOverload Current Protection SupportedReverse Polarity Protection SupportedPhysical CharacteristicsIP Rating IP30Dimensions 440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)Weight 5100 g (11.25 lb)Installation Rack mountingEnvironmental LimitsOperating Temperature Standard Models: -10 to 60°C (14 to 140°F)Wide Temp. Models: -40 to 75°C (-40 to 167°F)Storage Temperature (package included) -40 to 75°C (-40 to 167°F)Ambient Relative Humidity 5 to 95% (non-condensing)Standards and CertificationsSafety UL 62368-1IEC 62368-1UL 61010-2-201EN 61010-2-201EMC EN 55032/35EN 61000-6-2/-6-4EMI CISPR 32, FCC Part 15B Class AEMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kVIEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/mIEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kVIEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kVIEC 61000-4-6 CS: 10 VIEC 61000-4-8 PFMFRailway EN 50121-4Traffic Control NEMA TS2Freefall IEC 60068-2-32Shock IEC 60068-2-27Vibration IEC 60068-2-6MTBFTime IKS-G6824A-4GTXSFP-HV-HV Series: 697,302 hrsIKS-G6824A-8GSFP-4GTXSFP-HV-HV Series: 648,494 hrsIKS-G6824A-20GSFP-4GTXSFP-HV-HV Series: 670,194 hrsStandards Telcordia (Bellcore), GBWarrantyWarranty Period 5 years
Kiht 3 marsruutimine ühendab mitu LAN-segmenti omavahel. 24 Gigabit Ethernet porti Kuni 24 optilist kiudoptilist ühendust (SFP-pesad) Ventilaatorita, -40 kuni 75 °C töötemperatuurivahemik (T-mudelid) Turbo Ring ja Turbo Chain (taastumisaeg < 20 ms @ 250 lülitit) , ja STP/RSTP/MSTP võrgu redundantsi tagamiseks Eraldatud redundantsed toitesisendid universaalse 110/220 VAC toiteallikaga. Toetab MXstudio't lihtsaks, visualiseeritud tööstusliku võrgu haldamiseks V-ON™ tagab millisekunditasemel multisaateandmete ja videovõrgu taastamiseProtsessiautomaatika ja transpordiautomaatika rakendused ühendavad andmeid, häält ja videot ning nõuavad seetõttu suurt jõudlust ja kõrget töökindlust. IKS-G6824A-seeria on varustatud 24 Gigabit Ethernet-portiga ja toetab 3. kihi marsruutimisfunktsioone, et hõlbustada rakenduste kasutuselevõttu kogu võrgus, mistõttu on need ideaalsed suurte tööstuslike võrkude jaoks. IKS-G6824A täielik Gigabit-võimekus suurendab ribalaiust, et tagada suur jõudlus ja võime edastada kiiresti suuri video-, kõne- ja andmemahte üle võrgu. Lülitid toetavad Turbo Ring, Turbo Chain ja RSTP/STP redundantsitehnoloogiat ning on ventilaatorita ja varustatud isoleeritud redundantse toiteallikaga, et suurendada süsteemi töökindlust ja võrgu magistraalvõrgu kättesaadavust.Täiendavad omadused ja eelisedTACACS+, SNMPv3, IEEE 802.1X, HTTPS ja SSH võrgu turvalisuse suurendamiseks.Juurdepääsuloetelud (ACL) suurendavad võrguhalduse paindlikkust ja turvalisustSNMPv1/v2c/v3 võrguhalduse eri tasemete jaoksRMON võrgu ennetavaks ja tõhusaks jälgimiseksribalaiuse haldamine, et vältida võrgu ettearvamatut seisundit.Pordi lukustamise funktsioon MAC-aadressil põhineva volitamata juurdepääsu blokeerimiseksPordi peegeldamine veebipõhiseks silumiseksAutomaatne hoiatus erandite kaupa e-posti ja relee väljundi kauduDigitaalsed sisendid andurite ja häiresignaalide integreerimiseks IP-võrkudega3. kihi lülitusfunktsioon andmete ja teabe liikumiseks üle võrkudekäsurea liides (CLI) peamiste hallatavate funktsioonide kiireks konfigureerimiseksToetab täiustatud VLAN-funktsioone koos Q-in-Q märgistusegaDHCP Option 82 IP-aadressi määramiseks erinevate põhimõtetegaToetab EtherNet/IP, PROFINET ja Modbus TCP protokolle seadmete haldamiseks ja jälgimiseks.IGMP snooping ja GMRP multisaate liikluse filtreerimiseksIEEE 802.1Q VLAN ja GVRP protokoll võrgu planeerimise lihtsustamiseksQoS (IEEE 802.1p/1Q ja TOS/DiffServ), et suurendada determinismi.Redundantne, kaks vahelduvvoolu sisenditPort Trunking optimaalse ribalaiuse kasutamiseksInput/Output InterfaceAlarm Contact Channels Relay output with current carrying capacity of 2 A @ 30 VDCDigital Inputs +13 to +30 V for state 1-30 to +1 V for state 0Max. input current: 8 mAEthernet Interface10/100/1000BaseT(X) Ports (RJ45 connector) IKS-G6824A-4GTXSFP-HV-HV Series: 20IKS-G6824A-8GSFP-4GTXSFP-HV-HV Series: 12100/1000BaseSFP Ports IKS-G6824A-8GSFP-4GTXSFP-HV-HV Series: 8IKS-G6824A-20GSFP-4GTXSFP-HV-HV Series: 20Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) 4Standards IEEE 802.1D-2004 for Spanning Tree ProtocolIEEE 802.1p for Class of ServiceIEEE 802.1Q for VLAN TaggingIEEE 802.1s for Multiple Spanning Tree ProtocolIEEE 802.1w for Rapid Spanning Tree ProtocolIEEE 802.1X for authenticationIEEE 802.3 for 10BaseTIEEE 802.3ab for 1000BaseT(X)IEEE 802.3ad for Port Trunk with LACPIEEE 802.3u for 100BaseT(X) and 100BaseFXIEEE 802.3x for flow controlIEEE 802.3z for 1000BaseSX/LX/LHX/ZXEthernet Software FeaturesManagement ARPBack Pressure Flow ControlBOOTPDDMDHCP Option 66/67/82DHCP Server/ClientFlow controlIPv4LLDPPort MirrorRARPRMONSCPSMTPSNMP InformSNMPv1/v2c/v3SyslogTelnetTFTPFilter 802.1QBPDU FilterBPDU GuardGMRPGVRPIGMP v1/v2/v3QinQ VLANMulticast Routing DVMRPPIM-DMPIM-SMPIM-SSMRedundancy Protocols Link AggregationMRPMSTPRSTPTurbo ChainTurbo Ring v1/v2V-ONRouting Redundancy VRRPSecurity Access control listBroadcast storm protectionHTTPS/SSLMAB authenticationSticky MACNTP authenticationPort LockRADIUSSSHTACACS+Time Management NTP Server/ClientSNTPUnicast Routing OSPFRIPV1/V2Static RouteIndustrial Protocols EtherNet/IPModbus TCPPROFINETMIB Bridge MIBEthernet-like MIBMIB-IIP-BRIDGE MIBQ-BRIDGE MIBRMON MIB Groups 1, 2, 3, 9RSTP MIBSwitch PropertiesDRAM 128 MBFlash 16 MBIGMP Groups 4096Jumbo Frame Size 9.6 KBMAC Table Size 16 KMax. No. of VLANs 256Packet Buffer Size 12 MbitsVLAN ID Range VID 1 to 4094Priority Queues 8USB InterfaceStorage Port USB Type ASerial InterfaceConsole Port USB-serial console (Type B connector)Power ParametersInput Voltage 110 to 240 VACRedundant dual inputsOperating Voltage 85 to 264 VACInput Current Max. 0.66 A @ 110 VACMax. 0.39 A @ 220 VACPower Consumption Max. 37.83 W @ 110 VACMax. 40.15 W @ 220 VACOverload Current Protection SupportedReverse Polarity Protection SupportedPhysical CharacteristicsIP Rating IP30Dimensions 440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)Weight 5100 g (11.25 lb)Installation Rack mountingEnvironmental LimitsOperating Temperature Standard Models: -10 to 60°C (14 to 140°F)Wide Temp. Models: -40 to 75°C (-40 to 167°F)Storage Temperature (package included) -40 to 75°C (-40 to 167°F)Ambient Relative Humidity 5 to 95% (non-condensing)Standards and CertificationsSafety UL 62368-1IEC 62368-1UL 61010-2-201EN 61010-2-201EMC EN 55032/35EN 61000-6-2/-6-4EMI CISPR 32, FCC Part 15B Class AEMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kVIEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/mIEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kVIEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kVIEC 61000-4-6 CS: 10 VIEC 61000-4-8 PFMFRailway EN 50121-4Traffic Control NEMA TS2Freefall IEC 60068-2-32Shock IEC 60068-2-27Vibration IEC 60068-2-6MTBFTime IKS-G6824A-4GTXSFP-HV-HV Series: 697,302 hrsIKS-G6824A-8GSFP-4GTXSFP-HV-HV Series: 648,494 hrsIKS-G6824A-20GSFP-4GTXSFP-HV-HV Series: 670,194 hrsStandards Telcordia (Bellcore), GBWarrantyWarranty Period 5 years
Kiht 3 marsruutimine ühendab mitu LAN-segmenti omavahel. 24 Gigabit Ethernet porti Kuni 24 optilist kiudoptilist ühendust (SFP-pesad) Ventilaatorita, -40 kuni 75 °C töötemperatuurivahemik (T-mudelid) Turbo Ring ja Turbo Chain (taastumisaeg < 20 ms @ 250 lülitit) , ja STP/RSTP/MSTP võrgu redundantsi tagamiseks Eraldatud redundantsed toitesisendid universaalse 110/220 VAC toiteallikaga. Toetab MXstudio't lihtsaks, visualiseeritud tööstusliku võrgu haldamiseks V-ON™ tagab millisekunditasemel multisaateandmete ja videovõrgu taastamiseProtsessiautomaatika ja transpordiautomaatika rakendused ühendavad andmeid, häält ja videot ning nõuavad seetõttu suurt jõudlust ja kõrget töökindlust. IKS-G6824A-seeria on varustatud 24 Gigabit Ethernet-portiga ja toetab 3. kihi marsruutimisfunktsioone, et hõlbustada rakenduste kasutuselevõttu kogu võrgus, mistõttu on need ideaalsed suurte tööstuslike võrkude jaoks. IKS-G6824A täielik Gigabit-võimekus suurendab ribalaiust, et tagada suur jõudlus ja võime edastada kiiresti suuri video-, kõne- ja andmemahte üle võrgu. Lülitid toetavad Turbo Ring, Turbo Chain ja RSTP/STP redundantsitehnoloogiat ning on ventilaatorita ja varustatud isoleeritud redundantse toiteallikaga, et suurendada süsteemi töökindlust ja võrgu magistraalvõrgu kättesaadavust.Täiendavad omadused ja eelisedTACACS+, SNMPv3, IEEE 802.1X, HTTPS ja SSH võrgu turvalisuse suurendamiseks.Juurdepääsuloetelud (ACL) suurendavad võrguhalduse paindlikkust ja turvalisustSNMPv1/v2c/v3 võrguhalduse eri tasemete jaoksRMON võrgu ennetavaks ja tõhusaks jälgimiseksribalaiuse haldamine, et vältida võrgu ettearvamatut seisundit.Pordi lukustamise funktsioon MAC-aadressil põhineva volitamata juurdepääsu blokeerimiseksPordi peegeldamine veebipõhiseks silumiseksAutomaatne hoiatus erandite kaupa e-posti ja relee väljundi kauduDigitaalsed sisendid andurite ja häiresignaalide integreerimiseks IP-võrkudega3. kihi lülitusfunktsioon andmete ja teabe liikumiseks üle võrkudekäsurea liides (CLI) peamiste hallatavate funktsioonide kiireks konfigureerimiseksToetab täiustatud VLAN-funktsioone koos Q-in-Q märgistusegaDHCP Option 82 IP-aadressi määramiseks erinevate põhimõtetegaToetab EtherNet/IP, PROFINET ja Modbus TCP protokolle seadmete haldamiseks ja jälgimiseks.IGMP snooping ja GMRP multisaate liikluse filtreerimiseksIEEE 802.1Q VLAN ja GVRP protokoll võrgu planeerimise lihtsustamiseksQoS (IEEE 802.1p/1Q ja TOS/DiffServ), et suurendada determinismi.Redundantne, kaks vahelduvvoolu sisenditPort Trunking optimaalse ribalaiuse kasutamiseksInput/Output InterfaceAlarm Contact Channels Relay output with current carrying capacity of 2 A @ 30 VDCDigital Inputs +13 to +30 V for state 1-30 to +1 V for state 0Max. input current: 8 mAEthernet Interface10/100/1000BaseT(X) Ports (RJ45 connector) IKS-G6824A-4GTXSFP-HV-HV Series: 20IKS-G6824A-8GSFP-4GTXSFP-HV-HV Series: 12100/1000BaseSFP Ports IKS-G6824A-8GSFP-4GTXSFP-HV-HV Series: 8IKS-G6824A-20GSFP-4GTXSFP-HV-HV Series: 20Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) 4Standards IEEE 802.1D-2004 for Spanning Tree ProtocolIEEE 802.1p for Class of ServiceIEEE 802.1Q for VLAN TaggingIEEE 802.1s for Multiple Spanning Tree ProtocolIEEE 802.1w for Rapid Spanning Tree ProtocolIEEE 802.1X for authenticationIEEE 802.3 for 10BaseTIEEE 802.3ab for 1000BaseT(X)IEEE 802.3ad for Port Trunk with LACPIEEE 802.3u for 100BaseT(X) and 100BaseFXIEEE 802.3x for flow controlIEEE 802.3z for 1000BaseSX/LX/LHX/ZXEthernet Software FeaturesManagement ARPBack Pressure Flow ControlBOOTPDDMDHCP Option 66/67/82DHCP Server/ClientFlow controlIPv4LLDPPort MirrorRARPRMONSCPSMTPSNMP InformSNMPv1/v2c/v3SyslogTelnetTFTPFilter 802.1QBPDU FilterBPDU GuardGMRPGVRPIGMP v1/v2/v3QinQ VLANMulticast Routing DVMRPPIM-DMPIM-SMPIM-SSMRedundancy Protocols Link AggregationMRPMSTPRSTPTurbo ChainTurbo Ring v1/v2V-ONRouting Redundancy VRRPSecurity Access control listBroadcast storm protectionHTTPS/SSLMAB authenticationSticky MACNTP authenticationPort LockRADIUSSSHTACACS+Time Management NTP Server/ClientSNTPUnicast Routing OSPFRIPV1/V2Static RouteIndustrial Protocols EtherNet/IPModbus TCPPROFINETMIB Bridge MIBEthernet-like MIBMIB-IIP-BRIDGE MIBQ-BRIDGE MIBRMON MIB Groups 1, 2, 3, 9RSTP MIBSwitch PropertiesDRAM 128 MBFlash 16 MBIGMP Groups 4096Jumbo Frame Size 9.6 KBMAC Table Size 16 KMax. No. of VLANs 256Packet Buffer Size 12 MbitsVLAN ID Range VID 1 to 4094Priority Queues 8USB InterfaceStorage Port USB Type ASerial InterfaceConsole Port USB-serial console (Type B connector)Power ParametersInput Voltage 110 to 240 VACRedundant dual inputsOperating Voltage 85 to 264 VACInput Current Max. 0.66 A @ 110 VACMax. 0.39 A @ 220 VACPower Consumption Max. 37.83 W @ 110 VACMax. 40.15 W @ 220 VACOverload Current Protection SupportedReverse Polarity Protection SupportedPhysical CharacteristicsIP Rating IP30Dimensions 440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)Weight 5100 g (11.25 lb)Installation Rack mountingEnvironmental LimitsOperating Temperature Standard Models: -10 to 60°C (14 to 140°F)Wide Temp. Models: -40 to 75°C (-40 to 167°F)Storage Temperature (package included) -40 to 75°C (-40 to 167°F)Ambient Relative Humidity 5 to 95% (non-condensing)Standards and CertificationsSafety UL 62368-1IEC 62368-1UL 61010-2-201EN 61010-2-201EMC EN 55032/35EN 61000-6-2/-6-4EMI CISPR 32, FCC Part 15B Class AEMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kVIEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/mIEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kVIEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kVIEC 61000-4-6 CS: 10 VIEC 61000-4-8 PFMFRailway EN 50121-4Traffic Control NEMA TS2Freefall IEC 60068-2-32Shock IEC 60068-2-27Vibration IEC 60068-2-6MTBFTime IKS-G6824A-4GTXSFP-HV-HV Series: 697,302 hrsIKS-G6824A-8GSFP-4GTXSFP-HV-HV Series: 648,494 hrsIKS-G6824A-20GSFP-4GTXSFP-HV-HV Series: 670,194 hrsStandards Telcordia (Bellcore), GBWarrantyWarranty Period 5 years

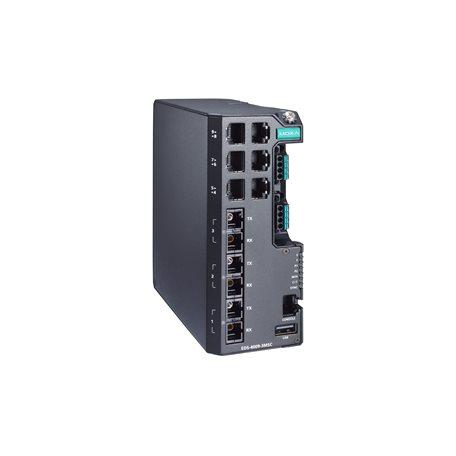

EDS-4009-seeria on 9-portiline hallatav Fast Ethernet-kommutaatorite seeria, millel on võimalus kasutada kolme 100M ST/SC kiudoptilist porti.Redundantsed Ethernet-tehnoloogiad, nagu Turbo Ring, Turbo Chain ja RSTP/STP, suurendavad teie süsteemi töökindlust ja parandavadteie võrgu magistraalvõrgu kättesaadavust. EDS-4009-seeria on loodud spetsiaalselt nõudlike rakenduste jaoks, nagu video- ja protsessirakendused.seire, ITS- ja DCS-süsteemid, mis kõik saavad kasu skaleeritavast magistraalvõrgustikust.EDS-4009-seeria vastab IEC 62443-4-2 ja IEC 62443-4-1 tööstusliku küberturvalisuse sertifikaatidele, mis hõlmavad nii tooteturvalisust kui ka turvalise arenduse elutsükli nõudeid, aidates meie klientidel täita turvalise tööstusvõrgu nõuetele vastavuse nõudeid.disainile.Ethernet Interface10/100BaseT(X) Ports (RJ45 connector)6Auto negotiation speedFull/Half duplex modeAuto MDI/MDI-X connection100BaseFX Ports (multi-mode SC connector)3StandardsIEEE 802.3 for 10BaseTIEEE 802.3u for 100BaseT(X) and 100BaseFXIEEE 802.3x for flow controlIEEE 802.3ad for Port Trunk with LACPIEEE 802.1Q for VLAN TaggingIEEE 802.1D-2004 for Spanning Tree ProtocolIEEE 802.1w for Rapid Spanning Tree ProtocolIEEE 802.1p for Class of ServiceIEEE 802.1X for authenticationOptical FiberEthernet Software FeaturesIndustrial ProtocolsEtherNet/IPModbus TCPPROFINET IO DeviceManagementIPv4/IPv6Flow controlBack Pressure Flow ControlDHCP Server/ClientARPRARPLLDPFiber checkPort Mirroring (SPAN, RSPAN)Linkup DelaySMTPSNMP TrapSNMP InformSNMPv1/v2c/v3RMONTFTPSFTPHTTPHTTPSTelnetSyslogPrivate MIBFilterGMRPGVRPGARP802.1Q VLANIGMP Snooping v1/v2/v3IGMP QuerierRedundancy ProtocolsSTPRSTPTurbo Ring v2Turbo ChainRing CouplingDual-HomingLink AggregationMRPMSTPSecurityBroadcast storm protectionRate LimitTrust access controlStatic Port LockMAC StickyHTTPS/SSLSSHRADIUSTACACS+Access control listLogin and Password PolicyDHCP SnoopingTime ManagementSNTPNTP Server/ClientNTP AuthenticationIEEE 1588v2 PTP (hardware-based)Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017ProtocolsIPv4/IPv6TCP/IPUDPICMPARPRARPTFTPDNSNTP ClientDHCP ServerDHCP Client802.1XQoSHTTPSHTTPTelnetSMTPSNMPv1/v2c/v3RMONSyslogMIBP-BRIDGE MIBQ-BRIDGE MIBIEEE8021-SPANNING-TREE-MIBIEEE8021-PAE-MIBIEEE8023-LAG-MIBLLDP-EXT-DOT1-MIBLLDP-EXT-DOT3-MIBSNMPv2-MIBRMON MIB Groups 1, 2, 3, 9Switch PropertiesMAC Table Size16 KJumbo Frame Size9.216 KBMax. No. of VLANs256VLAN ID RangeVID 1 to 4094IGMP Groups512Priority Queues4Packet Buffer Size1 MBLED InterfaceLED IndicatorsPWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNCSerial InterfaceConsole PortRS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)USB InterfaceUSB ConnectorUSB Type A (Reserved)Input/Output InterfaceAlarm Contact Channels1, Relay output with current carrying capacity of 1 A @ 24 VDCDigital Input Channels1Digital Inputs+13 to +30 V for state 1-30 to +3 V for state 0Max. input current: 8 mAButtonsReset buttonDIP Switch ConfigurationDIP SwitchesTurbo Ring, Master, Coupler, ReservePower ParametersConnection2 removable 4-contact terminal block(s)Pre-installed Power ModulePWR-100–LVNoteThe EDS-4009 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.For example:EDS-4009-T + PWR-100–LV = EDS-4009-LV-TEDS-4009-T + PWR-105-HV-I = EDS-4009-HV-TIf you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-4009–LV-Twith the PWR-105–HV-I, refer to the specifications of the EDS-4009–HV-T.Input Voltage12/24/48 VDCRedundant dual inputsOperating Voltage9.6 to 60 VDCInput Current12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 APower Consumption (Max.)9.51 WOverload Current ProtectionSupportedReverse Polarity ProtectionSupportedPhysical CharacteristicsIP RatingIP40Dimensions55 x 140 x 120 mm (2.17 x 5.51 x 4.72 in)Weight821.5 g (1.81 lb)InstallationDIN-rail mountingWall mounting (with optional kit)HousingMetalEnvironmental LimitsOperating Temperature-40 to 75°C (-40 to 167°F)Storage Temperature (package included)-40 to 85°C (-40 to 185°F)Ambient Relative Humidity5 to 95% (non-condensing)Standards and CertificationsIndustrial CybersecurityIEC 62443-4-1IEC 62443-4-2SafetyUL 61010-2-201EN 62368-1 (LVD)EMCEN 55032/35EN 61000-6-2/-6-4EMICISPR 32, FCC Part 15B Class AEMSIEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kVIEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/mIEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kVIEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kVIEC 61000-4-6 CS: 10 VIEC 61000-4-8 PFMFMaritimeLRABSDNVNKVibrationIEC 60068-2-6ShockIEC 60068-2-27FreefallIEC 60068-2-32RailwayEN 50121-4Traffic ControlNEMA TS2Power SubstationIEC 61850-3IEEE 1613 Class 1Hazardous LocationsIECExClass I Division 2ATEXMTBFTime972,841 hrsWarrantyWarranty Period5 years
Moxa's Layer 2 managed switches feature industrial-grade reliability, network redundancy, and security features based on the IEC 62443 standard. We offer toughened, industry-specific products with multiple industry certifications, such as parts of the EN 50155 standard for rail applications, IEC 61850-3 for power automation systems, and NEMA TS2 for intelligent transportation systems.Up to 12 10/100/1000BaseT(X) ports and 4 100/1000BaseSFP portsTurbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), and STP/RSTP/MSTP for network redundancyRADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC-addresses to enhance network securitySecurity features based on IEC 62443EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoringSupports MXstudio for easy, visualized industrial network managementV-ON™ ensures millisecond-level multicast data and video network recovery Introduction The EDS-G516E Series is equipped with 16 Gigabit Ethernet ports and up to 4 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly. Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the reliability of your system and improve the availability of your network backbone. The EDS-G500E Series is designed specifically for communication demanding applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable network backbone. Additional Features and Benefits Command line interface (CLI) for quickly configuring major managed functions DHCP Option 82 for IP address assignment with different policies Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring IGMP snooping and GMRP for filtering multicast traffic Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning Supports the ABC-02-USB (Automatic Backup Configurator) for system configuration backup/restore and firmware upgrade QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism Port Trunking for optimum bandwidth utilization RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1x, MAC ACL, HTTPS, SSH, and sticky MAC address to enhance network security SNMPv1/v2c/v3 for different levels of network management RMON for proactive and efficient network monitoring Bandwidth management to prevent unpredictable network status Lock port function for blocking unauthorized access based on MAC address Port mirroring for online debugging Automatic warning by exception through email and relay output Alarm Contact Channels 1, Relay output with current carrying capacity of 1 A @ 24 VDC Buttons Reset button Digital Input Channels 1 Digital Inputs +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA 10/100/1000BaseT(X) Ports (RJ45 connector) 12 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection 100/1000BaseSFP Slots 4 Standards IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP Filter 802.1Q VLAN, Port-based VLAN, GVRP, IGMP v1/v2/v3, GMRP Industrial Protocols EtherNet/IP, Modbus TCP, PROFINET IO Device (Slave) Management LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP MIB Ethernet-like MIB, MIB-II, Bridge MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB Redundancy Protocols Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 Security Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, MAB authentication, Sticky MAC, NTP authentication, MAC ACL, Port Lock, RADIUS, SSH, SMTP with TLS Time Management NTP Server/Client, SNTP IGMP Groups 2048 Jumbo Frame Size 9.6 KB MAC Table Size 8 K Max. No. of VLANs 256 Packet Buffer Size 4 Mbits Priority Queues 4 VLAN ID Range VID 1 to 4094 Storage Port USB Type A LED Indicators PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 1000M (TP port), 100/1000M (SFP port), MSTR/HEAD, CPLR/TAIL Console Port USB-serial console (Type B connector) DIP Switches Turbo Ring, Master, Coupler, Reserve Connection 2 removable 4-contact terminal block(s) Input Current 0.39 A @ 24 VDC Input Voltage 12/24/48/-48 VDC, Redundant dual inputs Operating Voltage 9.6 to 60 VDC Overload Current Protection Supported Reverse Polarity Protection Supported Housing Metal IP Rating IP30 Dimensions 79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in) Weight 1440 g (3.18 lb) Installation DIN-rail mounting, Wall mounting (with optional kit) Operating Temperature EDS-G516E-4GSFP: -10 to 60°C (14 to 140°F) EDS-G516E-4GSFP-T: -40 to 75°C (-40 to 167°F) Storage Temperature (package included) -40 to 85°C (-40 to 185°F) Ambient Relative Humidity 5 to 95% (non-condensing) Safety UL 508 EMC EN 61000-6-2/-6-4 EMI CISPR 32, FCC Part 15B Class A EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF Hazardous Locations ATEX, Class I Division 2 Maritime DNV-GL, LR, ABS, NK Power Substation IEC 61850-3, IEEE 1613 Railway EN 50121-4 Traffic Control NEMA TS2 Shock IEC 60068-2-27 Freefall IEC 60068-2-32 Vibration IEC 60068-2-6 Time 805,491 hrs Standards Telcordia (Bellcore), GB Warranty Period 5 years

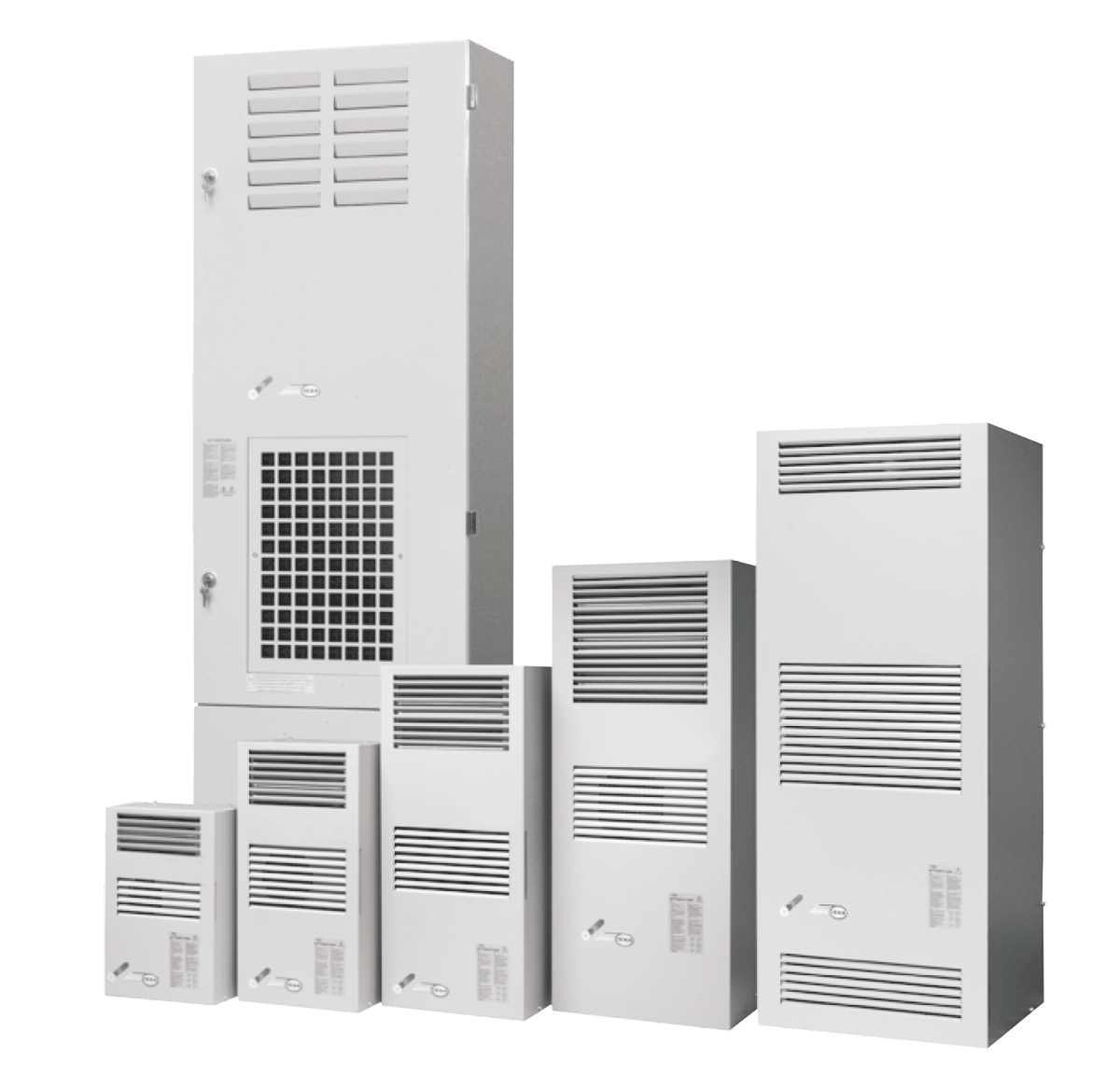

BKT EGO series AC units are intended for cooling racks in rooms with protection rating min. IP54 to protect electric and electronic equipment installed the cabinet/ rack against heat generated by them. Side installation to a wall or a cabinet door Electronic temperature controller with a display AC unit operating range from +20°C to +50°C The temperature setting range inside the cabinet from +20°C to +46°C Factor setting of temperature inside the cabinet +35°C
