EK-Quantum Vector RTX 3080/3090 Backplate - Black is a CNC-milled backplate made of black anodised aluminium that fits all EK-Quantum Vector RTX 3080/3090 water blocks. The backplate covers the full length of the graphics card PCB, serves as an aesthetic addition and also provides passive cooling for the back of the voltage regulator module (VRM), the GPU core and the VRAM on the 3090 cards. Enclosed: EK-Quantum Vector RTX 3080/3090 rear panel - Black Assembly mechanism Thermal pads
EK-Quantum Vector Strix RTX 3080/3090 Backplate - Black is a CNC-milled backplate made of black anodised aluminium that fits all EK-Quantum Vector Strix RTX 3080/3090 water blocks. The backplate covers the full length of the graphics card PCB, serves as an aesthetic addition and also provides passive cooling for the back of the voltage regulator module (VRM), the GPU core and the VRAM on the 3090 cards. Enclosed: EK-Quantum Vector Strix RTX 3070/3080/3090 back plate - Black Assembly mechanism Thermal pads

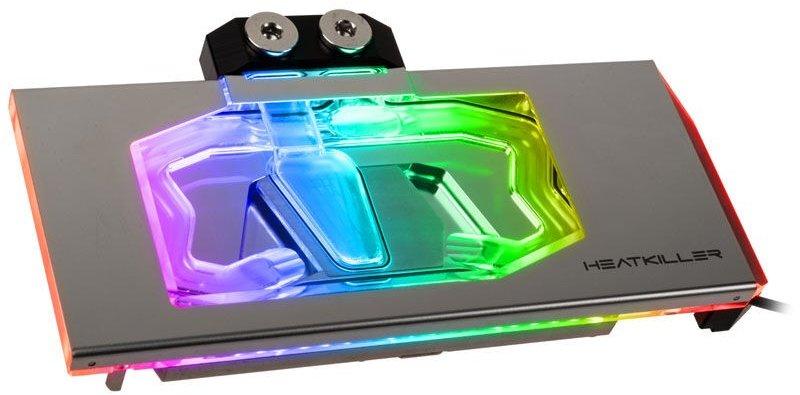

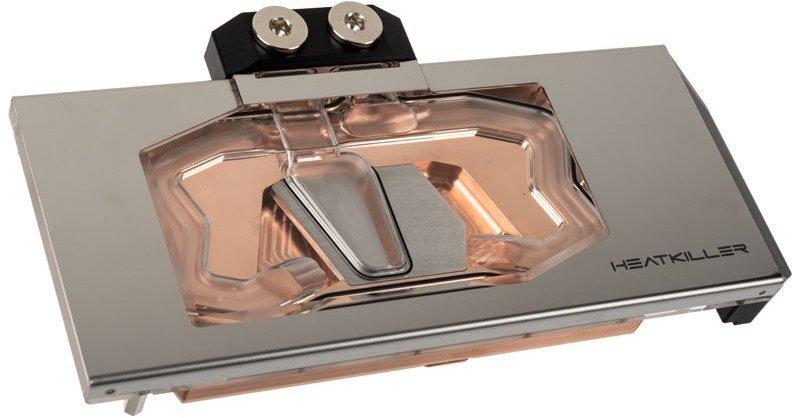

With the HEATKILLER® V, Watercool is starting a new generation of coolers for the current Nvidia RTX 30 graphics cards. Equipped with unique highlights, the current version of the HEATKILLER® V presents what is technically feasible. With an increased number of cooling fins, the cooling performance is increased directly above the graphics processor and thus the most important area is improved. The radiator base, milled from a solid block, establishes contact with all relevant components. The trend-setting dual-layer inflow distributes the water simultaneously on two levels. This ensures an air flow that is at least 30 percent higher than that of our previous generation. The broad and symmetrical flow paths reduce dead spots (standing water) to a minimum and accelerate the flow. The overall result increases not only the maximum cooling capacity but also the flow rate of the HEATKILLER® V. Thanks to the newly designed spacers made of high-performance plastic (PEEK), the 10mm solid copper block is ideally isolated from the circuit board. In addition to the technical innovations, the design of the cooler is also impressive. The screwless cover makes the entire block look like it was cast from a single source. The symmetrically designed channels underline the look of the cooler and make it a unique eye-catcher. The integrated aRGB strips are now standard in combination with the nickel-acrylic variants. This means that the HEATKILLER® V can be perfectly integrated into the lighting concept of the computer. Technical specifications: Base plate material: nickel-plated electrolyte copper Material cover: acrylic glass Cover material: annealed stainless steel Connection terminal material: Acetal Dimensions: (LxWxH): 230 x 119 x 21 mm Connection: 4x G ¼ inch (DIN ISO 228-1) Weight: Pressure tested: 2 bar Compatibility: Nvidia Geforce RTX 3080/3090 Scope of delivery: 1x HEATKILLER® V 1x HEATKILLER® LED Strip aRGB 1x mounting material Thermal Grizzly Kryonaut thermal paste
The EK Water Blocks EK-Quantum Vector Trio RTX 3080/3090 Backplate - Nickel Backplate is made of aluminum. This ensures improved cooling. Technical specifications: Material: aluminum Silver Weight: Dimensions: 307.62 x 128 x 5.2mm Scope of delivery: EK Water Blocks EK-Quantum Vector Trio RTX 3080/3090 Backplate - Nickel
The EK Water Blocks EK-Quantum Vector Trio RTX 3080/3090 Backplate - Black Backplate is made of aluminum. This ensures improved cooling. Technical specifications: Material: aluminum Color: Black Weight: Dimensions: 307.62 x 128 x 5.2mm Scope of delivery: EK Water Blocks EK-Quantum Vector Trio RTX 3080/3090 Backplate - Black
Backplate für GPU-Wasserkühlung, für EK-Quantum Vector RE RTX 3080/3090, aus Acetal, bietet erhöhte Stabilität, mit Wärmeleitpads, für aktive Kühlung des PCBs
With the HEATKILLER® V, Watercool is starting a new generation of coolers for the current Nvidia RTX 30 graphics cards. Equipped with unique highlights, the current version of the HEATKILLER® V presents what is technically feasible. With an increased number of cooling fins, the cooling performance is increased directly above the graphics processor and thus the most important area is improved. The radiator base, milled from a solid block, establishes contact with all relevant components. The trend-setting dual-layer inflow distributes the water simultaneously on two levels. This ensures an air flow that is at least 30 percent higher than that of our previous generation. The broad and symmetrical flow paths reduce dead spots (standing water) to a minimum and accelerate the flow. The overall result increases not only the maximum cooling capacity but also the flow rate of the HEATKILLER® V. Thanks to the newly designed spacers made of high-performance plastic (PEEK), the 10mm solid copper block is ideally isolated from the circuit board. In addition to the technical innovations, the design of the cooler is also impressive. The screwless cover makes the entire block look like it was cast from a single source. The symmetrically designed channels underline the look of the cooler and make it a unique eye-catcher. Technical specifications: Base plate material: electrolyte copper Material cover: acrylic glass Cover material: black anodized aluminum Connection terminal material: Acetal Dimensions: (LxWxH): 230 x 119 x 21 mm Connection: 4x G ¼ inch (DIN ISO 228-1) Weight: Pressure tested: 2 bar Compatibility: Nvidia Geforce RTX 3080/3090 Scope of delivery: 1x HEATKILLER® V 1x mounting material Thermal Grizzly Kryonaut thermal paste
With the HEATKILLER® V, Watercool is starting a new generation of coolers for the current Nvidia RTX 30 graphics cards. Equipped with unique highlights, the current version of the HEATKILLER® V presents what is technically feasible. With an increased number of cooling fins, the cooling performance is increased directly above the graphics processor and thus the most important area is improved. The radiator base, milled from a solid block, establishes contact with all relevant components. The trend-setting dual-layer inflow distributes the water simultaneously on two levels. This ensures an air flow that is at least 30 percent higher than that of our previous generation. The broad and symmetrical flow paths reduce dead spots (standing water) to a minimum and accelerate the flow. The overall result increases not only the maximum cooling capacity but also the flow rate of the HEATKILLER® V. Thanks to the newly designed spacers made of high-performance plastic (PEEK), the 10mm solid copper block is ideally isolated from the circuit board. In addition to the technical innovations, the design of the cooler is also impressive. The screwless cover makes the entire block look like it was cast from a single source. The symmetrically designed channels underline the look of the cooler and make it a unique eye-catcher. Technical specifications: Base plate material: electrolyte copper Material cover: acrylic glass Cover material: annealed stainless steel Connection terminal material: Acetal Dimensions: (LxWxH): 230 x 119 x 21 mm Connection: 4x G ¼ inch (DIN ISO 228-1) Weight: Pressure tested: 2 bar Compatibility: Nvidia Geforce RTX 3080/3090 Scope of delivery: 1x HEATKILLER® V 1x mounting material Thermal Grizzly Kryonaut thermal paste
The Barrow LRC2.0 full coverage GPU Water Block for Colorful BATTLEAX 3090 Aurora is a complete GPU cooler. It covers and cools all important components such as GPU RAM, capacitors and GPU processor. This cooler was specially developed for the Nvidia Colorful BATTLEAX 3090. The cooler plate is made of nickel-plated copper and is equipped with special micro cooling channels for optimal cooling. The lid with the integrated RGB lighting is made of acrylic glass. The RGB's are controlled via a 4Pin connector on the mainboard. Compatibility Colorful BATTLEAX RTX 3090 24G Colorful BATTLEAX RTX 3080 10G Technical Data Material: Nickel-Plated Copper (base) / Acrylic (cover) Dimensions: 250 x 122,3 x 20,4mm Colour: Silver / Transparent Cover: complete GPU cooler Threads: 2x G1/4" female Lighting: integrated RGB lighting Connections: 4Pin 5V RGB lighting Scope of Delivery Barrow LRC2.0 full coverage GPU Water Block for Colorful BATTLEAX 3090 Aurora
Full-Block-Wasserkühler von Alphacool, optimierter Wärmeaustausch durch vernickeltes Kupfer, stylishe RGB-Beleuchtung, für RTX 3090/3080 Ti HOF Grafikkarten von GALAX, NVLink kompatibel
The Barrow LRC2.0 full coverage GPU Water Block for Colorful Vulcan 3090 Aurora is a complete GPU cooler. It covers and cools all important components such as GPU RAM, capacitors and GPU processor. This cooler was specially developed for the Nvidia Colorful Vulcan 3090. The cooler plate is made of nickel-plated copper and is equipped with special micro cooling channels for optimal cooling. The lid with the integrated RGB lighting is made of acrylic glass. The RGB's are controlled via a 4Pin connector on the mainboard. Compatibility Colorful iGame RTX 3080 Vulcan X OC 10G Colorful iGame RTX 3080 Vulcan OC 10G Colorful iGame RTX 3080 Vulcan 10G Colorful iGame RTX 3080 Neptune OC 10G Colorful iGame RTX 3080 Neptune 10G Technical Data Material: Nickel-Plated Copper (base), Acrylic Glass (cover) Dimensions: 296,2 x 145,5 x 20,4mm Colour: Silver / Transparent Cover: complete GPU cooler Lighting: integrated RGB lighting Threads: 2x G1/4" internal thread Connections: 4Pin 5V RGB lighting Scope of Delivery Barrow LRC2.0 full coverage GPU Water Block for Colorful Vulcan 3090 Aurora
The Barrow LRC2.0 full coverage GPU Water Block for Colorful 3090 Advanced OC Aurora is a complete GPU cooler. It covers and cools all important components such as GPU RAM, capacitors and GPU processor. This cooler was specially developed for the Nvidia Colorful 3090 Advanced. The cooler plate is made of nickel-plated copper and is equipped with special micro cooling channels for optimal cooling. The lid with the integrated RGB lighting is made of acrylic glass. The RGB's are controlled via a 4pin connector on the mainboard. Compatibility Colorful iGame RTX 3090 Advanced OC Colorful iGame RTX 3090 Advanced Colorful iGame RTX 3080 Advanced OC 10G Colorful iGame RTX 3080 Advanced 10G Colorful iGame RTX 3080 Ultra OC 10G Colorful iGame RTX 3080 Ultra 10G Technical Data Material: Nickel-Plated Copper (base), Acrylic Glass (cover) Dimensions: 278,7 x 122,3 x 23,9mm Colour: Silver / Transparent Cover: complete GPU cooler Lighting: integrated RGB lighting Threads: 2x G1/4" female Connections: 4Pin 5V RGB lighting Scope of Delivery Barrow LRC2.0 full coverage GPU Water Block for Colorful 3090 Advanced OC Aurora.
The EK-Quantum Vector FTW3 RTX 3080/3090 backplate is intended for the EK-Quantum Vector FTW3 RTX 3080/3090 graphics card cooler of the same name. A backplate is particularly suitable for giving the graphics card more stability. As the backplate is kept very simple, it is rounded off by a small but elegant EK logo. Technical Data Material: Nickel-Plated Aluminium Color: Nickel Scope of Delivery EK-Quantum Vector FTW3 RTX 3080/3090 Backplate - Nickel Mounting mechanism (the backplate screws are on the other side - separate compartment) Thermal pads
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance. Connection options There are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1 The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2 The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!) The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design. Brilliant illumination Six addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility: - Alphacool Eisblock Aurora Acryl GPX-N RTX 3090 Founders Edition with backplate (article number: 11941) - Alphacool Eiswolf 2 AIO 360mm RTX 3090 Founders Edition with backplate (article number: 14463) Technical data L x W x H 206,54 x 120,71 x 13,3 mm Material backplate copper, nickel-plated Material cooler acrylic Threads Water cooling 2x G1/4" | 2x 5/3mm tube connection Illumination 6x digital addressable RGB LEDs Power connector digital aRGB LEDs 3-pin JST (male & female switch) Power digital aRGB LEDs 5V Maximum working temperature 60 °C Pressure tested 0,8 Bar Weight 704 g
This back plate is manufactured from massive aluminum and can be mounted in addition to a kryographics NEXT RTX 3080 Strix / RTX 3090 Strix water block, giving additional stability especially in the voltage regulator area of the graphics card. Additionally, the RAM modules on the back of the RTX 3090 Strix graphics card are cooled effectively. The back plate is anodized in black color. Scope of delivery: One Back plate Thermal conductive pads Mounting material Compatibility: Please check compatibility using the PDF from Aqua Computer under Awards and Documents. Please note: Graphics card and kryographics water block are not included in delivery, please order separately.
The Alphacool Aurora Plexi GPX-N RTX 3080/3090 Eisblock combines style with performance and extensive digital RGB lighting. With experience of over 16 years, Alphacool the ability to create GPU blocks that represent high quality and fantastic performance. This perfectly describes the Aurora Plexi GPX Eisblock More Performance! During the development of the EIsblock Aurora GPX-N RTX 3080/3090 graphic card GPU block, we wanted to further increase the performance. The first step was to move the cooler closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, we reduced the thickness of the nickel-plated copper block. Instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also been optimized. All important components such as the voltage transformers and the memory are now significantly better and more effectively cooled by the water. All this ensures a significant increase in cooling performance. New Design! The Eisblock Aurora GPX-N RTX 3080/3090 cooler has been designed so that lighting is more important than the previous models. The addressable digital RGB LEDs are embedded directly into the cooling block and run along the entire cooling block. The effect is an illumination of the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular with all edges bevelled. This promotes better light diffusion in the water cooler due to the reflections on these bevels. In addition, they create various contours, which give the Aurora GPX-N RTX 3080/3090 Eisblock cooler its very own unique identity. Copper or Aluminium? Of course, Alphacool only uses copper for its water coolers. With the Aurora GPX-N RTX 3080/3090 Eisblock, the copper is nickel-plated. Compared to its predecessor models, Alphacool has improved the nickel plating even further, which has considerably increased the acid resistance. This means that the nickel should resist flaking. Why does Alphacool rely on copper instead of aluminium? Simply, copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling. Is There Anything Else New? The Eisblock Aurora GPX-N RTX 3080/3090 also relies on the new patented stop fittings, which sit flush with the surface of the terminal. The Alphacool logo now sits in the corner on the top and is also fully illuminated. On the front of the terminal you can see the corresponding names of the compatible graphic card types. Of course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small triangles. They are easily recognizable and fit perfectly into the entire aesthetics of the graphic card water cooler. The Alphacool Aurora GPX-N RTX 3080/3090 Plexi is a complete redevelopment of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how flowed into the development and implementation. Note: - This article is delivered with a backplate Technical data: L x W x B: 142,1 x 238 x 22,5 mm Material cooler: Nickle plated copper Material top: Plexi Thickness cooling fins: 0,6 mm Threads: 4x G1/4“ Power connector Digital RGB: 3-Pin 5V (0,5A) Graphics Card Configurator: Click here! List of Compatibility: Nvidia graphic cards (Note: RTX 3090/3080 cards will be added after their release) Compatibility list: RTX3080 TI ASUS TUF Gaming GeForce RTX 3080 Ti 12GB OC RTX 3080 ASUS TUF Gaming GeForce RTX 3080 OC, TUF-RTX3080-O10G-GAMING, 10GB GDDR6X, 2x HDMI, 3x DP (90YV0FB1-M0NM00) ASUS TUF Gaming GeForce RTX 3080, TUF-RTX3080-10G-GAMING, 10GB GDDR6X, 2x HDMI, 3x DP (90YV0FB0-M0NM00) RTX 3090 ASUS TUF Gaming GeForce RTX 3090, TUF-RTX3090-24G-GAMING, 24GB GDDR6X, 2x HDMI, 3x DP (90YV0FD0-M0NM00) ASUS TUF Gaming GeForce RTX 3090 OC, TUF-RTX3090-O24G-GAMING, 24GB GDDR6X, 2x HDMI, 3x DP (90YV0FD1-M0NM00) Download manual PDF: Alphacool Eisblock Aurora Plexi GPX-N RTX 3090/3080 TUF with Backplate Download data sheet PDF: Alphacool Eisblock Aurora Plexi GPX-N RTX 3090/3080 TUF with Backplate
The Alphacool Aurora Acetal GPX-N RTX 3080/3090 Eisblock combines style with performance. With experience of over 16 years, Alphacool the ability to create GPU blocks that represent high quality and fantastic performance. This perfectly describes the Aurora Acetal GPX Eisblock. More Performance! During the development of the EIsblock Aurora GPX-N RTX 3080/3090 graphic card GPU block, we wanted to further increase the performance. The first step was to move the cooler closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, we reduced the thickness of the nickel-plated copper block. Instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also been optimized. All important components such as the voltage transformers and the memory are now significantly better and more effectively cooled by the water. All this ensures a significant increase in cooling performance. Copper or Aluminium? Of course, Alphacool only uses copper for its water coolers. With the Aurora GPX-N RTX 3080/3090 Eisblock, the copper is nickel-plated. Compared to its predecessor models, Alphacool has improved the nickel plating even further, which has considerably increased the acid resistance. This means that the nickel should resist flaking. Why does Alphacool rely on copper instead of aluminium? Simply, copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling. Is There Anything Else New? The Eisblock Aurora GPX-N RTX 3080/3090 also relies on the new patented stop fittings, which sit flush with the surface of the terminal. The Alphacool logo now sits in the corner on the top. On the front of the terminal you can see the corresponding names of the compatible graphic card types. IN and OUT are now marked by small triangles. They are easily recognizable and fit perfectly into the entire aesthetics of the graphic card water cooler. The Alphacool Aurora GPX-N RTX 3080/3090 Acetal is a complete redevelopment of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how flowed into the development and implementation. Note: - The Founders Edition, does NOT correspond to the Reference Design! Technical data cooler L x W x H 224,86 x 121,4 x 25,05 mm Material cooler Nickle-plated copper Material cooler top acetal Threads 4 x G1/4 Thickness cooling fins 0,6 mm Maximum working temperature 60 °C Technical data backplate L x W x H 224,86 x 96,9 x 6 mm Material aluminium Color black Compatibility: RTX 3080 TI Gainward GeForce RTX 3080 Ti 12GB Phoenix INNO3D GEFORCE RTX 3080 TI ICHILL X4 INNO3D GEFORCE RTX 3080 TI ICHILL FROSTBITE INNO3D GEFORCE RTX 3080 TI ICHILL X3 INNO3D GEFORCE RTX 3080 TI X3 INNO3D GEFORCE RTX 3080 TI X3 OC Palit GeForce RTX 3080 Ti GamingPro Zotac Gaming GeForce RTX 3080 Ti AMP Holo Zotac GeForce RTX 3080 Ti AMP HoloBlack Zotac Gaming GeForce RTX 3080 Ti Trinity Zotac Gaming GeForce RTX 3080 Ti Trinity OC RTX 3080 Galakuro NVIDIA GEFORCE RTX 3080 GG-RTX3080-E10GB/TP Galax GeForce RTX 3080 SG 10GB GDDR6X 320-bit DP*3/HDMI Gainward RTX 3080 Phoenix Gainward RTX 3080 Phoenix GS Inno3D GeForce RTX 3080 iChill X3/X4 10240 MB GDDR6X Inno3D GeForce RTX 3080 Twin X2 OC 10240 MB GDDR6X INNO3D GEFORCE RTX 3080 12GB ICHILL FROSTBITE LHR INNO3D GEFORCE RTX 3080 12GB X3 OC LHR INNO3D GEFORCE RTX 3080 12GB ICHILL X3/X4 LHR INNO3D GEFORCE RTX 3080 12GB ICHILL BLACK LHR KFA2 GeForce RTX 3080 SG 10GB GDDR6X 320-bit DP*3/HDMI Palit GeForce RTX™ 3080 GamingPro Palit GeForce RTX™ 3080 GamingPro OC PNY GeForce RTX 3080 XLR8 Gaming EPIC-X RGB 10240 MB GDDR6X (VCG308010TFXMPB) PNY GeForce RTX 3080 XLR8 Gaming EPIC-X RGB 10240 MB GDDR6X (VCG308010TFXPPB) Zotac GAMING GeForce RTX 3080 Trinity Zotac Gaming GeForce RTX 3080 Trinity OC RTX 3090 Galakuro NVIDIA GEFORCE RTX 3090 GG-RTX3090-E24GB/TP Galax GeForce RTX 3090 SG 24GB GDDR6X 320-bit DP*3/HDMI Gainward RTX 3090 Phoenix Gainward RTX 3090 Phoenix GS Inno3D GeForce RTX 3090 iChill X3/X4, 24576 MB GDDR6X Inno3D GeForce RTX 3090 Gaming X3, 24576 MB GDDR6X KFA2 GeForce RTX 3090 SG 24GB GDDR6X 320-bit DP*3/HDMI Palit GeForce RTX™ 3090 GamingPro Palit GeForce RTX™ 3090 GamingPro OC PNY GeForce RTX 3090 XLR8 Gaming EPIC-X RGB, 24576 MB GDDR6X Zotac GeForce RTX 3090 Trinity, 24576 MB GDDR6X
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance.Connection optionsThere are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!)The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design.Brilliant illuminationSix addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility:- Alphacool Eisblock Aurora Acryl GPX-N RTX 3090 Founders Edition with backplate (article number: 11941)- Alphacool Eiswolf 2 AIO 360mm RTX 3090 Founders Edition with backplate (article number: 14463) Technical dataL x W x H206,54 x 120,71 x 13,3 mmMaterial backplatecopper, nickel-platedMaterial cooleracrylicThreads Water cooling2x G1/4" | 2x 5/3mm tube connectionIllumination6x digital addressable RGB LEDsPower connector digital aRGB LEDs3-pin JST (male & female switch)Power digital aRGB LEDs5VMaximum working temperature60 °CPressure tested0,8 BarWeight704 g
The Alphacool Aurora Plexi GPX-N RTX 3080/3090 Eisblock combines style with performance and extensive digital RGB lighting. With experience of over 16 years, Alphacool the ability to create GPU blocks that represent high quality and fantastic performance. This perfectly describes the Aurora Plexi GPX Eisblock More Performance! During the development of the EIsblock Aurora GPX-N RTX 3080/3090 graphic card GPU block, we wanted to further increase the performance. The first step was to move the cooler closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, we reduced the thickness of the nickel-plated copper block. Instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also been optimized. All important components such as the voltage transformers and the memory are now significantly better and more effectively cooled by the water. All this ensures a significant increase in cooling performance. New Design! The Eisblock Aurora GPX-N RTX 3080/3090 cooler has been designed so that lighting is more important than the previous models. The addressable digital RGB LEDs are embedded directly into the cooling block and run along the entire cooling block. The effect is an illumination of the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular with all edges bevelled. This promotes better light diffusion in the water cooler due to the reflections on these bevels. In addition, they create various contours, which give the Aurora GPX-N RTX 3080/3090 Eisblock cooler its very own unique identity. Copper or Aluminium? Of course, Alphacool only uses copper for its water coolers. With the Aurora GPX-N RTX 3080/3090 Eisblock, the copper is nickel-plated. Compared to its predecessor models, Alphacool has improved the nickel plating even further, which has considerably increased the acid resistance. This means that the nickel should resist flaking. Why does Alphacool rely on copper instead of aluminium? Simply, copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling. Is There Anything Else New? The Eisblock Aurora GPX-N RTX 3080/3090 also relies on the new patented stop fittings, which sit flush with the surface of the terminal. The Alphacool logo now sits in the corner on the top and is also fully illuminated. On the front of the terminal you can see the corresponding names of the compatible graphic card types. Of course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small triangles. They are easily recognizable and fit perfectly into the entire aesthetics of the graphic card water cooler. The Alphacool Aurora GPX-N RTX 3080/3090 Plexi is a complete redevelopment of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how flowed into the development and implementation. Note: - This article is delivered with a backplate - The Founders Edition, does NOT correspond to the Reference Design! Technical data: L x W x B: 132 x 259 x 25 mm Material cooler: Nickle plated copper Material top: Plexi Thickness cooling fins: 0,6 mm Threads: 4x G1/4“ Power connector Digital RGB: 3-Pin 5V (0,5A) Graphics Card Configurator: Click here! List of Compatibility: Nvidia graphic cards (Note: RTX 3090/3080 cards will be added after their release) Compatibility list: RTX 3080 TI MSI GeForce RTX 3080 Ti Ventus 3X 12G OC RTX 3080 MSI GeForce RTX 3080 Ventus 3X 10G OC, 10GB GDDR6X, HDMI, 3x DP RTX 3090 MSI GeForce RTX 3090 Ventus 3X 24G, 24GB GDDR6X, HDMI, 3x DP MSI GeForce RTX 3090 Ventus 3X 24G OC, 24GB GDDR6X, HDMI, 3x DP Download manual PDF: Alphacool Eisblock Aurora Plexi GPX-N RTX 3090/3080 Ventus with Backplate Download data sheet PDF: Alphacool Eisblock Aurora Plexi GPX-N RTX 3090/3080 Ventus with Backplate
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers as well as Alphacool's Eiswolf 2 GPU AIOs (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance.Connection optionsThere are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!)The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design.Brilliant illuminationSix addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility:- Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 Gaming/Eagle with backplate (article number: 11942)- Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 Gaming/Eagle with backplate (article number: 14416) Technical dataL x W x H233,5 x 97 x 13,3 mmMaterial backplatecopper, nickel-platedMaterial cooleracrylicThreads Water cooling2x G1/4" | 2x 5/3mm tube connectionIllumination6x digital addressable RGB LEDsPower connector digital aRGB LEDs3-pin JST (male & female switch)Power digital aRGB LEDs5VMaximum working temperature60 °CPressure tested0,8 BarWeight662 g
GPU-Wasserkühler im Full-Block-Design, für verschiedene RTX-Grafikkarten von NVIDIA, vernickelter Kupferblock mit Acrylglas-Deckel, integrierte A-RGB-Beleuchtung
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance.Connection optionsThere are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!)The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design.Brilliant illuminationSix addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility:- Alphacool Eisblock Aurora Acryl GPX-N RTX 3090 TI Founders Edition with Backplate (article number: 13056) Technical dataL x W x H220,5 x 121,4 x 13,3 mmMaterial backplatecopper, nickel-platedMaterial cooleracrylicThreads Water cooling2x G1/4" | 2x 5/3mm tube connectionIllumination6x digital addressable RGB LEDsPower connector digital aRGB LEDs3-pin JST (male & female switch)Power digital aRGB LEDs5VMaximum working temperature60 °CPressure tested0,8 BarWeight753 g
With the HEATKILLER® V, Watercool is starting a new generation of coolers for the current Nvidia RTX 30 graphics cards. Equipped with unique highlights, the current version of the HEATKILLER® V presents what is technically feasible. With an increased number of cooling fins, the cooling performance is increased directly above the graphics processor and thus the most important area is improved. The radiator base, milled from a solid block, establishes contact with all relevant components. The trend-setting dual-layer inflow distributes the water simultaneously on two levels. This ensures an air flow that is at least 30 percent higher than that of our previous generation. The broad and symmetrical flow paths reduce dead spots (standing water) to a minimum and accelerate the flow. The overall result increases not only the maximum cooling capacity but also the flow rate of the HEATKILLER® V. Thanks to the newly designed spacers made of high-performance plastic (PEEK), the 10mm solid copper block is ideally isolated from the circuit board. In addition to the technical innovations, the design of the cooler is also impressive. The screwless cover makes the entire block look like it was cast from a single source. The symmetrically designed channels underline the look of the cooler and make it a unique eye-catcher. The integrated aRGB strips are now standard in combination with the nickel-acrylic variants. This means that the HEATKILLER® V can be perfectly integrated into the lighting concept of the computer. Technical specifications: Base plate material: nickel-plated electrolyte copper Material cover: acrylic glass Cover material: black anodized aluminum Connection terminal material: Acetal Dimensions: (LxWxH): 230 x 119 x 21 mm Connection: 4x G ¼ inch (DIN ISO 228-1) Weight: Pressure tested: 2 bar Compatibility: Nvidia Geforce RTX 3080/3090 Scope of delivery: 1x HEATKILLER® V 1x HEATKILLER® LED Strip aRGB 1x mounting material Thermal Grizzly Kryonaut thermal paste
The HEATKILLER® V eBC backplate is a useful addition to the graphics card cooler of the HEATKILLER® V series. Mounted on the back of the graphics card, it improves cooling performance and increases mechanical stability. This is made possible by the use of solid black anodized aluminum. The optics are not neglected either. The backplate cools relevant components on the back of the board, including the GPU and voltage converter (VRM). Pre-cut thermal pads are included in the scope of delivery. Spacers (electrically insulating) attached to the back of the backplate ensure problem-free installation on the graphics card. The enclosed mounting material is optimized for use with a water cooler from the HEATKILLER® V series. Technical specifications: Material: anodized aluminum Dimensions: (L x W x H): Weight: 150g Compatibility: ZOTAC Geforce RTX 3080 Trinity ZOTAC Geforce RTX 3090 Trinity Scope of delivery: 1x HEATKILLER® V eBC - Backplate for RTX 3080/3090 Zotac Trinity - Black 1x mounting material
With the HEATKILLER® V, Watercool is starting a new generation of coolers for the current Nvidia RTX 30 graphics cards. Equipped with unique highlights, the current version of the HEATKILLER® V presents what is technically feasible. With an increased number of cooling fins, the cooling performance is increased directly above the graphics processor and thus the most important area is improved. The radiator base, milled from a solid block, establishes contact with all relevant components. The trend-setting dual-layer inflow distributes the water simultaneously on two levels. This ensures an air flow that is at least 30 percent higher than that of our previous generation. The broad and symmetrical flow paths reduce dead spots (standing water) to a minimum and accelerate the flow. The overall result increases not only the maximum cooling capacity but also the flow rate of the HEATKILLER® V. Thanks to the newly designed spacers made of high-performance plastic (PEEK), the 10mm solid copper block is ideally isolated from the circuit board. In addition to the technical innovations, the design of the cooler is also impressive. The screwless cover makes the entire block look like it was cast from a single source. The symmetrically designed channels underline the look of the cooler and make it a unique eye-catcher. The integrated aRGB strips are now standard in combination with the nickel-acrylic variants. This means that the HEATKILLER® V can be perfectly integrated into the lighting concept of the computer. Technical specifications: Base plate material: nickel-plated electrolyte copper Material cover: acrylic glass Cover material: annealed stainless steel Connection terminal material: Acetal Dimensions: (LxWxH): Connection: 4x G ¼ inch (DIN ISO 228-1) Weight: Pressure tested: 2 bar Compatibility: EVGA Geforce RTX 3080 XC3 EVGA Geforce RTX 3090 XC3 Scope of delivery: 1x HEATKILLER® V 1x HEATKILLER® LED Strip aRGB 1x mounting material Thermal Grizzly Kryonaut thermal paste
The HEATKILLER® V eBC backplate is a useful addition to the graphics card cooler of the HEATKILLER® V series. Mounted on the back of the graphics card, it improves cooling performance and increases mechanical stability. This is made possible by the use of solid black anodized aluminum. The optics are not neglected either. The backplate cools relevant components on the back of the board, including the GPU and voltage converter (VRM). Pre-cut thermal pads are included in the scope of delivery. Spacers (electrically insulating) attached to the back of the backplate ensure problem-free installation on the graphics card. The enclosed mounting material is optimized for use with a water cooler from the HEATKILLER® V series. Technical specifications: Material: anodized aluminum Dimensions: (L x W x H): Weight: 150g Compatible to: NVIDIA Geforce RTX 3080 NVIDIA Geforce RTX 3090 Scope of delivery: 1x HEATKILLER® V eBC - Backplate for RTX 3080/3090 - Black 1x mounting material
The HEATKILLER® V eBC backplate is a useful addition to the graphics card coolers of the HEATKILLER® V series. Mounted on the back of the graphics card, it improves cooling performance and mechanical stability. This is made possible by the use of solid black anodized aluminum. The milled logos and indirect lighting are also eye-catchers. The backplate cools relevant components on the back of the board, including the GPU and voltage converter (VRM). Pre-cut thermal pads are included in the delivery. Spacers (electrically insulating) attached to the back of the backplate ensure easy installation on the graphics card. The included mounting material is optimized for use with a water cooler from the HEATKILLER® V series. Technical data: Material: anodized aluminum Dimensions: (L x W x H): Weight: 150g Compatibility: EVGA GeForce RTX 3080 FTW3 EVGA GeForce RTX 3080Ti FTW3 EVGA GeForce RTX 3090 FTW3 See also http://gpu.watercool.de for further information Scope of delivery: 1x HEATKILLER® V eBC - Backplate for RTX 3080/3090 EVGA FTW3 - Black 1x mounting material
The HEATKILLER® V eBC backplate is a useful addition to the HEATKILLER® V series graphics card coolers. Mounted on the back of the graphics card, it improves cooling performance and mechanical stability. This is made possible by the use of solid black anodized aluminum. The milled logos and indirect lighting are also discreet eye-catchers. The backplate cools relevant components on the back of the board, including the GPU and voltage converter (VRM). Pre-cut thermal pads are included in the delivery. Spacers (electrically insulating) attached to the back of the backplate ensure easy installation on the graphics card. The included mounting material is optimized for use with a HEATKILLER® V series water cooler. Technical data: Material: nickel-plated aluminum, insulated Dimensions: (L x W x H): Weight: 150g Compatibility: EVGA GeForce RTX 3080 FTW3 EVGA GeForce RTX 3090 FTW3 EVGA GeForce RTX 3080Ti FTW3 See also http://gpu.watercool.de for further information Scope of delivery: 1x HEATKILLER® V eBC - Backplate for RTX 3080/3090 EVGA FTW3 - Black 1x mounting material
Full-Block-Wasserkühler von Alphacool, optimierter Wärmeaustausch durch vernickeltes Kupfer, stylishe RGB-Beleuchtung, für RTX 3080/3080 Ti XC3 Ultra Gaming Grafikkarten von EVGA, NVLink kompatibel
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance. Connection options There are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1 The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2 The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!) The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design. Brilliant illumination Six addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility: - Alphacool Eisblock Aurora Acryl GPX-N RTX 3090 TI Founders Edition with Backplate (article number: 13056) Technical data L x W x H 220,5 x 121,4 x 13,3 mm Material backplate copper, nickel-plated Material cooler acrylic Threads Water cooling 2x G1/4" | 2x 5/3mm tube connection Illumination 6x digital addressable RGB LEDs Power connector digital aRGB LEDs 3-pin JST (male & female switch) Power digital aRGB LEDs 5V Maximum working temperature 60 °C Pressure tested 0,8 Bar Weight 753 g
The Alphacool Eisblock ES Acetal GPX-N RTX 3080/3090 Turbo was specially developed for the Alphacool Enterprise series. The full-cover cooler with aluminium backplate cools the GPU and all important components such as voltage converters and the graphics memory directly with water. Connections to the top? Server cases offer different dimensions than normal PC cases. To save space in width and height, the connections were moved to the top. Another advantage is that it is easier to connect the tubing of a complete server rack with this kind of positioning of the connections. This means that even quick-release fasteners with G1/4" external thread can be screwed directly to the graphics card as already offered by Alphacool. More performance! During the development of the Eisblock ES Acetal GPX-N RTX 3080/3090 Turbo graphics card waterblock, we naturally placed great emphasis on increasing performance. For the first step, the cooler was brought closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, the nickel-plated copper block was also made thinner. Instead of 7 mm, it is now only 5.5 mm thick. The water flow within the cooler was also optimized. All important components such as the voltage converters and the RAM are now cooled much better and more effectively by water. All this provides a significant increase in cooling performance. Copper or aluminum? Alphacool, of course, only uses copper in its water coolers. In the Eisblock ES Acetal GPX-N RTX 3080/3090 Turbo the copper is nickel-plated. However, compared to the previous models, Alphacool has improved the type of nickel plating once again. This has significantly increased the acid resistance and is intended to prevent nickel plating from flaking off. Why does Alphacool use copper instead of aluminum? Copper simply has almost twice the thermal conductivity of aluminum and is therefore clearly the better material for water cooling. Technical data cooler L x W x H 266,7 x 97,90 x 14,75 mm Material cooler Nickle-plated copper Material cooler top acetal Threads 2 x G1/4“ Thickness cooling fins 0,6 mm Technical data backplate L x W x H 266,7 x 97,6 x 6 mm Material aluminium Color Black Compatibility list: - ASUS Turbo GeForce RTX 3090 (90YV0FK0-M0NB00) - ASUS Turbo GeForce RTX 3080 10GB (TURBO-RTX3080-10G) - ASUS Turbo GeForce RTX 3080 V2 10GB (TURBO-RTX3080-10G-V2) Downloads:Datasheet PDF | Manual PDF | Nvidia List of Compatibility PDF Links: Graphics Card Configurator
