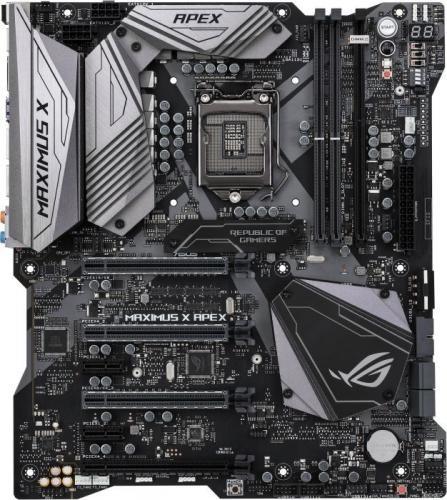

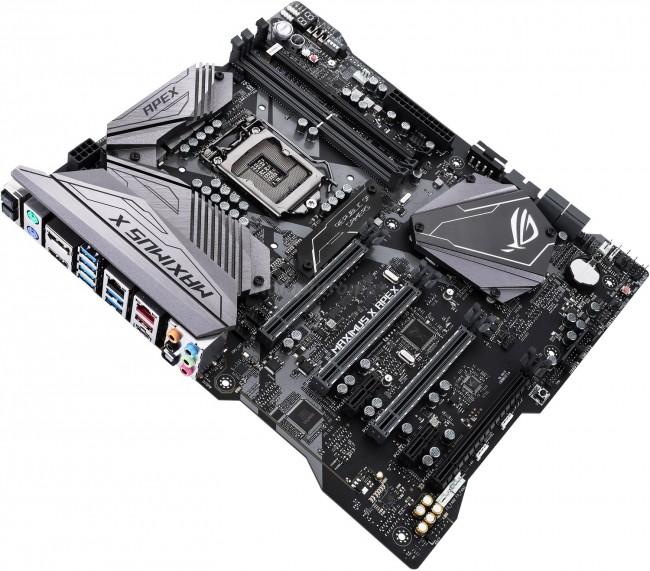

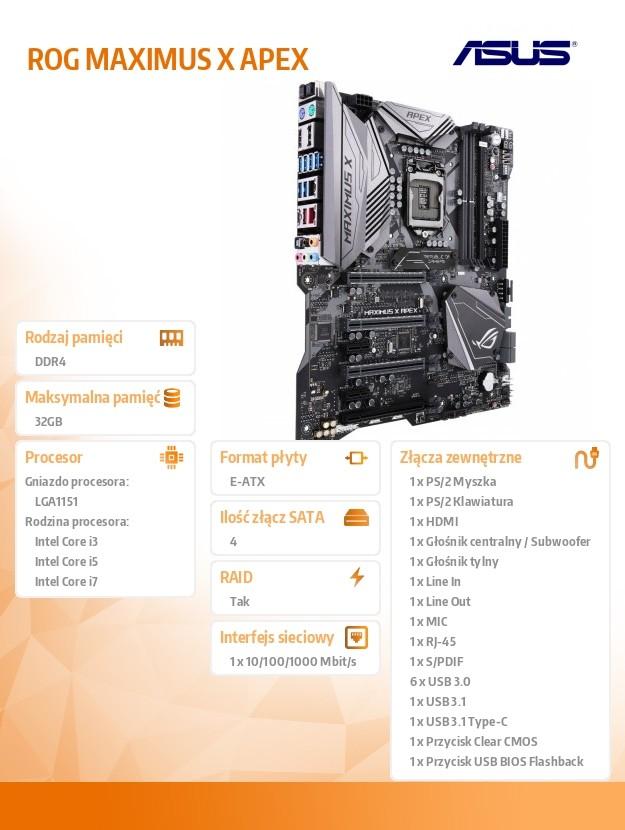

Emaplaat Asus Socket 1151 ROG Maximus X Apex

Socket 1151, Intel Z370, RAM: 2x DDR4 DIMM, dual PC4-36000U / DDR4-4500 (OC), max. 32GB (UDIMM), expansion slots: 4x PCIe 3.0 x16 (1x x16, 1x x8, 2x x4), 2x PCIe 3.0 x1, 1x M.2 / M-Key (PCIe 3.0 x4 / SATA, 22110/2280 / 2260/2242), 1x M.2 / M-Key (PCIe 3.0 x4, 22110/2280/2260/2242), external connections: 1x HDMI 1.4, 1x USB-C 3.1 (ASM3142), 1x USB -A 3.1 (ASM3142), 6x USB-A 3.0, 1x 5GBase-T (Aquantia AQtion AQC108), 1x Gb LAN (Intel I219-V), 5x Jack, 1x Toslink, 1x PS / 2 Keyboard, 1x PS / 2 mouse, Internal connections: 2x USB 3.0, 4x USB 2.0, 4x SATA 6Gb / s (Z370), 1x TPM header, Header cooling: 2x CPU fan 4-pin, 3x fan 4-pin, 1x AIO pump 4 -Pin, 1x pump 4-pin, Header lighting: 4x RGB header 4-pin (5050), Buttons / Switches: Power Button, Reset Button, Safe Boot Button, Retry Button, MemOK Button, BIOS -Switch, PCIe Switch, Clear CMOS (external), USB BIOS Flashback (external), Audio: 7.1 (Realtek ALC1220 / SupremeFX), RAID level: 0/1/5/10 (Z370), Multi GPU: NVIDIA 2-Way SLI (x8 / x8), AMD 4-Way CrossFir eX (x8 / x8, x8 / x8 / x4, x8 / x8 / x4 / x4), Power connections: 1x 24-pin ATX, 2x 8-pin EPS12V, 1x 4-pin Molex, CPU phases : 10, Graphics: IGP (via CPU / APU), Lighting: RGB, 4 zones (chipset cooler, audio strip, rear panel, M.2 cooler), Special features: Audio + solid capacitors, Diagnostic LED, Dual BIOS, voltage measurement points, E-ATX (SSI EEB)
