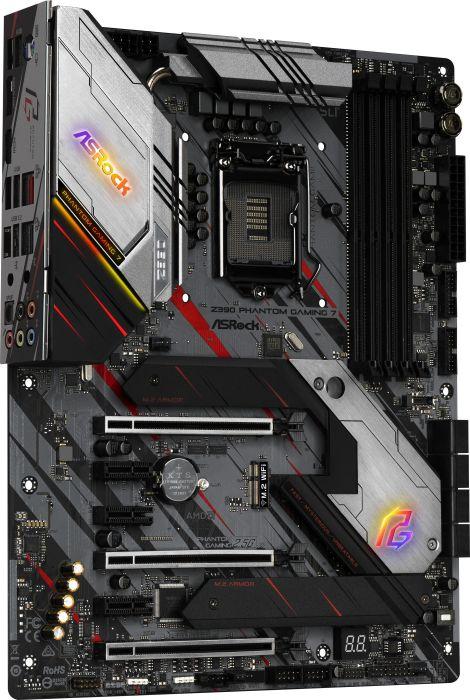

Emaplaat ASRock Socket 1151 Z390 PHANTOM GAMING 7

Model: Z390 PHANTOM GAMING 7 Chipset type: Intel Z390 Max memory size: 128 Max. number of SATA devices: 8 Max. number of ATA devices: 0 Detailed data on disk/drive interfaces: 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI and Hot Plug2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) Graphics: Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics DirectX 12 HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 Dual graphics output: output: graphics output options: HDMI and DisplayPort 1.2 Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports Sound card: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection Nichicon Fine Gold Series Audio Caps 120dB SNR DAC with Differential Amplifier NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) Pure Power-In Direct Drive Technology PCB Isolate Shielding Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Gold Audio Jacks 15 Gold Audio Connector Supports Creative Sound Blaster Cinema 5 Network interface: 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG) Supports Phantom Gaming LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V) Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE USB ports at back panel: 6 USB ports on motherboard: 8 Number of USB 3.0/USB 3.1 gen 1 ports: 8 Number of USB 3.1/USB 3.1 gen 2 ports: 2 Special functions: ASRock USB 3.2 Gen2- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- 50A Dr.MOS- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- Combo Caps (Nichicon 12K Black Caps)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCBASRock Phantom Gaming 2.5G LANASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) TechnologyASRock Steel SlotsASRock Full Coverage M.2 HeatsinkASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop BIOS: 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) Supports Secure Backup UEFI Technology ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment Dimensions: 30.5 cm x 24.4 cm Accessories included: Quick Installation Guide Support CD SATA Data Cables x 4 ASRock SLI_HB_Bridge_2S Card Screws for M.2 Sockets x 3 Standoffs for M.2 Sockets x 2 Software: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
