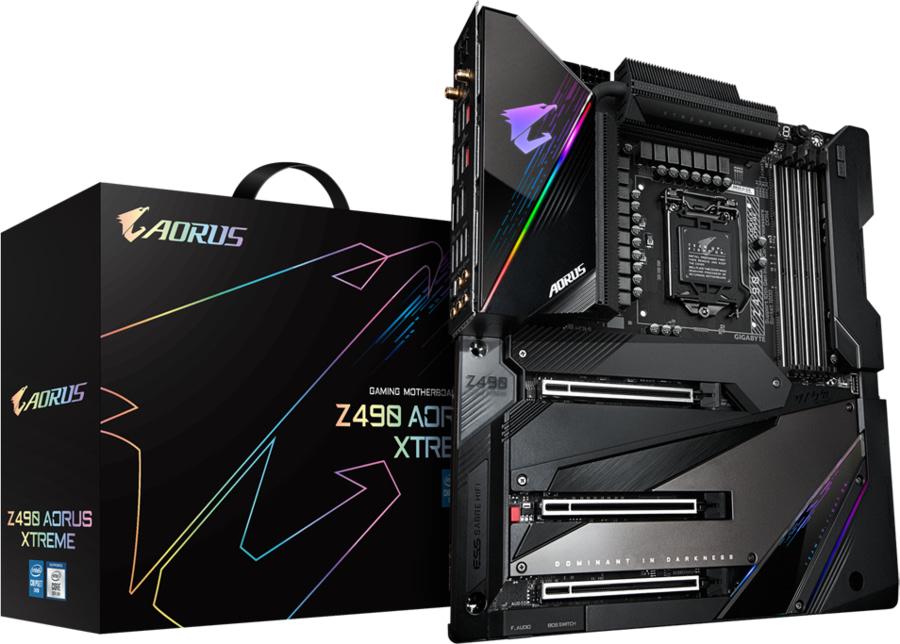

Emaplaat Gigabyte Socket 1200 Z490 Aorus Xtreme

Socket 1200, Form factor E-ATX (SSI EEB), Chipset Intel Z490, VRM 17 virtual phases, MOSFETs CPU 16x 90A, MOSFETs SoC 1x 90A, RAM 4x DDR4 DIMM, dual PC4-40000U / DDR4-5000 (OC), max. 128GB (UDIMM), Expansion slots 3x PCIe 3.0 x16 (1x x16, 1x x8, 1x x4), 2x M.2 / M-Key (PCIe 3.0 x4 / SATA, 22110/2280/2242), 1x M.2 / M- Key (PCIe 3.0 x4, 22110/2280/2260/2242), External connections 1x HDMI 1.4b, 4x USB-A 3.1 (Z490), 2x USB-A 3.0, 2x USB-A 2.0, 2x Thunderbolt 3, 1x 10GBase-T (Marvell AQtion AQC107), 1x 2.5GBase-T (Intel I225 -V), 5x jack, 1x Toslink, Internal connections 1x USB-C 3.1 Key-A header (Z490), 1x USB 3.0 header (2x USB 3.0), 1x USB 2.0 header (2x USB 2.0), 6x SATA 6Gb / s (Z490), 1x TPM header, 1x Thunderbolt header 5-pin, 1x RTD3 header, Header cooling 2x CPU fan 4-pin, 4x fan 4-pin, 2x fan / pump 4-pin, 2x thermal sensor, 1x noise sensor, Header lighting 2x RGB header 4-pin (5050), 2x RGB header 3-pin (WS2812B), Buttons / switches power button (internal), reset button (internal), OC button (internal), clear CMOS button (external), USB BIOS Flashback / Q-Flash Plus (external), 2x BIOS switch (internal), Audio 7.1 (Realtek ALC1220 x2), DAC (ESS ES9018 Saber / ESS ES9218 Saber), DTS: X Ultra, RAID level 0/1/5/10 (Z490), Multi-GPU NVIDIA 2-Way-SLI (x8 / x8), AMD 2-Way-CrossFireX (x8 / x8), Power connections 1x 24-pin ATX, 2x 8-pin EPS12V, Graphics CPU, RGB lighting, 2 zones (chipset cooler, I / O cover), Special features audio + solid capacitors, diagnostic LED (segment display), integrated I / O panel, front cladding, backplate, dual BIOS, voltage measuring points, 3x M.2 passive cooler, Bluetooth 5.1 + WLAN 802.11a / b / g / N / ac / ax (2x2, Intel AX201)
