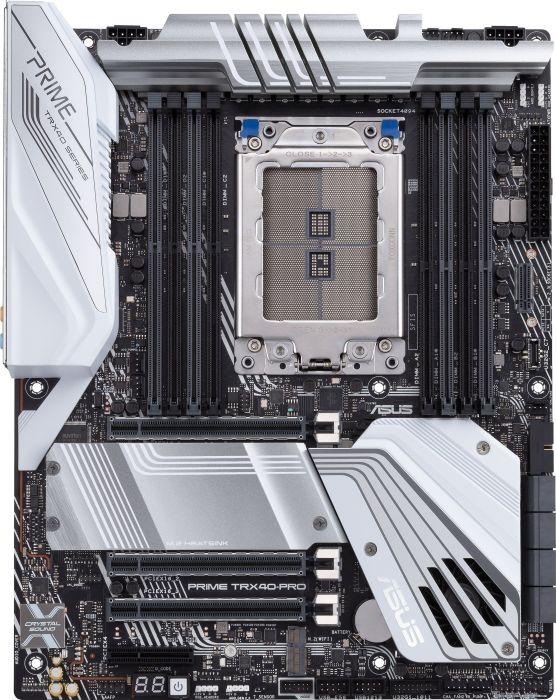

Emaplaat Asus Socket TR4 Prime TRX40-Pro

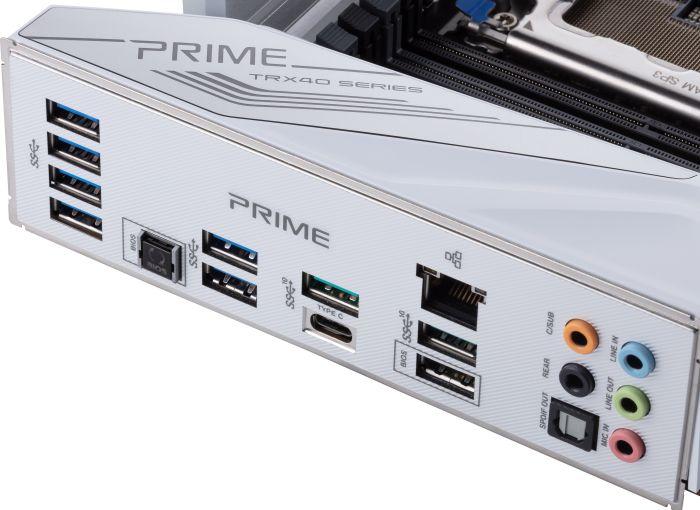

Socket TR4, Chipset AMD TRX40, MOSFETs CPU 16x 60A TDA21462, RAM 8x DDR4 DIMM, quad PC4-25600U / DDR4-3200, max. 256GB (UDIMM), Expansion slots 3x PCIe 4.0 x16, 1x PCIe 4.0 x4, 1x M.2 / M-Key (PCIe 4.0 x4 / SATA, 22110/2280/2260/2242), 2x M.2 / M-Key ( PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2 / E-Key (PCIe, 2230), External connections 1x USB-C 3.1 (CPU), 3x USB-A 3.1 (CPU), 2x USB-A 3.0 (TRX40), 4x USB-A 3.0 (ASMedia), 1x Gb LAN (Intel I211-AT), 5x jack , 1x Toslink, Internal connections 1x USB-C 3.1 (20-pin key-A header, TRX40), 4x USB 3.0 (TRX40), 4x USB 2.0 (TRX40), 8x SATA 6Gb / s (TRX40), 1x ASUS node, Header cooling 2x CPU fan 4-pin, 3x fan 4-pin, 1x AIO pump 4-pin, 1x pump 4-pin, 1x thermal sensor, Header lighting 2x RGB header 4-pin (5050), 2x RGB header 3-pin (WS2812B), Buttons / switches power button (internal), USB BIOS flashback (external), Audio 7.1 (Realtek ALC1220), DTS: X Ultra, RAID level 0/1/10 (TRX40), Multi-GPU NVIDIA 2-Way-SLI (x16 / x16), AMD 2-Way-CrossFireX (x16 / x16), Power connections 1x 24-pin ATX, 2x 8-pin EPS12V, RGB lighting, 1 zone (I / O cover), Special features audio + solid capacitors, diagnostic LED (segment display), diagnostic LED (LED indicators), 2x M.2 passive cooler, integrated I / O panel, ECC support, ATX
