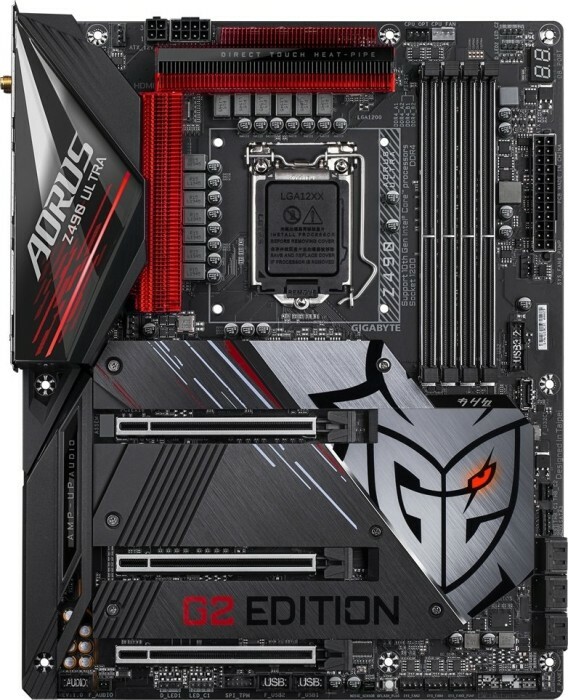

Emaplaat Gigabyte Socket 1200 Z490 Aorus Ultra G2

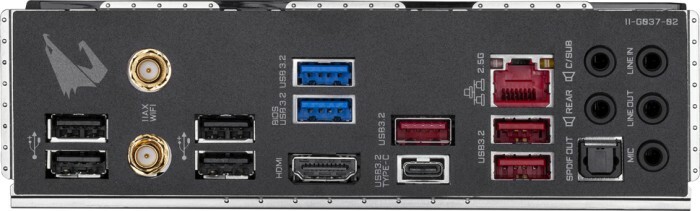

Socket 1200, Form factor ATX, Chipset Intel Z490, CPU compatibility Core i-10000, Pentium Gold G6000, Celeron G5000, VRM 13 real phases (12 + 0, 1 + 0), PWM controller: ISL69269 (max. 12 phases), MOSFETs CPU 12x 60A SiC620A, MOSFETs SoC 1x 50A SiC651A, RAM 4x DDR4 DIMM, dual PC4-40000U / DDR4-5000 (OC), max. 128GB (UDIMM), Expansion slots 3x PCIe 3.0 x16 (1x x16, 1x x8, 1x x4), 2x M.2 / M-Key (PCIe 3.0 x4 / SATA, 22110/2280/2260/2242), 1x M.2 / M-Key (PCIe 3.0 x4, 22110/2280/2260/2242), External connections 1x HDMI 1.4b (iGPU), 1x USB-C 3.1 (Z490), 3x USB-A 3.1 (Z490), 2x USB-A 3.0, 4x USB-A 2.0, 1x 2.5GBase-T (Intel I225-V ), 5x jack, 1x Toslink, Internal connections 1x USB-C 3.1 Key-A header (Z490), 1x USB 3.0 header (2x USB 3.0), 2x USB 2.0 header (4x USB 2.0), 6x SATA 6Gb / s (Z490), 1x TPM header, 1x Thunderbolt header 5-pin, 1x RTD3 header, Header cooling 2x CPU fan 4-pin, 4x fan 4-pin, 2x fan / pump 4-pin, 2x thermal sensor, Header lighting 2x 4-pin RGB (+ 12V / G / R / B, max. 2A), 2x 3-pin ARGB (+ 5V / DATA / GND, max. 5A), Buttons / Switches USB BIOS Flashback / Q-Flash Plus (internal), Audio 7.1 (Realtek ALC1220), DTS: X Ultra, Onboard graphics iGPU, Wireless WLAN 802.11a / b / g / n / ac / ax (2x2, Intel AX201), Bluetooth 5.1, RAID level 0/1/5/10 (Z490), Multi-GPU NVIDIA 2-Way-SLI (x8 / x8), AMD 2-Way-CrossFireX (x8 / x8), Power connections 1x 24-pin ATX, 1x 8-pin EPS12V, 1x 4-pin ATX12V, RGB lighting, 2 zones (chipset cooler, I / O cover), BIOS 1x 32MB (256Mb), Special features audio + solid capacitors, Diagnostic LED (segment display), Diagnostic LED (LED indicators), integrated I / O cover, 3x M.2 passive cooler, Manufacturer's guarantee three years (from date of production, processing via specialist dealer)
