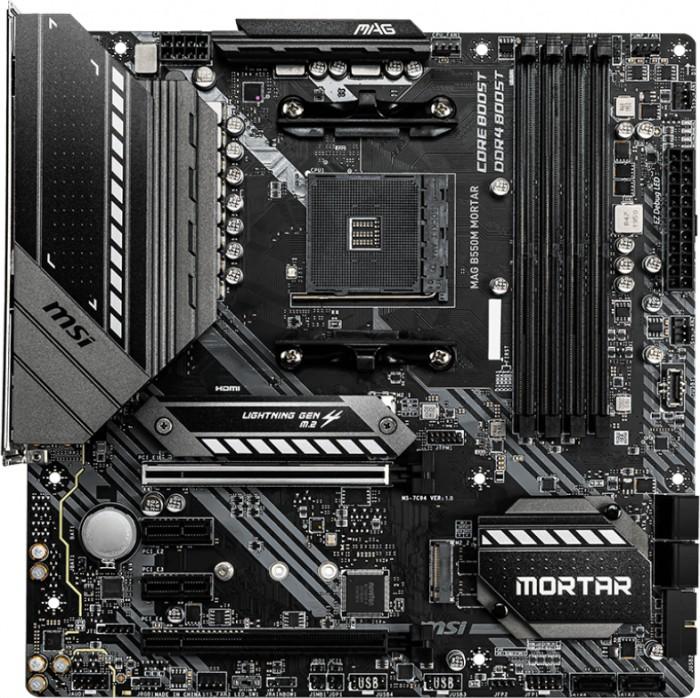

Emaplaat MSI Socket AM4 MAG B550M Mortar

Socket AM4, Form factor MicroATX, Chipset AMD B550, CPU compatibility Ryzen 4000G, Ryzen 3000, TDP limit: 105W, VRM 10 virtual phases (8 + 2), 6 real phases (4 + 2), RAA229004 (max. 8 phases), MOSFETs CPU 8x ISL99360, MOSFETs SoC 2x ISL99360, RAM 4x DDR4 DIMM, dual PC4-35200U / DDR4-4400 (OC), max. 128GB (UDIMM), Expansion slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1, 1x M.2 / M-Key (PCIe 4.0 x4 / SATA, 2280/2260/2242), 1x M.2 / M-Key (PCIe 3.0 x4, 2280/2260/2242), External connections 1x HDMI 1.4, 1x DisplayPort 1.2, 1x USB-C 3.1 (B550), 1x USB-A 3.1 (B550), 2x USB-A 3.0, 2x USB-A 2.0, 1x 2.5GBase-T (Realtek RTL8125B-CG ), 5x jack, 1x Toslink, 1x PS / 2 combo, Internal connections 1x USB-C 3.0 Key-A header, 1x USB 3.0 header (2x USB 3.0), 2x USB 2.0 header (4x USB 2.0), 6x SATA 6Gb / s (B550), 1x TPM header, 1x chassis intrusion Header, Header cooling 1x CPU fan 4-pin, 3x fan 4-pin, 1x fan / pump 4-pin, Header lighting 1x 4-pin RGB (+ 12V / G / R / B, max. 3A), 2x 3-pin ARGB (+ 5V / DATA / GND, max. 3A), Buttons / Switches USB BIOS Flashback (external), LED Switch (internal), Audio 7.1 (Realtek ALC1200), Graphics CPU, RAID level 0/1/10 (B550), Multi-GPU AMD 2-Way CrossFireX (x16 / x4), Power connections 1x 24-pin ATX, 1x 8-pin EPS12V, BIOS 1x 32MB (256Mb), Special features audio + solid capacitors, diagnostic LED (LED indicators), integrated I / O panel, 1x M.2 passive cooler
