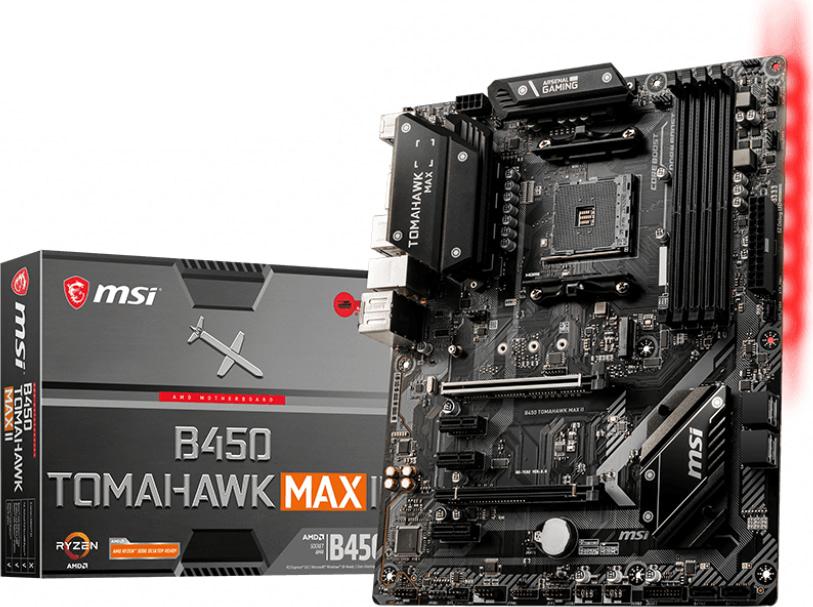

Emaplaat MSI Socket AM4 B450 Tomahawk Max II

Socket AM4, Form factor ATX, Chipset AMD B450, CPU compatibility Ryzen 3000, Ryzen 3000G, Ryzen 2000, Ryzen 2000G, Ryzen 1000, Athlon 3000G, Athlon 200G, without TDP restriction (manufacturer list), VRM 6 real phases (4 + 2), PWM controller: RT8894A (max. 6 phases), MOSFETs CPU 8x 46A 4C029N / 4C024N, MOSFETs SoC 4x 46A 4C029N / 4C024N, RAM 4x DDR4 DIMM, dual PC4-33066U / DDR4-4133 (OC), max. 128GB (UDIMM), Expansion slots 1x PCIe 3.0 x16, 1x PCIe 2.0 x16 (x4), 3x PCIe 2.0 x1, 1x M.2 / M-Key (PCIe 3.0 x4 / SATA, 22110/2280/2260/2242), External connections 1x DVI-D (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.1 (B450), 1x USB-A 3.1 (B450), 2x USB-A 3.0, 2x USB-A 2.0, 1x Gb LAN (Realtek RTL8111H), 6x jack, 1x PS / 2 combo, Internal connections 1x USB 3.0 header (2x USB 3.0), 2x USB 2.0 header (4x USB 2.0), 4x SATA 6Gb / s (B450), 2x SATA 6Gb / s (CPU), 1x serial, 1x TPM header, 1x chassis Intrusion header, Header cooling 1x CPU fan 4-pin, 4x fan 4-pin, 1x fan / pump 4-pin, Header lighting 2x 4-pin RGB (+ 12V / G / R / B, max. 3A), Buttons / Switches USB BIOS Flashback (external), Audio 7.1 (Realtek ALC892 / ALC897), Onboard graphics iGPU, RAID level 0/1/10 (B450), Multi-GPU AMD 2-Way-CrossFireX (x16 / x4), Power connections 1x 24-pin ATX, 1x 8-pin EPS12V, RGB lighting, 1 zone (right side), BIOS 1x 32MB (256Mb), Special features audio + solid capacitors, diagnostic LED (LED indicators)
