SMALLRIG 2905 Swivel and Tilt Adjustable Monitor Mount with Cold Shoe Mount

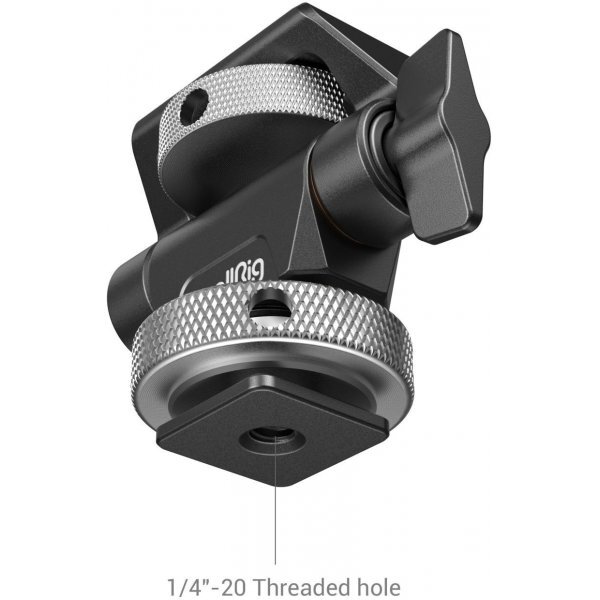

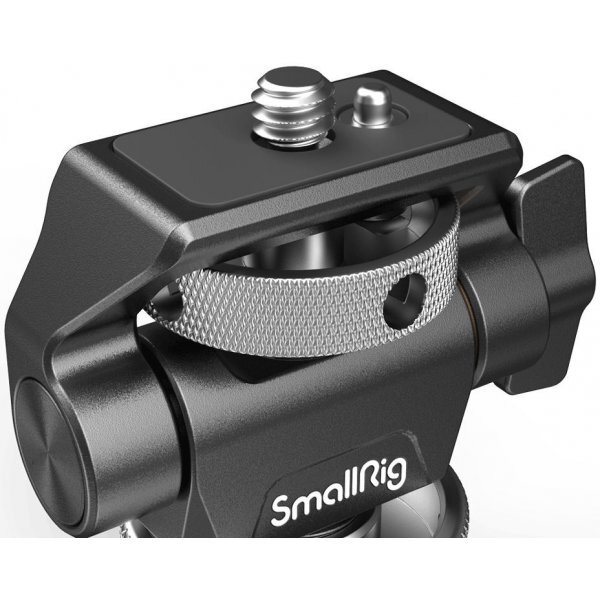

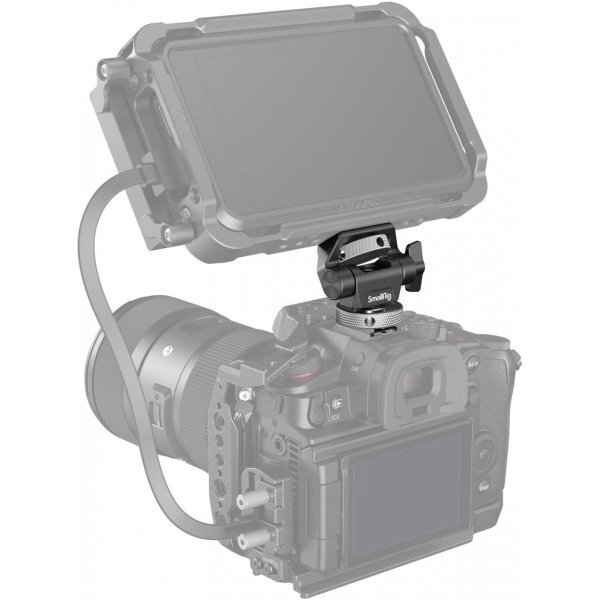

SMALLRIG 2905B Monitor MountThe SMALLRIG 2905B is a compact mount designed for 5" and 7" monitors, as well as microphones, lights, and other accessories equipped with a 1/4"-20 thread. The design allows for 360° rotation and up to 180° tilt, so you can comfortably position the screen at the right angle while recording. The bottom cold shoe mount allows you to attach the mount to a camera, camera cage, or handle, while additional 1/4"-20 threaded holes in the base enable you to connect accessories such as a Magic Arm.Stable Adjustment and Anti-Rotation ProtectionThe tilt axis resistance can be quickly adjusted using a knob, allowing you to adapt the mount to the weight of the attached equipment, while rotation is adjusted using an Allen wrench. The design has undergone a 10,000-cycle tilt test, after which the mechanism’s load capacity decreased by no more than 20%, confirming its durability under frequent use. Spring-loaded positioning pins and a silicone surface help prevent unwanted rotation of the monitor, and this feature is particularly useful when working with Ninja V and V+ monitors.Lightweight and Durable ConstructionThe mount is made of aluminum alloy and stainless steel, so despite its dimensions of 45 × 52.6 × 30 mm, it weighs only about 78 g. The maximum load capacity is less than 4.2 kg at a 90° angle, less than 2.5 kg at a 45° angle, and less than 2.3 kg at a 30° angle. The holes in the knurled screws allow you to use the included Allen wrench during installation and removal, making it easy to quickly set up the mount for use.IncludedSMALLRIG 2905B Monitor MountAllen key ManufacturerSMALLRIGModel2905BCompatibility5" and 7" monitorsRotation range360°Tilt range180°Bottom MountCold shoeTop Mount1/4"-20 screwAdditional Mounting Points1/4"-20 threaded holes in the baseMaximum Load at 90°< 4.2 kgMaximum load at 45° tilt< 2.5 kgMaximum load at 30° tilt< 2.3 kgProduct dimensions45 × 52.6 × 30 mmWeight78 gMaterialaluminum alloy, stainless steel
