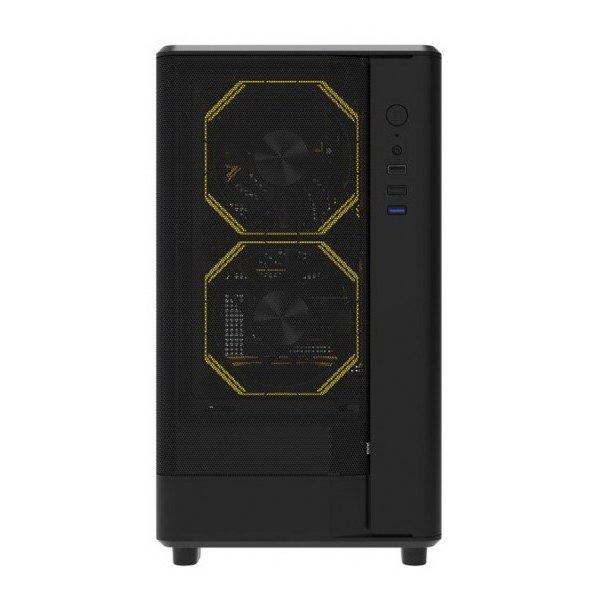

Korpus Darkflash DB330M Mesh Black

Darkflash DB330M Mesh computer case (black)Darkflash DB330M Mesh is a computer case designed for M-ATX and ITX standard motherboards. Its dimensions (368 × 218 × 400 mm) allow the construction of a compact set-up with a graphics card up to 305 mm long and CPU cooling up to 180 mm high. The design is based on a 0.5 mm SPCC steel frame and features a tempered glass panel and mesh front for efficient air or liquid cooling.Efficient air coolingThe Darkflash DB330M Mesh case supports up to 7 fans: 2 at the front, 2 at the bottom, 2 at the top and one at the rear. The top part of the design allows for the installation of fans in 120 or 140 mm sizes, while the remaining locations are provided for 120 mm fans only. This arrangement allows for the creation of a vertical cooling channel that promotes natural air circulation and efficiently dissipates heat from components.240 mm liquid coolingThe Darkflash DB330M Mesh allows you to mount a water cooler of up to 240 mm in the top. This allows you to install a high-performance AIO system without sacrificing other components. The maximum height of the air cooler is 180 mm.Mesh panel with filterThe front panel of the case is made of mesh, which improves airflow and also acts as a dust filter. Additional vents are also located on the top and bottom of the design.Space for longer GPUsA graphics card up to 305 mm in length can be mounted inside. The chassis offers 4 PCI slots, making it possible to mount two- and three-slot cards. The power supply compartment and cable space do not limit the length of the GPU.Glass side panelThe left panel is made of tempered glass to expose the computer's interior and components with RGB backlighting. The panel can be easily removed without tools.Separate space for cables and multiple portsThe back of the case features a contoured space and pass-through holes for orderly cable routing. This layout makes it easier to install components and improves airflow in the main compartment. The front panel features a USB 3.0 port, 2 USB 2.0 ports, one HD Audio port and a power button. This allows you to enjoy quick access to basic functions without having to reach the back of the case.ATX power supply compatibility and board supportThe bottom of the case has room for a standard ATX power supply. This makes it possible to mount full-power units without the space constraints typical of smaller enclosures. In addition, the Darkflash DB330M Mesh supports M-ATX and ITX motherboards, offering optimal conditions for building a home, office or gaming PC. The lack of pre-installed fans allows for individual selection of cooling components. ManufacturerDarkflashModelDB330M Mesh BlackHousing typeMidi TowerSide panelTempered glassMotherboard standardM-ATX, ITXPower supply standardAt the bottomSlots for internal drives3.5" HDD x2, 2.5" SSD x1Expansion card slots4Max PSU length210 mmMax length of graphics card305 mmMax height of CPU cooler180 mmMax number of fans7Fan mounting optionsTop: 120 mm x2 / 140 mm x2; Bottom: 120 mm x2; Front: 120 mm x2; Rear: 120 mm x1Water cooling mounting optionsTop: 240 mmNumber of fans installedNo fans installedType of fansNo fans installedButtons and controlsPowerConnectorsUSB 3.0 x1, USB 2.0 x2, HD AudioMaterial0.5 mm SPCCColorBlackHeight400 mmWidth218 mmDepth368 mmWeight3.8 kg
