QiDi Max 4 3D printer

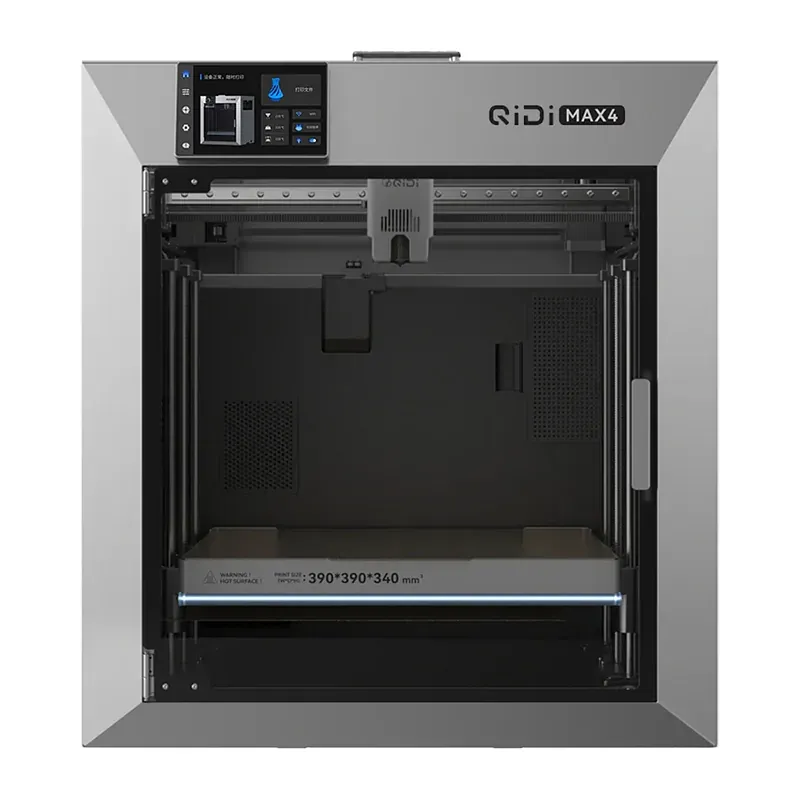

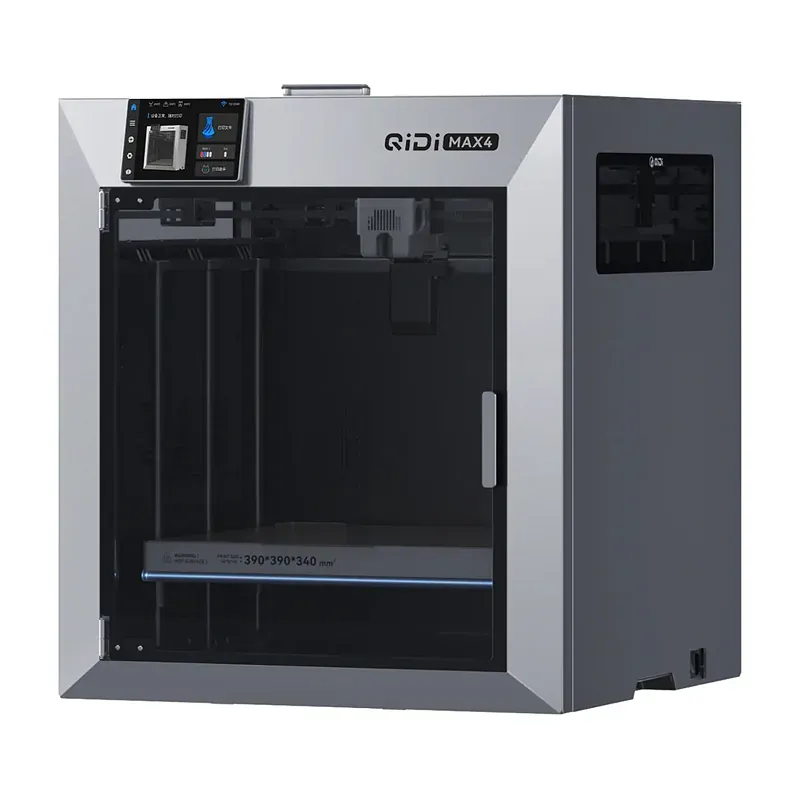

QIDI Max 4 3D printerThe QIDI Max 4 is an advanced 3D printer designed for large projects and working with demanding materials. The large workspace, high head temperature, and active chamber heating allow you to print both standard filaments and engineering materials. The CoreXY design, fast closed-loop motors, and extensive cooling system ensure that the device works quickly, stably, and precisely.Large workspaceThe QIDI Max 4 offers a working area of 390 × 390 × 340 mm. Such a large print volume allows you to create large models in one piece without having to divide the project into smaller parts. This saves you time on assembly and maintains the strength of the finished model.High print head temperature for technical materialsThe print head reaches a temperature of up to 370°C, which allows you to work with a wide range of filaments – from PLA and PETG to more demanding materials such as PC or carbon fiber composites. The ceramic throat and improved heat dissipation module reduce the risk of nozzle clogging, keeping printing stable even at high temperatures.Active chamber heatingThe third generation of active chamber heating reaches temperatures of up to 65°C. Combined with the air circulation system, this creates a stable environment for printing materials that are prone to deformation. As a result, even large models made of PLA or ABS retain their geometry and do not curl at the edges.Very fast and precise printingThe use of FOC stepper motors in a closed loop increases drive efficiency by up to 65%. The maximum printing speed reaches 800 mm/s, and the acceleration reaches 30,000 mm/s². This configuration significantly reduces project completion time while maintaining high accuracy.Stable CoreXY designThe CoreXY motion system with 10 mm wide 1.5GT belts ensures high rigidity and accuracy of the head guidance. The X-axis uses a high-hardness linear guide, the Y-axis uses 12 mm steel shafts, and the Z-axis uses four guides and two independent motors with trapezoidal screws. This allows the printer to remain stable even with large and heavy models.Automatic leveling and print controlThe printer is equipped with automatic table leveling with a load cell sensor integrated into the hot end. The monitoring system includes a filament end sensor, an AI camera, and a print resume function after a power failure. This makes the printing process safer and requires less manual control.Air filtration and convenient operationThe QIDI Max 4 has a 3-stage air filtration system consisting of a G3 pre-filter, HEPA H12 filter, and activated coconut carbon. The printer is also equipped with a 5-inch touch screen, Wi-Fi and Ethernet connectivity, and a 1080p camera for viewing and recording timelapse footage of the printing process.IncludedFilament holder with pneumatic headFilament spool holderHolder coverCase door handleSpare parts kitMechanism maintenance oil7 mm wrenchPower cordEthernet cableUSB flash drive with software and filesFlat screwdriverAdhesive for the work surface to improve print adhesionSet of Allen keys (H1.27, H1.5, H2, H2.5, H3)Scraper for removing prints from the table ManufacturerQiDiModelMax 4Working area390 × 390 × 340 mmPrinter dimensions558 × 578 × 612 mmWeight40 kgMaximum head temperatureup to 370°CMaximum table temperatureup to 120°CChamber temperatureup to 65°C (active heating – 3rd generation)Maximum print speed800 mm/sMaximum acceleration30,000 mm/s²ExtruderDirect Drive, hardened steel double gearsSupported filamentsPLA, ABS, ASA, PETG, TPU, PA, PC, carbon fiber and glass fiber compositesFilament diameter1.75 mmMaterial flow40 mm³/sAutomatic levelingyes (load cell sensor in hotend)Filament sensorYes – filament end detectionAir filter3-in-1: G3 + HEPA H12 + activated carbonCamera1080p with timelapse supportConnectivityWi-Fi 2.4/5 GHz, Ethernet, USBMemory32 GB eMMC + USB 2.0Screen5" touchscreen 800 × 480Supported file formatsSTL, OBJ, 3MF, STEP, STPSoftwareQIDI Studio, OrcaSlicer, PrusaSlicer, and othersPower supply110V / 220–240V AC, 50/60 HzRated power150 W + 500 W (chamber heating) + 700 W (heating table)
