Homematic IP HmIP-WTH-B-A termostaat RF Söehall

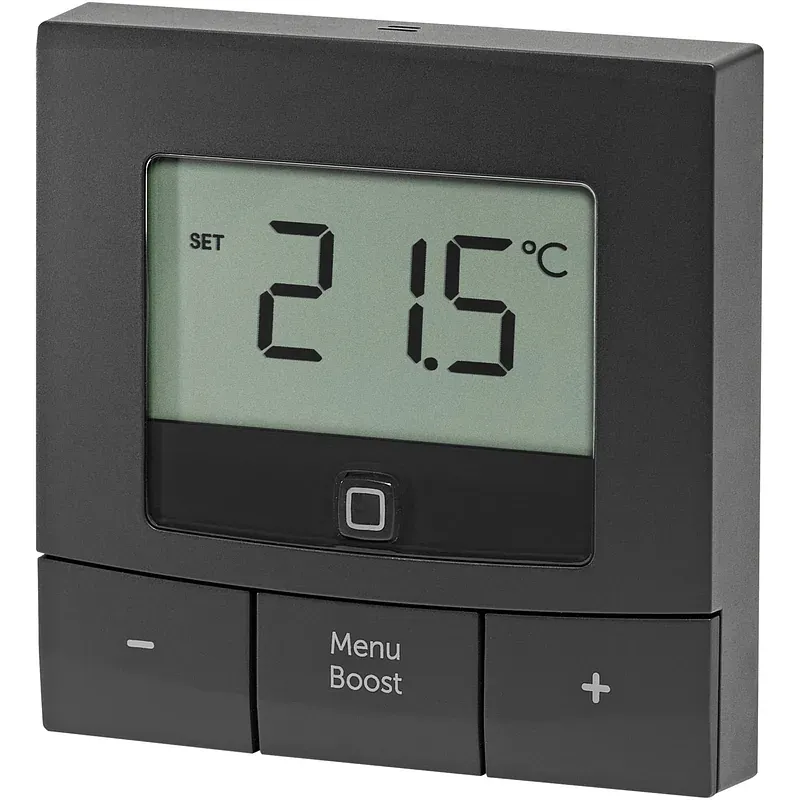

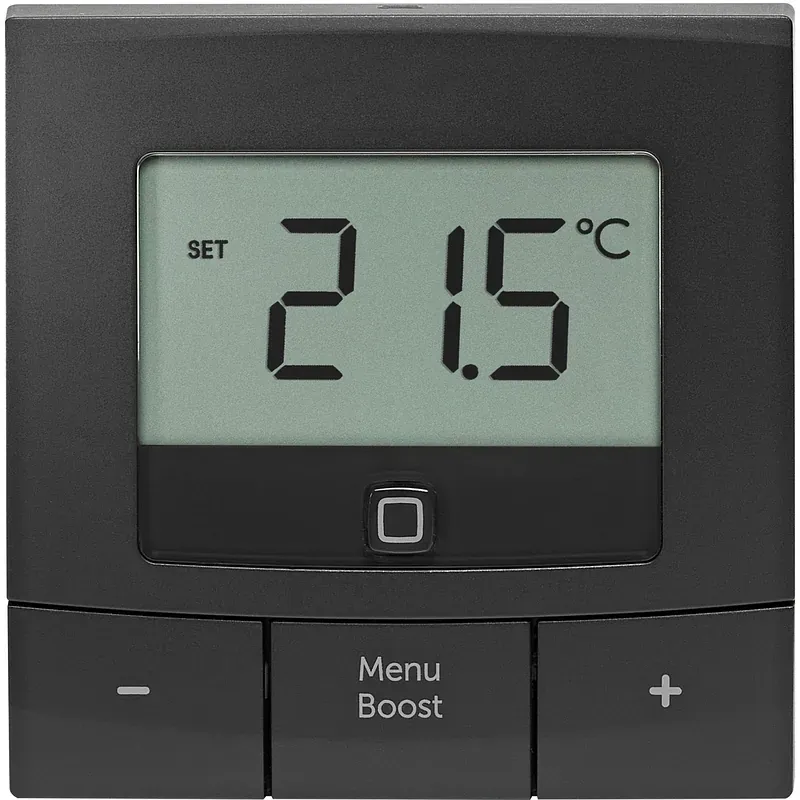

With the Homematic IP wall thermostat - basic, time-controlled room temperature control can be implemented in just a few simple steps using Homematic IP radiator thermostats or Homematic IP underfloor heating actuators. Individual temperature profiles with up to 13 changes per day can be defined in 3 or 6 adjustable profiles (3x heating/3x cooling). The number of profiles depends on whether the wall thermostat is used to control Homematic IP radiator thermostats (3 heating profiles) or underfloor heating actuators (3 heating and 3 cooling profiles). The setup is done via the Homematic IP app. After setup, three easy-to-use buttons are available for manual operation, which enable precise temperature selection in 0.5°C increments, rapid heating using the boost function and settings for the heating profiles. The LC display makes it much easier to read the target and actual temperatures. The sensor can be attached to the desired position using the adhesive strips provided or using screws. It can also be placed on an existing flush-mounted box. Thanks to the long-lasting LR6 battery power supply (up to 5 years) and radio communication, no additional wiring is required. Item no.: 100068212 Type Thermostat Color anthracite EAN4047976605545 Manufacturer No. 160554A0 Device properties Display/Display LCD Range 250 m Schedules Switching points 13 pieces Indoor application Max. reception range (open field) 250 m Protection Protection class IP20 Operating temperature range 0 - 50 °C Connection type radio Radio frequency from 868 MHz to 868.6 MHz Further information Radio frequency band: 868.0-868.6 MHz, 869.4-869.65 MHz Note Operation requires connection to one of the following solutions: Homematic IP Access Point, Central CCU3, third-party partner solutions Accessories available Homematic IP wall thermostat – basic, wall bracket, double-sided adhesive strips (2x), screws (2x) and dowels (2x), 1.5 V LR6/Mignon/AA batteries (2x), operating instructions Dimensions Width: 85 mm x Height: 25 mm x Depth/Length: 85 mm
