Võrguseade Digitus DN-93617-12 keystone-moodul

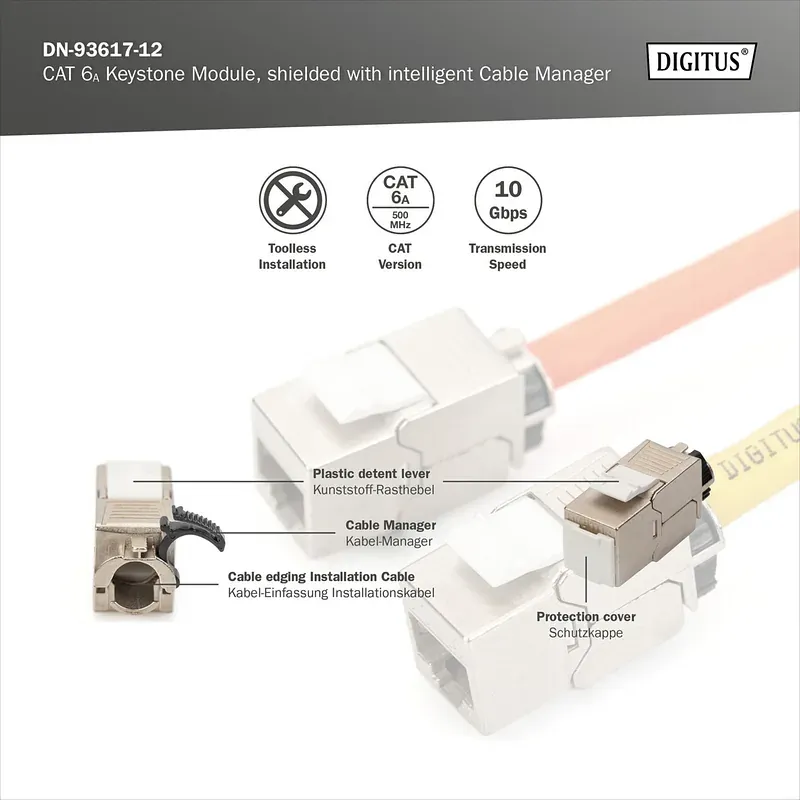

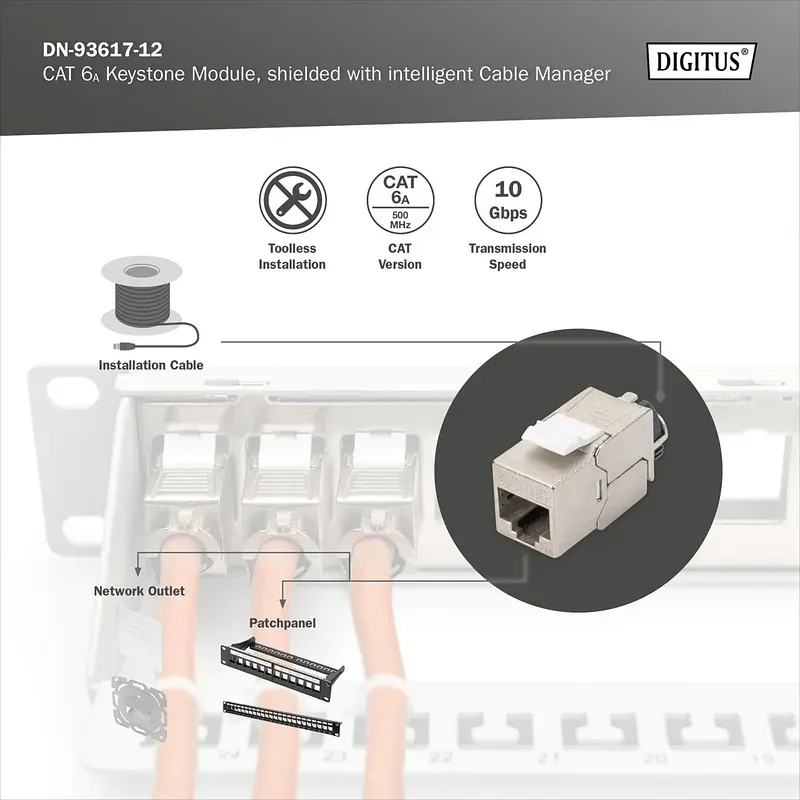

The shielded CAT 6A Keystone module set DN-93617-12 from Digitus impresses with its future-oriented standards and high-end quality for networks. The modules have a 360° shield contact, a locking lever and a resealable, intelligent cable manager for strain relief and cable fixation. The compact design allows a series installation in a 483 mm (19") 1U panel. The tool-free installation is carried out via LSA strips, color-coded according to EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes. The Cat-6A Keystone module with 360° shielding supports transmission speeds of up to 10 Gbit/s & 500 MHz Connection with network installation cables of category Cat 6A or higher (suitable for PoE/PoE+/4PPoE). The cable fixation using re-closable quick catches allows the keystone module to be opened subsequently and thus used multiple times, e.g. in field applications. In conjunction with a modular patch panel and modular network connection boxes, the Cat.6A keystone modules are ideal for contemporary, structured building cabling The mounting connection of the Category 6A / Class EA keystone module enables tool-free installation of network cables with wire cross sections between AWG 26/7 and 22/1. Keystone module type Color silver EAN 4016032491057 Manufacturer no. DN-93617-12 Made in China Form keystone module Number 12 pieces Network area Connection 1x cable end without plug 1x RJ-45 (socket) Taps 2 Category plug Cat.6a Features adapter, set Feature strain relief and cable fixation using an intelligent cable manager, tool-free assembly connection Further information Category 6a 10GBase-T, 500 MHz, Suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 802.3at, 802.3bt), suitable for distribution panel and junction box mounting, cable installation via insulation displacement terminals, color coded according to EIA/TIA 568 A & B Note Tool-free installation using LSA insulation displacement terminals, color-coded according to EIA/TIA 568 A & B Dimensions Width: 14.5mm x Height: 21mm x Depth/Length: 34.5mm Weight 20 grams
