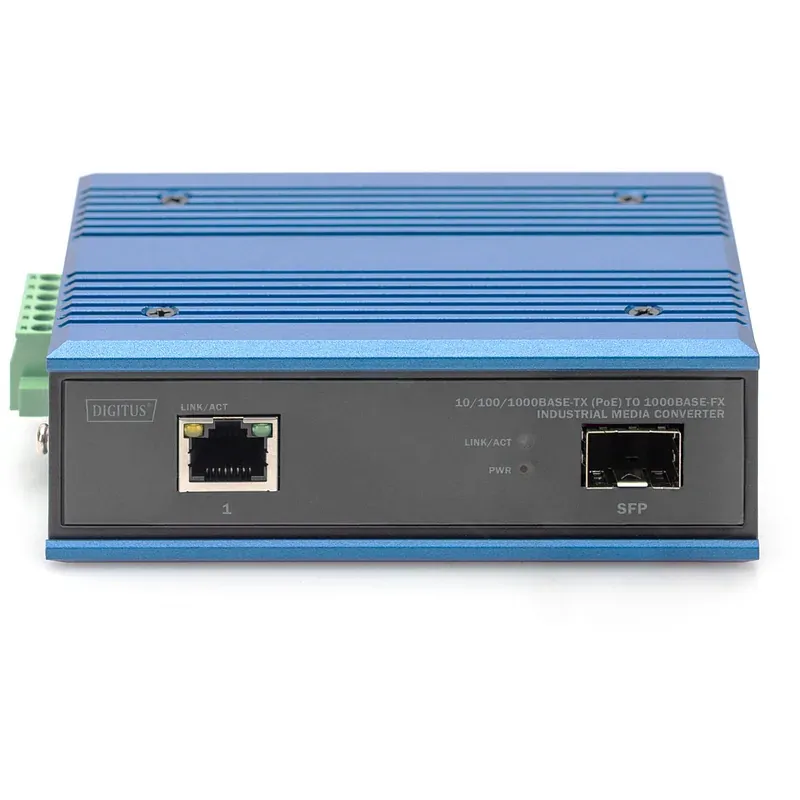

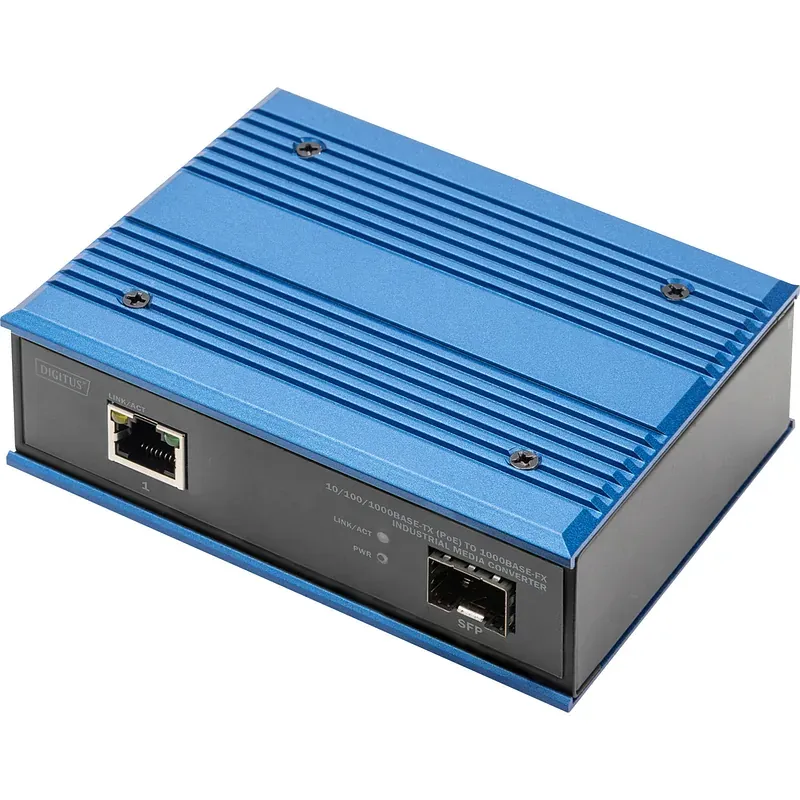

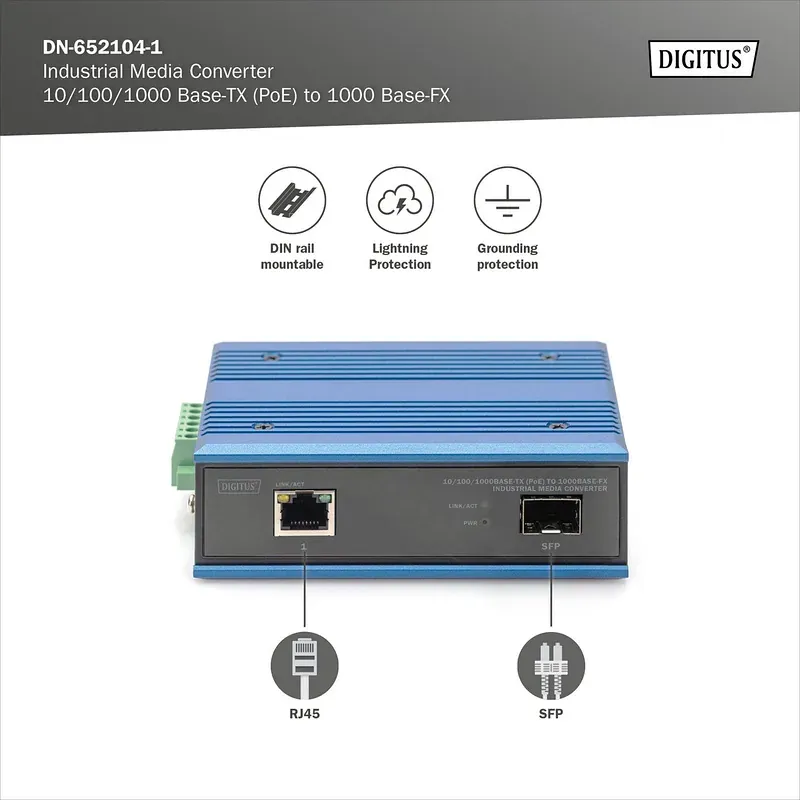

Võrguseade Digitus DN-652104-1 meediakonverter 1000 Mbit/s Must, Sinine

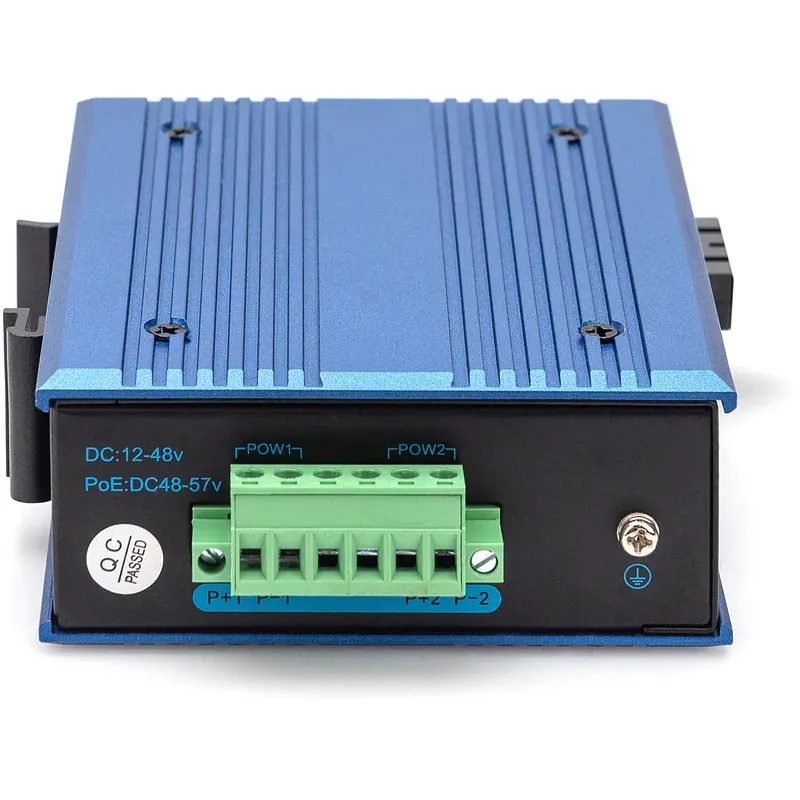

• The use of high quality photoelectric integration module to provide good optical and electrical characteristics • Ensure reliable data transmission and long working life • Support full duplex or half duplex mode, with automatic negotiation capability • Network port support automatic cross identification • Internal storage and forwarding mechanism, support a variety of protocols • In line with industrial operating standards, the average trouble-free work in more than 300,000 hours • Working power supply: DC 48-57V to provide reverse protection • Interface: 1-port 10/100/1000 Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function, supplying 30W PoE, compatible with 802.3at/at • 10/100/1000 Base-TX Port: 1 port RJ-45 auto-MDI / MDI-X • PoE Standard: IEEE802.3af/ IEEE802.3at • PoE ports: +1 Port PoE • Power Output: Max. 15.4 watts (IEEE 802.3af), Max. 30 watts (IEEE 802.3at) • PoE port Auto detect af/at devices • Output Voltage: DC48V • Power Pin Assignment: 1/2+;3/6- • Power Type: End-span(Mid-span optional) • 1000 Base-FX Port: SFP Slot • Optical Frequency: Vary on module • Performance Specification: Bandwidth: 14 Gbps, Packet Buffer Memory:1.2 Mbit, Packet Forwarding Rate:10.5 Mpps, MAC Address Table: 2K • Installation: DIN rail • Maximum Frame Size: 9000 bytes packet size • Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex • Enclosure: IP40 aluminum housing • LED Indicator: Power: Red, Fiber: Link 2(Green), Ethernet: Yellow • Power Input: 48 to 57V DC redundant power • Power Consumption: 300,000hours • Dimensions (W x D x H): 118x 92.4 x 40 mm • Weight: Product Weight: 0.4KG, Packing Weight: 0.53KG • Working Environment: Working temperature: -40～80℃, Storage temperature: -40～80℃, Relative Humidity: 5%~95 %(no condensation)
