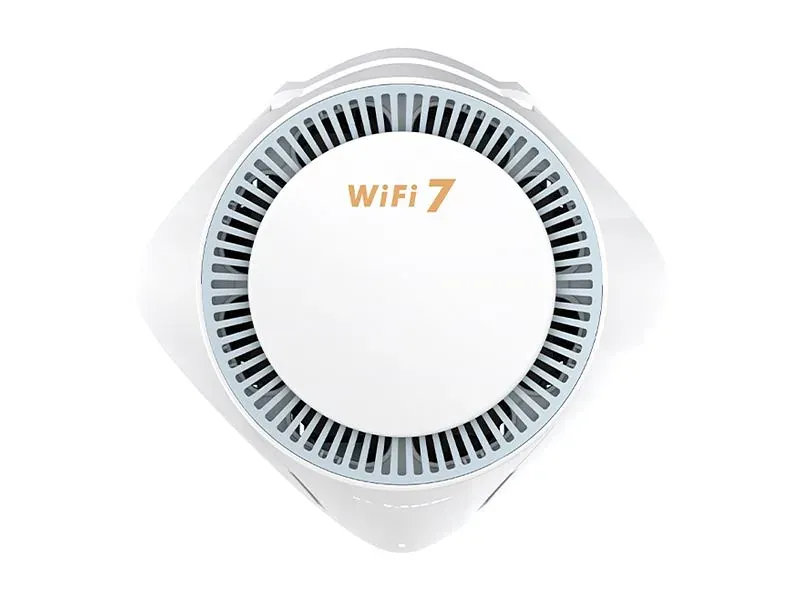

D-Link G536 5G NR BE3600 Wi-Fi 7: a modern router that allows you to share a fast 5G or 4G/LTE cellular connection with wired and wireless devices. Just insert a Nano SIM card to create a home or business network without the need to install a permanent cable connection. The router can also use a wired WAN connection and automatically switch between mobile Internet and Ethernet in the event of a primary link failure. The 5G NR modem provides theoretical download speeds of up to 4.67 Gb/s and upload speeds of up to 1.25 Gb/s in SA mode. If there is no 5G coverage, the device can automatically use the 4G/LTE network, offering download speeds of up to 1.6 Gb/s. Two cellular antennas can be replaced with optional external antennas connected to SMA connectors, which allows you to improve signal quality in rooms with weaker coverage. The dual-band Wi-Fi 7 BE3600 network reaches total speeds of up to 3,600 Mb/s: up to 2,882 Mb/s in the 5 GHz band and up to 688 Mb/s in the 2.4 GHz band. Multi-Link Operation and 4K-QAM technologies improve bandwidth utilization, reduce latency and increase connection stability when streaming, gaming, video conferencing and working with multiple devices. The router can support up to 128 devices simultaneously. Two 2.5 Gb/s Ethernet ports allow you to connect computers, switches, NAS servers and other devices that require a fast wired connection. One of the ports can function as WAN or LAN, providing flexible network configuration and the ability to use a wired backup connection. The network can be configured and controlled using the D-Link FALCON application for Android and iOS devices or through the browser-based administration panel. The router supports WPA3 encryption, guest network, parental controls, SPI firewall, IP address filtering and DMZ function. Compatible with select D-Link Wi-Fi Mesh devices to extend your wireless coverage. Device type 5G NR Router with Wi-Fi 7 Manufacturer number G536/E D-Link G536 model Cellular network standard 5G NR, 4G LTE and 3G 5G SA and NSA modes Maximum 5G SA download speed Up to 4.67 Gb/s 5G SA maximum upload speed Up to 1.25 Gb/s 5G NSA maximum download speed Up to 4.67 Gb/s 5G NSA maximum upload speed Up to 836 Mb/s LTE maximum download speed Up to 1.6 Gb/s Maximum upload speed LTE Up to 211 Mbps SIM card type Nano SIM, 4FF format Number of SIM slots 1 Wi-Fi standard Wi-Fi 7, IEEE 802.11be Supported Wi-Fi standards IEEE 802.11be, 802.11ax, 802.11ac, 802.11n, 802.11g, 802.11b and 802.11a Wi-Fi Class BE3600 2.4 GHz and 5 GHz Wi-Fi bands Maximum combined Wi-Fi speed 3600 Mbps Maximum speed on the 5 GHz band 2882 Mbps Maximum speed on the band 2.4 GHz 688 Mb/s Multi-Link Operation Yes 4K-QAM Yes Maximum number of connected devices 128 Ethernet ports 1x 2.5GbE WAN/LAN and 1x 2.5GbE LAN Automatic link switching Yes, between cellular and Ethernet WAN Number of cellular antennas 8 internal External antenna connectors 2x SMA Number of Wi-Fi antennas 5 internal D-Link Wi-Fi Mesh Supported with selected devices Wi-Fi WPA, WPA2 and WPA3 encryption WPS fast connection Stateful Packet Inspection firewall Spoofing protection Anti-spoofing IP address filtering Yes DMZ Yes Guest network Yes Parental controls Yes Management D-Link FALCON application and browser-based administration panel Supported application systems Android and iOS Power, WPS and Reset buttons LED indicator Power, device status and WPS 12 V power supply / 2 A Operating temperature From 0°C to 40°C Operating humidity From 10% to 90%, non-condensing Dimensions 137 x 146 x 205 mm Weight 684 g Color White
