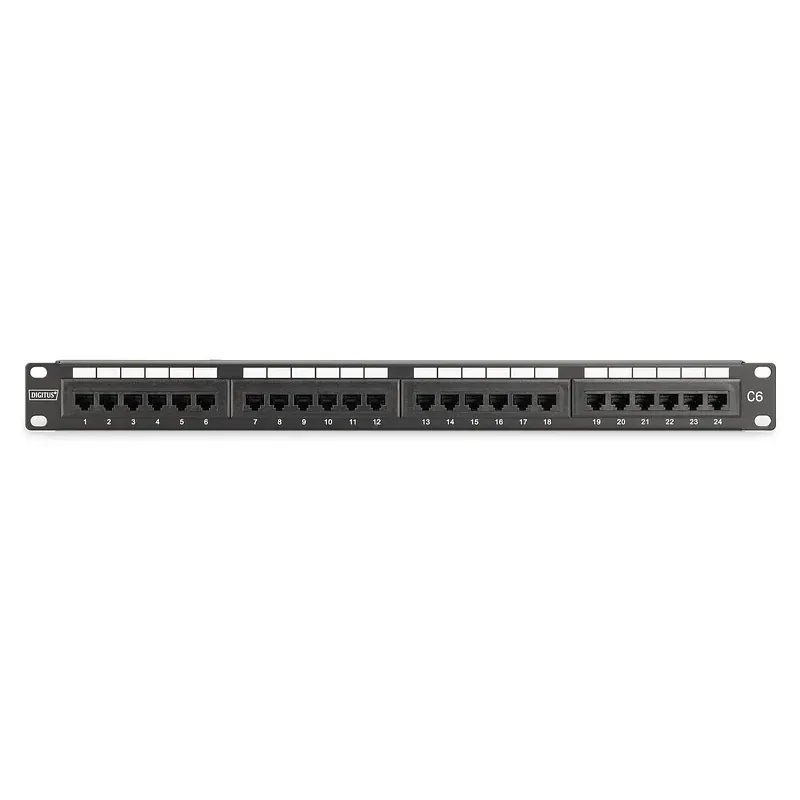

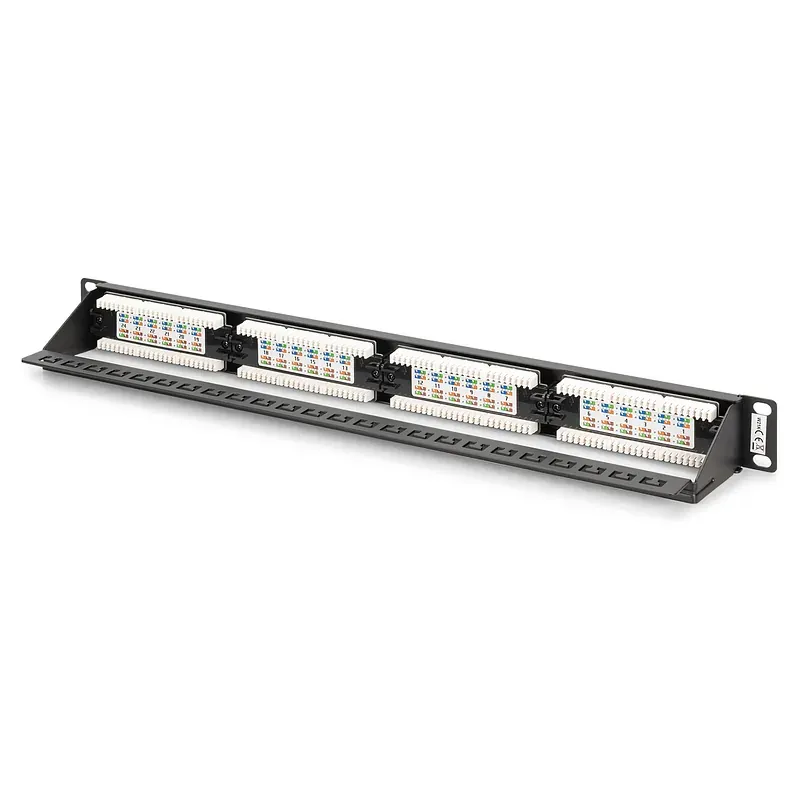

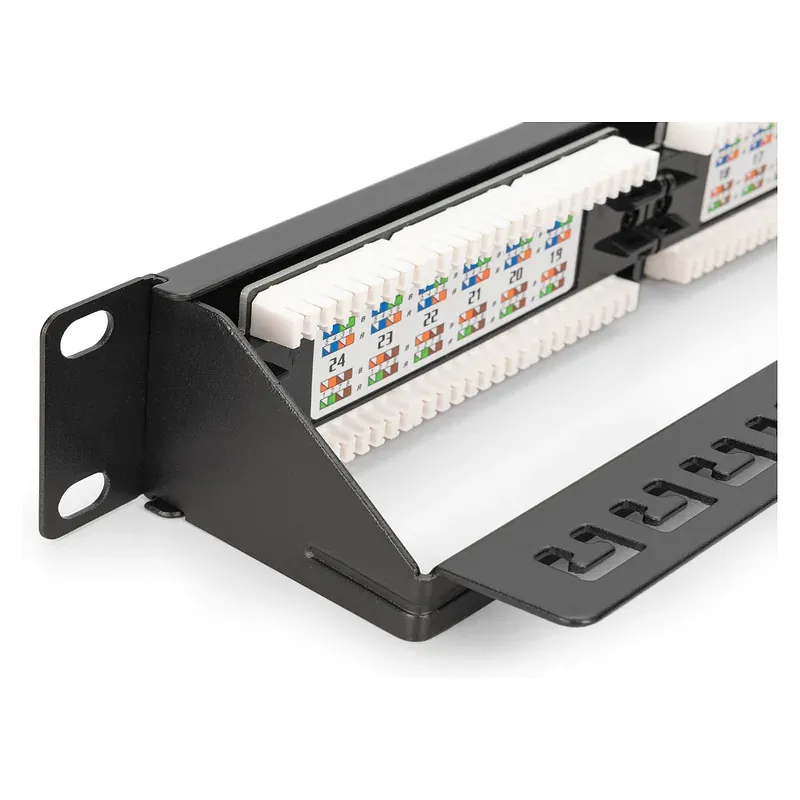

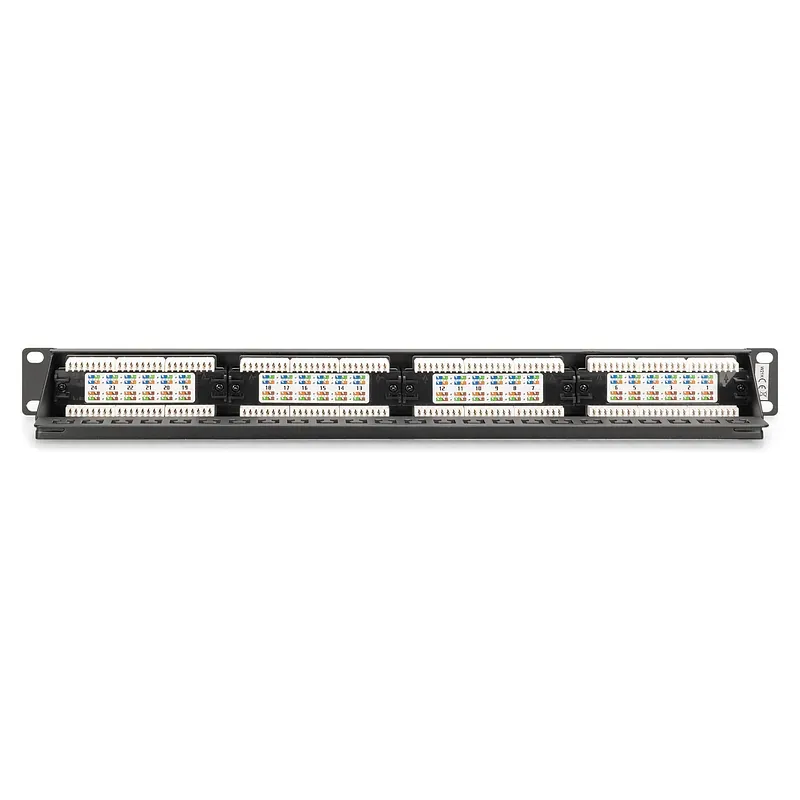

Võrguseade Digitus DN-91624U-CR pistikupesa 1U

• Application areas: Up to 250 MHz, 1GBase-T, PoE • Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C • General properties: • Suitable for 483 mm (19") rack mounting • RJ45 sockets, 8P8C • Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B • Cable fixing by means of quick latches • Mechanical properties: • Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110 • RJ45 socket material: ABS UL 94V-0 • Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact • RJ-45 shielding: Nickel-plated bronze • LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze • Earthing wire: Not included in the scope of delivery • Printed circuit board: FR4, UL 94V-0 • Physical properties: • Insertion force: 30N max. (IEC 60603-7-5) • Tensile load: 7.7 kg between socket and plug • Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) • Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 • Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 • Core receptacle: 22-26 AWG solid and stranded conductors • Insulation resistance: > 500 MOhm • Contact resistance: < 20 milliOhms • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
