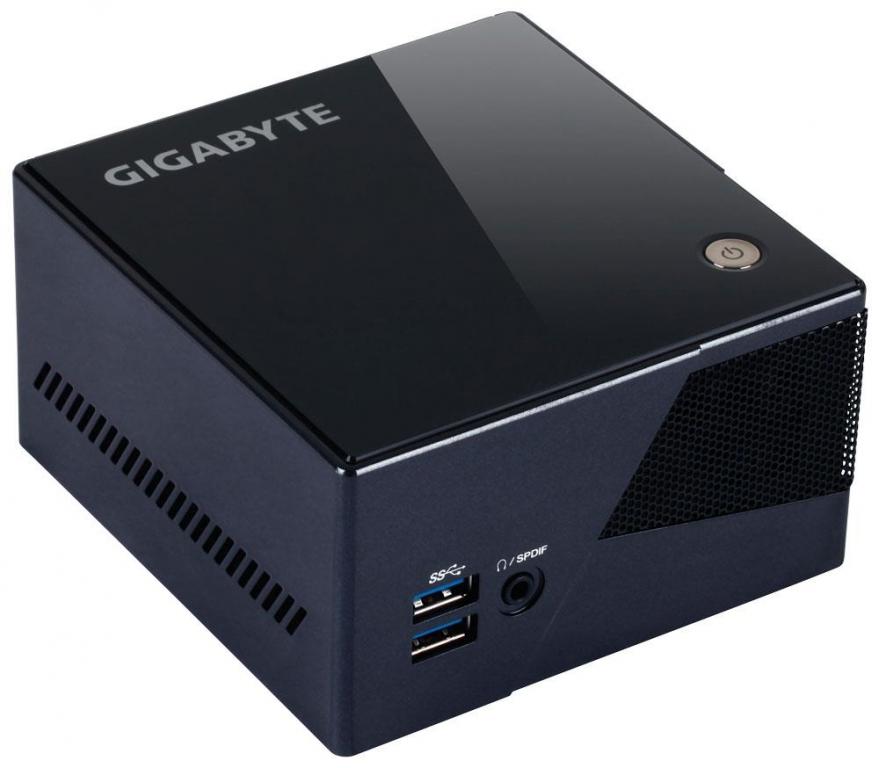

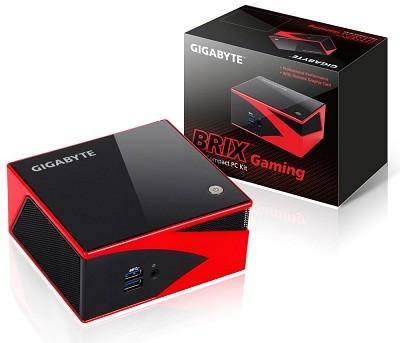

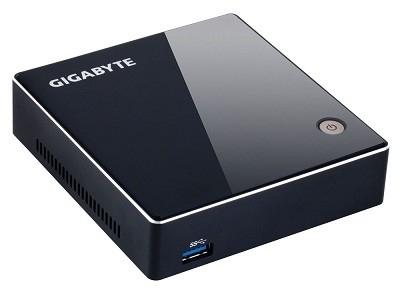

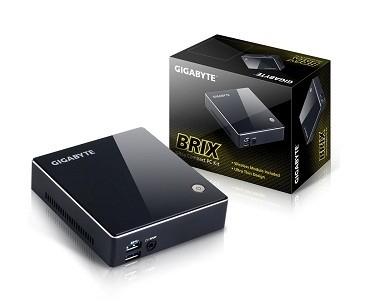

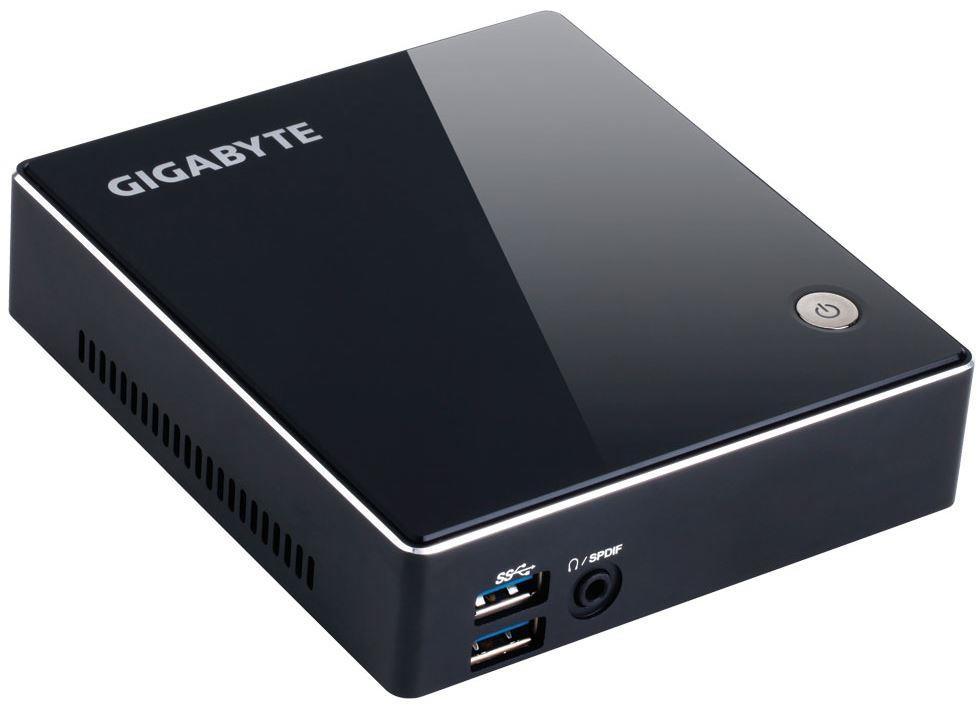

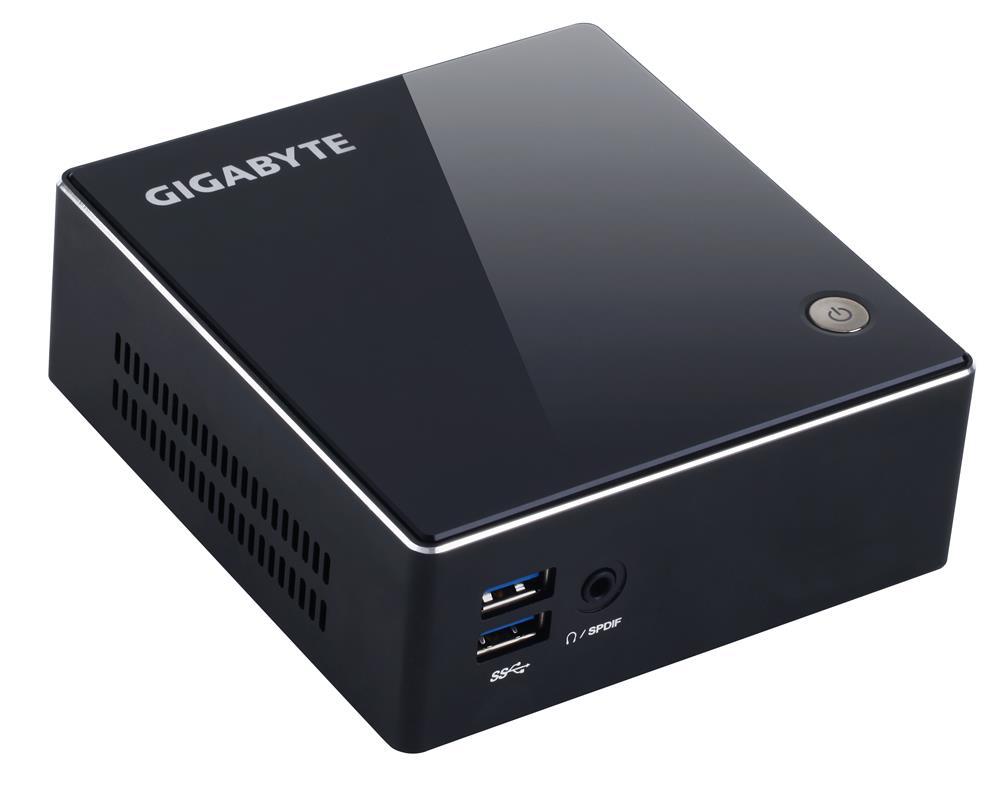

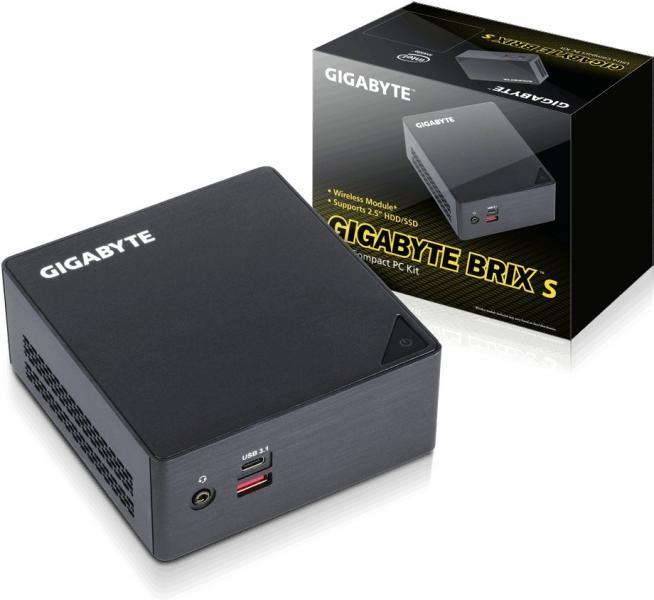

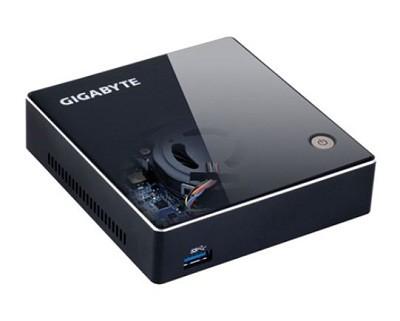

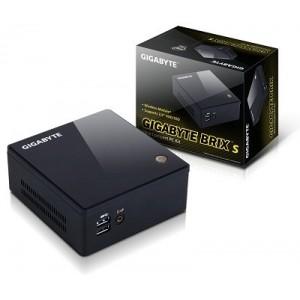

The BRIX from GIGABYTE is an ultra compact (29.9 x 107.6 x 114.4 mm) and versatile DIY PC kit available with a broad choice of processors covering a range of performance points. The BRIX redefines the desktop PC in terms of miniaturization with a form factor that sits in the palm of your hand. Ideal for compact HTPC builds or as a standard desktop in the home or office, the BRIX doesn’t hold back in terms of display and peripheral connectivity, or raw performance.Supports dual display video output via HDMI and mini DisplayPort.Includes 802.11n Wi-Fi Mini PCIe module.Includes VESA bracket for discreet display and wall mounting.Dimensions: 29.9 x 107.6 x 114.4 mm.

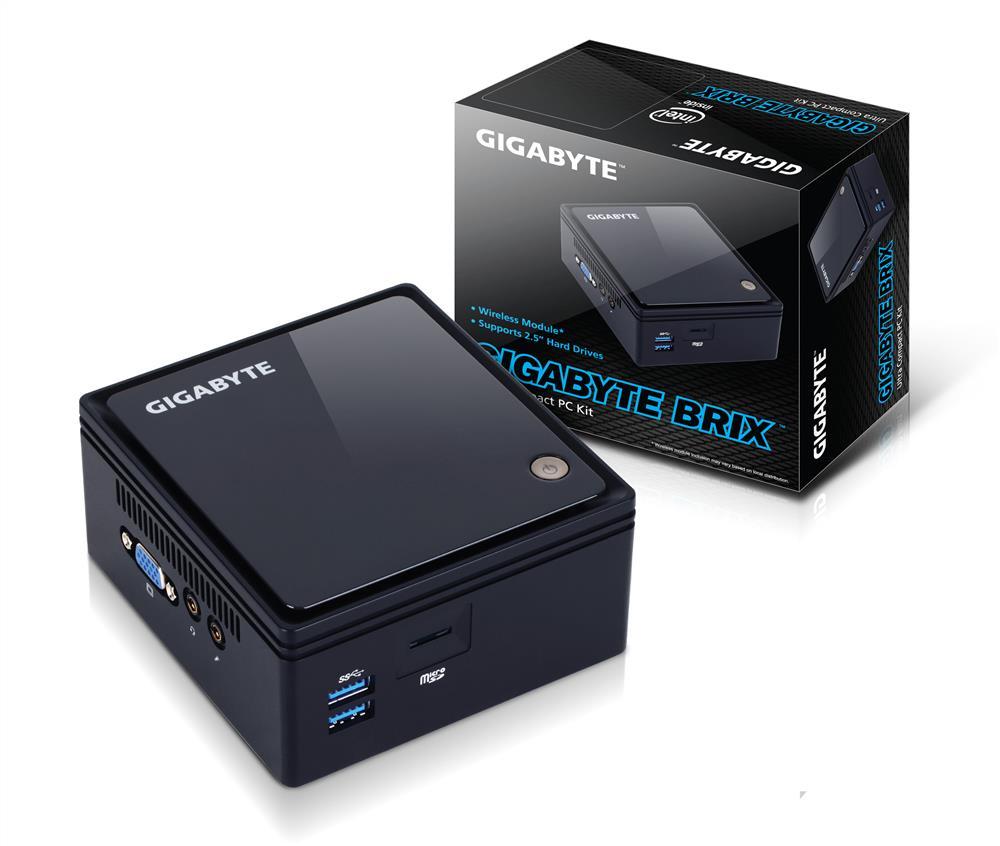

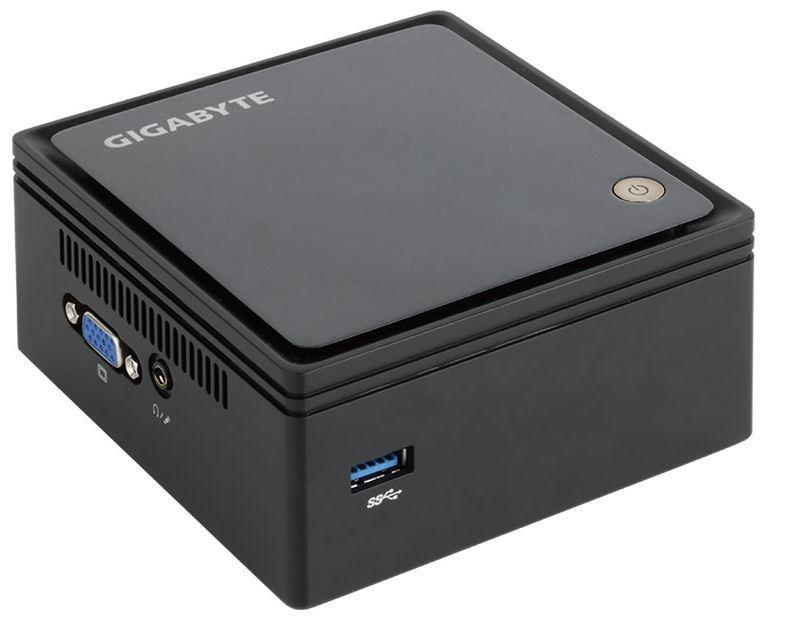

PC BRIX CMD-2955U, Ultra Compact PC Kit - 1 x C 2955U / 1.4 GHz - RAM 0 MB - no HDD - HD Graphics - Gigabit LAN - WLAN : 802.11b/g/n, Bluetooth 3.0, Bluetooth 4.0 - no OS
Intel Core i3-5010U / 2.1 GHz, Intel HD Graphics 5500, 2xSO-DIMM DDR3L slots (DDR3 1.35V) (max.16gb), Gigabit LAN, Wi-Fi 802.11ac, Bluetooth 4.0, Realtek ALC283, HDMI, Mini DisplayPort, 1xmSATA, 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card, USB 3.0, RJ45, Supports 75 x 75 and 100 x 100 mm VESA, NO Suppoort 2.5” HDD/SSD
CPU Intel Core i5-6200U 2.3GHz / 2.8GHz|2xM.2|DDR3/DDR3L|Frequency speed 1600 MHz|Memory slots 2|1xHDMI|1xMini DisplayPort|1xMicrophone|4xUSB 3.0|1xDC jack for AC addapter|1xHeadphones jack|1xRJ45|Built-in CPU model i5-6200U|Video|LAN Gigabit|Audio
Intel Core i7-6500U 2.5/3.1GHz, 2 x SO-DIMM DDR3L slots (DDR3 1.35V), 1x2.5", Gigabit LAN, Realtek ALC255, Intel HD Graphics 520, 1xM.2 2280, HDMI, miniDP, 4xUSB 3.0, VESA 75 x 75 and 100 x 100 mm
Redefining the Desktop PCChallenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a brushed aluminum surface chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.Intel® Thunderbolt™ 3 Controller, Opening a World of New PossibilitiesThunderboltThe new Thunderbolt™ 3 protocol, which is available over a USB Type-C™ connector on the back panel of the GIGABYTE BRIX T models, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2, which is able to drive a 4K resolution display at 60 FPS, and USB 3.1, also backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities. Additionally, Thunderbolt 3 over USB Type-C has the ability to daisy-chain up to 6 devices, helping you to declutter your desktop and have a true one-cable solution.Dual DisplayWith support for HDMI and DisplayPort, the BRIX can power two displays simultaneously, making a perfect choice as a high productivity PC in professional and home environments, or in any number of industrial and commercial multi-display applications.Flexible Compact PC KitThe BRIX is sold as a DIY PC kit, shipping with a NGFF M.2 Wi-Fi module pre-installed, plus a power adapter and cable conforming to local standards. Requiring only system memory and M.2 SSD, the BRIX gives users the flexibility to independently choose integrated storage and system memory size, without the trouble of sourcing components that are not widely available on the retail market.Extreme Intel® USB 3.1 ControllerGIGABYTE introduces the fast 10Gb/s USB3.1 Gen2 protocol to its BRIX units over the new reversible USB Type-C™ port. Powered by the Intel® USB 3.1 controller which utilizes 4 PCIe Gen 3 lanes, the GIGABYTE BRIX Type-C™ port is presented with a wide and uncompromised bandwidth to reach the limits of the USB 3.1 protocol and make back-ups or file transfers a quick operation, Additionally, USB 3.1 is backwards compatible with USB 2.0 and 3.0 making the GIGABYTE BRIX a versatile and widely compatible small form factor PC over a wider range of devices. Connecting the Future - USB Type-C™: The World's Next Universal ConnectorReversible Dual USB Type-C™ with USB 3.1The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed. Powered by the Intel® USB 3.1 controller, this little port provides the best USB Type-C™ experience possible.* Display feature may vary by model.USB 3.0 and Network ConnectivityGIGABYTE BRIX™ also includes a M.2 module offering IEEE 802.11ac Wi-Fi and the latest Bluetooth 4.2, providing connectivity for low power Bluetooth devices and peripherals, as well as allowing users to easily connect mobile devices.VESA SupportBundled with a VESA bracket, the BRIX can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This makes it simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.2.5” SATA Hard Drive SupportUtilizing SATA III 6Gb/s high speed data transfer technology, the GIGABYTE BRIX s supports the installation of one 2.5” SATA hard drive and one M.2 SSD module. This allows for optimized storage configurations which combine fast SSD performance with larger capacity hard drives.Protsessori pesaLGA 1356 (Socket B2)Sisseehitatud protsessorJahProtsessori perekond6th gen Intel® Core™ i5Protsessori sagedus2,3 GHzProtsessori mudeli5-6200UProtsessori litograafia14 nmProtsessorituumad2Protsessori võimendussagedus2,8 GHzProtsessori harud4Jahutusvõimsus (TDP)15 WMälupesa tüüpSO-DIMMMälukaardi pesade arv2Maksimaalne sisemälu32 GBToetatud mälu taktsagedused2133 MHzToetatud mälutüübidDDR4-SDRAMIntegreeritud kaardilugejaEiOptilise seadme tüüpEiIntegreeritud graafikaadapterJahGraafikaadapteri perekondIntelEthernet LANJahWiFiJahBluetoothJahBluetoothi versioon4.2USB 3.0 (3.1 Gen 1) A-tüüpi portide hulk4HDMI-portide arv1USB 3.1 (3.1 Gen 2) C-tüüpi portide hulk1HDMI-versioon2.0MikrofonisisendJahKõrvaklapiväljundite arv1Ethernet LAN (RJ-45) pordid1DVI-portEiMini DisplayPortide arv1PCI Expressi pesade versioon3.0Keretüüp0.6 l suurune PCToote värvMustToote tüüpMini PC Barebone (korpus koos emaplaadiga)Installitud operatsioonisüsteemEiLisavõimalusedEiIntel®i Dual Display Capable tehnoloogiaEiIntel®i Rapid Storage tehnoloogiaEiIntel®i vargusvastane tehnoloogia (Intel® AT)EiIntel®i vPro™ tehnoloogiaEiIntel®i AES uus juhend (Intel® AES-NI)JahIntel® Quick Sync videotehnoloogiaJahIntel® InTru™ 3D tehnoloogiaJahIntel® Insider™JahIntel®i traadita ekraani (Intel® WiDi)JahIntel®i painduva ekraani tehnoloogiaEiIntel®i Clear Video HD tehnoloogia (Intel® CVT HD)JahIntel® Turbo Boost tehnoloogia2.0Intel®i hüper hargtöötlus tehnoloogia (Intel® HT Technology)JahIntel®i Virtualization Technology Directed I/O seadmeleJahIntel®i VT-x koos laiendatud lehetabelitega (EPT)JahIntel® 64JahIntel®i My WiFi tehnoloogia (Intel® MWT)JahOoterežiimJahInteli täiustatud SpeedStep-tehnoloogiaJahIntel®i Demand Based Switching funktsioonEiTermojärelevalve tehnoloogiadJahIntel®i kiire ligipääs mälule (Fast Memory Access)EiIntel®i paindlik ligipääs mälule (Flex Memory Access)JahIntel®i Trusted Execution tehnoloogiaEiExecute Disable BitJahIntel®i tark vahemälu (Smart Cache)JahIntel®i TSX-NI tehnoloogiaJahIntel®i Small Business Advantage (Intel® SBA)JahIntel®i Secure Key tehnoloogiaJahIntel® Smart Response vastamissüsteemJahIntel®i Stable Image Platform Program (SIPP) funktsioonEiIntel® OS GuardJahIntel®i Clear Video tehnoloogiaJahAC-sisendpinge100 - 240AC-adapteri väljundpinge19 VAC-adapteri väljundvool4,74 ALaius112,6 mmSügavus119,4 mmKõrgus46,8 mmKuvar kaasa arvatudEiInstalleeritud protsessorite arv1
