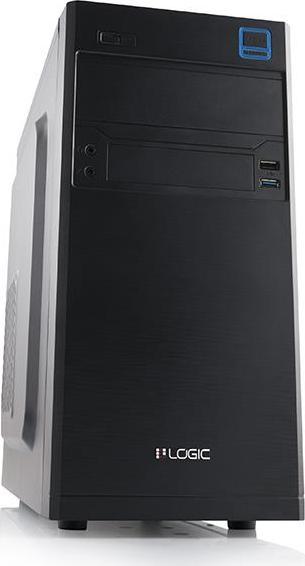

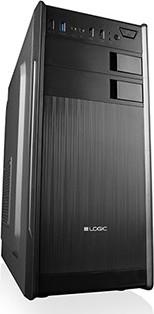

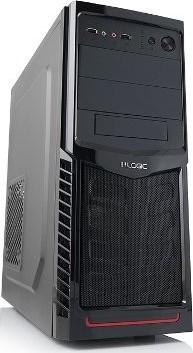

Original part number AT-B024-10-LOG400A-0002 Product name LOGIC Computer case B24 Midi Tower, power supply LOGIC 400W ATX PFC USB 3.0 Producer Logic Concept Technology Class of product Computer case Type of computer case Midi Tower Case type (motherboard type) ATXMicroATX Supported power supply standards ATX Number of external 3,5" bays 0 Number of external 5,25" bays 2 Number of external 5,25" slim bays 0 Number of internal 2,5" bays 0 Number of internal 3,5" bays 3 Number of intenal 5,25" bays 0 Installed power supply(ies) Yes Maximal qty of power supplies 1 Power supply (supplies) power 400 Watt Type of +12V electric plug does not concern I/O connectors 1x USB 3.02x USB 2.01x stereo mini-jack (earphones output)1x stereo mini-jack (microphone input) Fan(s) speed controller No Maximal qty of fans 2 Width 420 mm Length 433 mm Height 180 mm Side air duct No Tool-free assembly No Colour Black

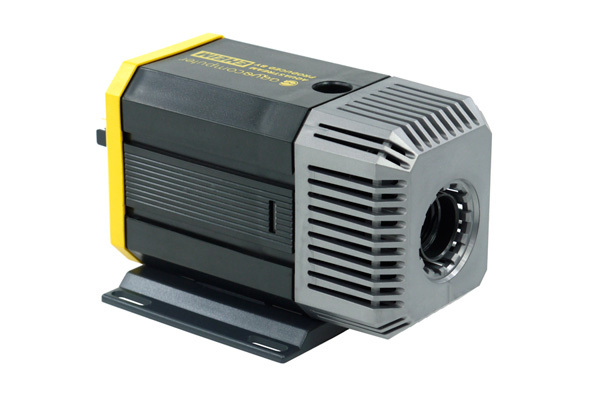

The new aquastream XT pump is the completely redesigned successor to the well-proven aquastream Rev. 3.5. It presents the absolute peak of development of practically silent pumps for water cooling systems. But this pump is not only a pump, it is also a highly integrated microprocessor-controlled measuring- and control system for your cooling system. This truly unique system was even improved over the preceding system, greatly increasing the functionality of the unit. All version of the aquastream XT have an USB interface , allowing monitoring and control of the unit even without connection to an aquaero. The control functions are accessible via the popular and free Windows-software aquasuite. Depending on the unlocked software version of the pump additional features such as a fan output, temperature sensors as well as a connection possibility for a temperature sensor . In the maximum equipped version all important monitoring and control functionality for your water cooling system is already integrated in the pump. The new features include turning detection as well as automatic maximum frequency measuring , ensuring reliable operation even at maximum power. In comparison the the previous versions of the aquastream XT the control unit was integrated into the pump's casing without having to enlarge the unit. The pump in detail: Highest performance with smart electronics The mechanics of the pump are based on the proved Eheim technology with yet to be matched smooth operation. Compared to the predecessors the pressure head was increased to sensational 4.2m. This means that the aquastream is one of the most powerful pumps on the market whilst still being almost completely silent. This was achieved with a highly intelligent control system with complex algorithms and sensors. Permanently and more than 1000 times per second the rotor position, current draw, power and voltage are monitored. From this data the perfect settings are computed, allowing the pump to run with up to 6000rpm internally, depending on the system. The pump frequency is automatically set by the pump or can be set manually via the software. The pump finds the optimal operating point by itself. The data is additionally passed on via USB or aquabus and can be read out and displayed in the aquasuite software. The aquasuite software is a system for all aquacomputer products which needs to be installed only once and offers an integrated database, network capability (maintenance also) and many control features. Parallelly a rpm signal can be passed on to the Mainboard which allows an emergency shutdown if the pump fails. Of course the aquastream XT is also equipped with the handy deaeration program which was introduced by Aqua computer years ago. This program can be started via a jumper or via the software. The program can even be configured to your own preferences. The sensors of the aquastream XT: Water temperature included No other competing product can offer the range of functionality and performance of the aquastream XT. Our R&D department has already integrated a sensor for measuring of the water temperature into the pump. The data from this sensor can be read via aquabus or the aquaero and used for adjustments. Additionally multiple temperatures are monitored in the power amplifier section. The pump has an intelligent protective system . If the temperature rises above the pre-programmed safety setting, the electronics are set into a safety mode to prevent damage. Depending on the temperature different strategies are used. External connective possibilities expand the performance spectrum: An additional external temperature sensor and a flow sensor can be connected directly to the pump. Both are monitored with extremely high precision and can be integrated into the alarm settings. An unbelievable number of alarm settings and parameters can be set. Integrated fan controller . Intelligent controllers for super-quiet operation of your system You wish to have a high-performance cooling system with one of the best controlling mechanisms in the world? Then the aquastream XT is the perfect solution for you! The integrated highly complex PID controllers work in the microprocessor to achieve only one goal: To keep your system at the temperature you want and to keep it as quiet as possible! This is achieved with a mathematical model which calculates the fan speed settings and monitors the current speed more than 1000 times per second. Of course without the annoying noise from PWM a highly precise analogue voltage is put out. The starting voltage of your fan is also taken into account and automatically set by the controller. You wish to have more control? Take it! All controller settings can be influenced by you in detail or can be set comfortably with pre-sets. The speeds can be adjusted following the internally measured water temperature, the external temperature or following manual settings. Of course an alarm signal is given when the fan fails. Additionally great attention was paid to highest operational safety: If a too high load is drawn from a fan socket the electronics automatically detect it. A switching of the output voltage to 100% reduces the thermal power loss in the system. If this is not enough the electronics are switched off and an alarm is triggered, By the way: it is no problem to connect 3 airstream fans to the fan output. This means that even 360mm radiators can be controlled without problems. Buy all features now - or when you really need it? Development costs money, features need to be maintained and not every user needs every feature. Hence the aquastream XT is available in the versions Standard, Advanced and Ultra. This means that you only pay for what you need, offering you one big advantage: The pump can be upgraded after purchase! You only need to buy a key and enter it into the aquasuite software. This will unlock the additional features of the advanced- and Ultra version. The detailed features can be found here: All versions: - based on the technology of the proven Eheim 1046 pump, specially adapted to the specifications from Aqua Computer - Full ceramic bearing of the pump rotor - pure 12V pump - no higher voltages are created - low power consumption of typically approx. 5W - Micro-processor controlled pump and USB interface for communication with the PC - continuous measuring of supply voltage, current draw and power consumption - RPM signal output with adjustable functionality and alarm feature - Deaeration program - aquabus interface for connection with other Aqua Computer devices Feature Standard Advanced Ultra Automatic frequency adjustment • • • Aquabus • • • Manual frequency setting • • • Deaeration modus • • • Rotation detection • • • Configurable rpm signal output • • • Manually configurable fan output - • • Measuring of fan output voltage - • • External temperature sensor - - • Internal water temperature sensor - - • Freely configurable calibration curve - - • Temperature-controlled fan output - - • Connection flow sensor - - • Extent of delivery: 1x aquastream XT USB 12V pump 1x ATX-bridging plug for starting of the system PSU 1x USB connection cable 1x RPM signal cable 1x Jumper 1x English & German mounting manual Please note: The pressure and inlet connections are identical with the Eheim 1046 pump. The adaptor kit and suitable fittings have to be purchased separately. IMPORTANT: If you wish to install this pump in an aquabay, you will need a current connection kit and a current aquabay. Old version from before September 2007 are not compatible! Test the aquabay software in demo mode: In our support section a current version of the aquasuite software can be downloaded for free and used in demo mode. In this mode the menus and displays of an aquastream XT can be seen without a pump. Important: Should the product be shiped with an "origninal Aquacomputer quality seal" we wish to inform you that this seal often detaches itself. A detached quality seal is no justified reason for reclamation. Important note: The pump can be severely damaged if the USB connector is connected with wrong polarity . Such damages are covered by the warranty , Aquacomputer does not replace pumps which were destroyed by such mistakes! Direct manufacturer support: In case of a reclamation please send the pump with a photocopy of the invoice directly to the manufacturer: Aqua Computer Gmbh & Co. KG, Gelliehäuser Str.1, 37130 Gleichen, Germany. Contact: www.aquacomputer.de We at Aquatuning are not able to inspect the pump and hence only forward it to Aqua Computer. the delay by this process can be eliminated if you send the pump to the manufacturer directly. Note: A cable for connection of the aquastream pump with the aquaero is included with the pump.

The new aquastream XT pump is the completely redesigned successor to the well-proven aquastream Rev. 3.5. It presents the absolute peak of development of practically silent pumps for water cooling systems. But this pump is not only a pump, it is also a highly integrated microprocessor-controlled measuring- and control system for your cooling system. This truly unique system was even improved over the preceding system, greatly increasing the functionality of the unit. All version of the aquastream XT have an USB interface , allowing monitoring and control of the unit even without connection to an aquaero. The control functions are accessible via the popular and free Windows-software aquasuite. Depending on the unlocked software version of the pump additional features such as a fan output, temperature sensors as well as a connection possibility for a temperature sensor . In the maximum equipped version all important monitoring and control functionality for your water cooling system is already integrated in the pump. The new features include turning detection as well as automatic maximum frequency measuring , ensuring reliable operation even at maximum power. In comparison the the previous versions of the aquastream XT the control unit was integrated into the pump's casing without having to enlarge the unit. The pump in detail: Highest performance with smart electronics The mechanics of the pump are based on the proved Eheim technology with yet to be matched smooth operation. Compared to the predecessors the pressure head was increased to sensational 4.2m. This means that the aquastream is one of the most powerful pumps on the market whilst still being almost completely silent. This was achieved with a highly intelligent control system with complex algorithms and sensors. Permanently and more than 1000 times per second the rotor position, current draw, power and voltage are monitored. From this data the perfect settings are computed, allowing the pump to run with up to 6000rpm internally, depending on the system. The pump frequency is automatically set by the pump or can be set manually via the software. The pump finds the optimal operating point by itself. The data is additionally passed on via USB or aquabus and can be read out and displayed in the aquasuite software. The aquasuite software is a system for all aquacomputer products which needs to be installed only once and offers an integrated database, network capability (maintenance also) and many control features. Parallelly a rpm signal can be passed on to the Mainboard which allows an emergency shutdown if the pump fails. Of course the aquastream XT is also equipped with the handy deaeration program which was introduced by Aqua computer years ago. This program can be started via a jumper or via the software. The program can even be configured to your own preferences. The sensors of the aquastream XT: Water temperature included No other competing product can offer the range of functionality and performance of the aquastream XT. Our R&D department has already integrated a sensor for measuring of the water temperature into the pump. The data from this sensor can be read via aquabus or the aquaero and used for adjustments. Additionally multiple temperatures are monitored in the power amplifier section. The pump has an intelligent protective system . If the temperature rises above the pre-programmed safety setting, the electronics are set into a safety mode to prevent damage. Depending on the temperature different strategies are used. External connective possibilities expand the performance spectrum: An additional external temperature sensor and a flow sensor can be connected directly to the pump. Both are monitored with extremely high precision and can be integrated into the alarm settings. An unbelievable number of alarm settings and parameters can be set. Integrated fan controller . Intelligent controllers for super-quiet operation of your system You wish to have a high-performance cooling system with one of the best controlling mechanisms in the world? Then the aquastream XT is the perfect solution for you! The integrated highly complex PID controllers work in the microprocessor to achieve only one goal: To keep your system at the temperature you want and to keep it as quiet as possible! This is achieved with a mathematical model which calculates the fan speed settings and monitors the current speed more than 1000 times per second. Of course without the annoying noise from PWM a highly precise analogue voltage is put out. The starting voltage of your fan is also taken into account and automatically set by the controller. You wish to have more control? Take it! All controller settings can be influenced by you in detail or can be set comfortably with pre-sets. The speeds can be adjusted following the internally measured water temperature, the external temperature or following manual settings. Of course an alarm signal is given when the fan fails. Additionally great attention was paid to highest operational safety: If a too high load is drawn from a fan socket the electronics automatically detect it. A switching of the output voltage to 100% reduces the thermal power loss in the system. If this is not enough the electronics are switched off and an alarm is triggered, By the way: it is no problem to connect 3 airstream fans to the fan output. This means that even 360mm radiators can be controlled without problems. Buy all features now - or when you really need it? Development costs money, features need to be maintained and not every user needs every feature. Hence the aquastream XT is available in the versions Standard, Advanced and Ultra. This means that you only pay for what you need, offering you one big advantage: The pump can be upgraded after purchase! You only need to buy a key and enter it into the aquasuite software. This will unlock the additional features of the advanced- and Ultra version. The detailed features can be found here: All versions: - based on the technology of the proven Eheim 1046 pump, specially adapted to the specifications from Aqua Computer - Full ceramic bearing of the pump rotor - pure 12V pump - no higher voltages are created - low power consumption of typically approx. 5W - Micro-processor controlled pump and USB interface for communication with the PC - continuous measuring of supply voltage, current draw and power consumption - RPM signal output with adjustable functionality and alarm feature - Deaeration program - aquabus interface for connection with other Aqua Computer devices Feature Standard Advanced Ultra Automatic frequency adjustment • • • Aquabus • • • Manual frequency setting • • • Deaeration modus • • • Rotation detection • • • Configurable rpm signal output • • • Manually configurable fan output - • • Measuring of fan output voltage - • • External temperature sensor - - • Internal water temperature sensor - - • Freely configurable calibration curve - - • Temperature-controlled fan output - - • Connection flow sensor - - • Extent of delivery: 1x aquastream XT USB 12V pump 1x ATX-bridging plug for starting of the system PSU 1x USB connection cable 1x RPM signal cable 1x Jumper 1x English & German mounting manual Please note: The pressure and inlet connections are identical with the Eheim 1046 pump. The adaptor kit and suitable fittings have to be purchased separately. IMPORTANT: If you wish to install this pump in an aquabay, you will need a current connection kit and a current aquabay. Old version from before September 2007 are not compatible! Test the aquabay software in demo mode: In our support section a current version of the aquasuite software can be downloaded for free and used in demo mode. In this mode the menus and displays of an aquastream XT can be seen without a pump. Important: Should the product be shiped with an "origninal Aquacomputer quality seal" we wish to inform you that this seal often detaches itself. A detached quality seal is no justified reason for reclamation. Important note: The pump can be severely damaged if the USB connector is connected with wrong polarity . Such damages are covered by the warranty , Aquacomputer does not replace pumps which were destroyed by such mistakes! Direct manufacturer support: In case of a reclamation please send the pump with a photocopy of the invoice directly to the manufacturer: Aqua Computer Gmbh & Co. KG, Gelliehäuser Str.1, 37130 Gleichen, Germany. Contact: www.aquacomputer.de We at Aquatuning are not able to inspect the pump and hence only forward it to Aqua Computer. the delay by this process can be eliminated if you send the pump to the manufacturer directly. Note: A cable for connection of the aquastream pump with the aquaero is included with the pump.

The new aquastream XT pump is the completely redesigned successor to the well-proven aquastream Rev. 3.5. It presents the absolute peak of development of practically silent pumps for water cooling systems. But this pump is not only a pump, it is also a highly integrated microprocessor-controlled measuring- and control system for your cooling system. This truly unique system was even improved over the preceding system, greatly increasing the functionality of the unit. All version of the aquastream XT have an USB interface , allowing monitoring and control of the unit even without connection to an aquaero. The control functions are accessible via the popular and free Windows-software aquasuite. Depending on the unlocked software version of the pump additional features such as a fan output, temperature sensors as well as a connection possibility for a temperature sensor . In the maximum equipped version all important monitoring and control functionality for your water cooling system is already integrated in the pump. The new features include turning detection as well as automatic maximum frequency measuring , ensuring reliable operation even at maximum power. In comparison the the previous versions of the aquastream XT the control unit was integrated into the pump's casing without having to enlarge the unit. The pump in detail: Highest performance with smart electronics The mechanics of the pump are based on the proved Eheim technology with yet to be matched smooth operation. Compared to the predecessors the pressure head was increased to sensational 4.2m. This means that the aquastream is one of the most powerful pumps on the market whilst still being almost completely silent. This was achieved with a highly intelligent control system with complex algorithms and sensors. Permanently and more than 1000 times per second the rotor position, current draw, power and voltage are monitored. From this data the perfect settings are computed, allowing the pump to run with up to 6000rpm internally, depending on the system. The pump frequency is automatically set by the pump or can be set manually via the software. The pump finds the optimal operating point by itself. The data is additionally passed on via USB or aquabus and can be read out and displayed in the aquasuite software. The aquasuite software is a system for all aquacomputer products which needs to be installed only once and offers an integrated database, network capability (maintenance also) and many control features. Parallelly a rpm signal can be passed on to the Mainboard which allows an emergency shutdown if the pump fails. Of course the aquastream XT is also equipped with the handy deaeration program which was introduced by Aqua computer years ago. This program can be started via a jumper or via the software. The program can even be configured to your own preferences. The sensors of the aquastream XT: Water temperature included No other competing product can offer the range of functionality and performance of the aquastream XT. Our R&D department has already integrated a sensor for measuring of the water temperature into the pump. The data from this sensor can be read via aquabus or the aquaero and used for adjustments. Additionally multiple temperatures are monitored in the power amplifier section. The pump has an intelligent protective system . If the temperature rises above the pre-programmed safety setting, the electronics are set into a safety mode to prevent damage. Depending on the temperature different strategies are used. External connective possibilities expand the performance spectrum: An additional external temperature sensor and a flow sensor can be connected directly to the pump. Both are monitored with extremely high precision and can be integrated into the alarm settings. An unbelievable number of alarm settings and parameters can be set. Integrated fan controller . Intelligent controllers for super-quiet operation of your system You wish to have a high-performance cooling system with one of the best controlling mechanisms in the world? Then the aquastream XT is the perfect solution for you! The integrated highly complex PID controllers work in the microprocessor to achieve only one goal: To keep your system at the temperature you want and to keep it as quiet as possible! This is achieved with a mathematical model which calculates the fan speed settings and monitors the current speed more than 1000 times per second. Of course without the annoying noise from PWM a highly precise analogue voltage is put out. The starting voltage of your fan is also taken into account and automatically set by the controller. You wish to have more control? Take it! All controller settings can be influenced by you in detail or can be set comfortably with pre-sets. The speeds can be adjusted following the internally measured water temperature, the external temperature or following manual settings. Of course an alarm signal is given when the fan fails. Additionally great attention was paid to highest operational safety: If a too high load is drawn from a fan socket the electronics automatically detect it. A switching of the output voltage to 100% reduces the thermal power loss in the system. If this is not enough the electronics are switched off and an alarm is triggered, By the way: it is no problem to connect 3 airstream fans to the fan output. This means that even 360mm radiators can be controlled without problems. Buy all features now - or when you really need it? Development costs money, features need to be maintained and not every user needs every feature. Hence the aquastream XT is available in the versions Standard, Advanced and Ultra. This means that you only pay for what you need, offering you one big advantage: The pump can be upgraded after purchase! You only need to buy a key and enter it into the aquasuite software. This will unlock the additional features of the advanced- and Ultra version. The detailed features can be found here: All versions: - based on the technology of the proven Eheim 1046 pump, specially adapted to the specifications from Aqua Computer - Full ceramic bearing of the pump rotor - pure 12V pump - no higher voltages are created - low power consumption of typically approx. 5W - Micro-processor controlled pump and USB interface for communication with the PC - continuous measuring of supply voltage, current draw and power consumption - RPM signal output with adjustable functionality and alarm feature - Deaeration program - aquabus interface for connection with other Aqua Computer devices Feature Standard Advanced Ultra Automatic frequency adjustment • • • Aquabus • • • Manual frequency setting • • • Deaeration modus • • • Rotation detection • • • Configurable rpm signal output • • • Manually configurable fan output - • • Measuring of fan output voltage - • • External temperature sensor - - • Internal water temperature sensor - - • Freely configurable calibration curve - - • Temperature-controlled fan output - - • Connection flow sensor - - • Extent of delivery: 1x aquastream XT USB 12V pump 1x ATX-bridging plug for starting of the system PSU 1x USB connection cable 1x RPM signal cable 1x Jumper 1x English & German mounting manual Please note: The pressure and inlet connections are identical with the Eheim 1046 pump. The adaptor kit and suitable fittings have to be purchased separately. IMPORTANT: If you wish to install this pump in an aquabay, you will need a current connection kit and a current aquabay. Old version from before September 2007 are not compatible! Test the aquabay software in demo mode: In our support section a current version of the aquasuite software can be downloaded for free and used in demo mode. In this mode the menus and displays of an aquastream XT can be seen without a pump. Important: Should the product be shiped with an "origninal Aquacomputer quality seal" we wish to inform you that this seal often detaches itself. A detached quality seal is no justified reason for reclamation. Important note: The pump can be severely damaged if the USB connector is connected with wrong polarity . Such damages are covered by the warranty , Aquacomputer does not replace pumps which were destroyed by such mistakes! Direct manufacturer support: In case of a reclamation please send the pump with a photocopy of the invoice directly to the manufacturer: Aqua Computer Gmbh & Co. KG, Gelliehäuser Str.1, 37130 Gleichen, Germany. Contact: www.aquacomputer.de We at Aquatuning are not able to inspect the pump and hence only forward it to Aqua Computer. the delay by this process can be eliminated if you send the pump to the manufacturer directly. Note: A cable for connection of the aquastream pump with the aquaero is included with the pump.

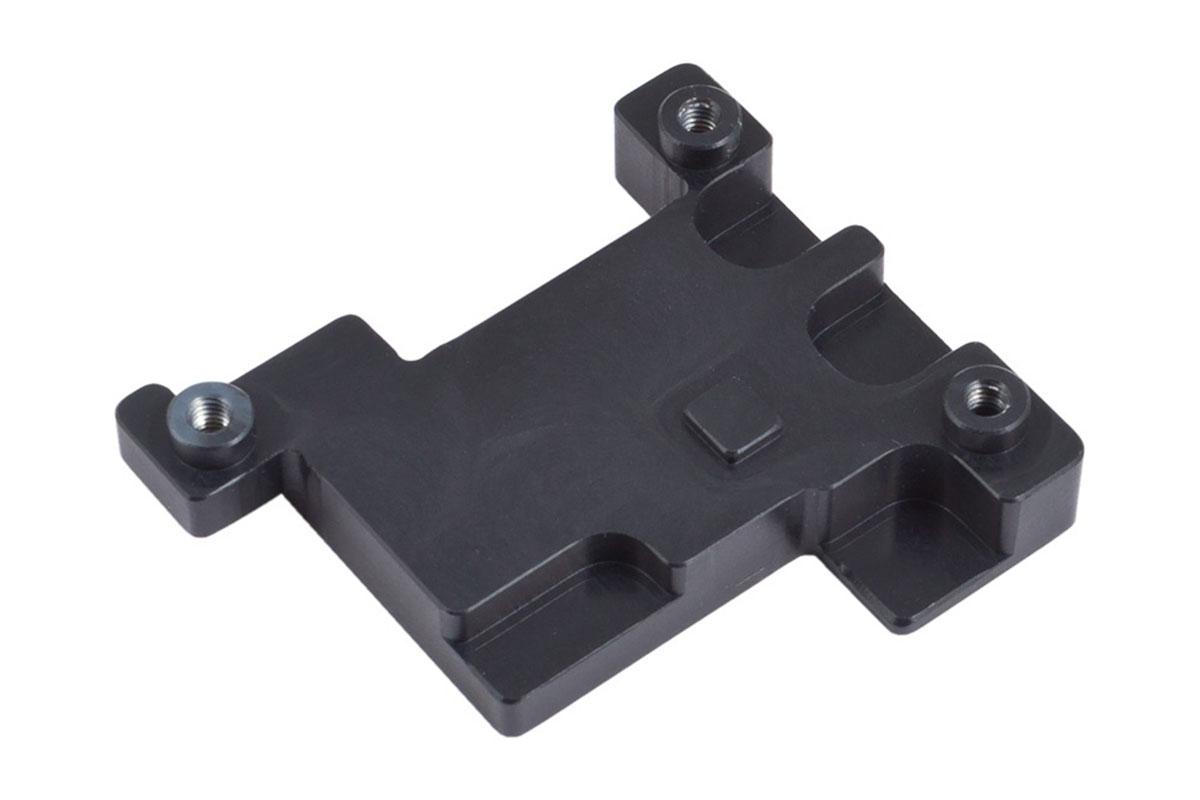

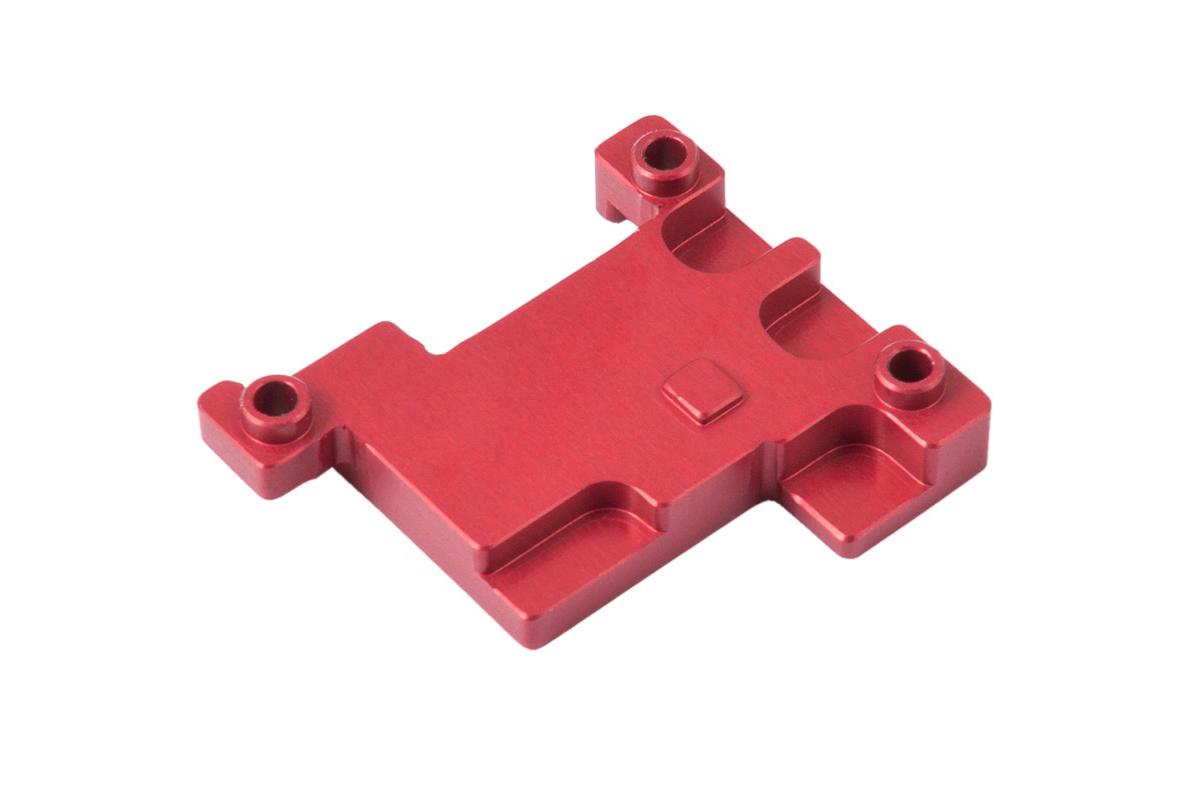

Mounted on an poweradjust 3 controller, this passive heat sink improves heat dissipation and thereby increases the maximum power output of the fan channel. Scope of delivery: Aluminum heat sink for poweradjust 3 Thermally conductive pad Mounting material Compatible with: poweradjust 3 (52247/52246) Please note: poweradjust 3 is not included in delivery! Not compatible with bezel sets 52179/52183!

Mounted on an poweradjust 3 controller, this passive heat sink improves heat dissipation and thereby increases the maximum power output of the fan channel. Scope of delivery: Aluminum heat sink for poweradjust 3 Thermally conductive pad Mounting material Compatible with: poweradjust 3 (52247/52246) Please note: poweradjust 3 is not included in delivery! Not compatible with bezel sets 52179/52183!

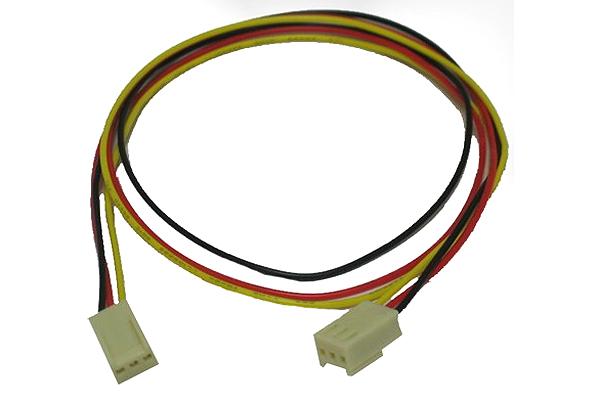

Tochosignalkabel zum Verbinden des Tachosignalausganges des aquastream-Controllers mit einem Mainboard-Lüfteranschluß. Dieses Kabel kann zudem für aquabus Verbindungen genutzt werden (z.B. aquaero + multiswitch) Lieferumfang: 1x Anschlusskabel aquabus/Tacho f. aquastream Retail

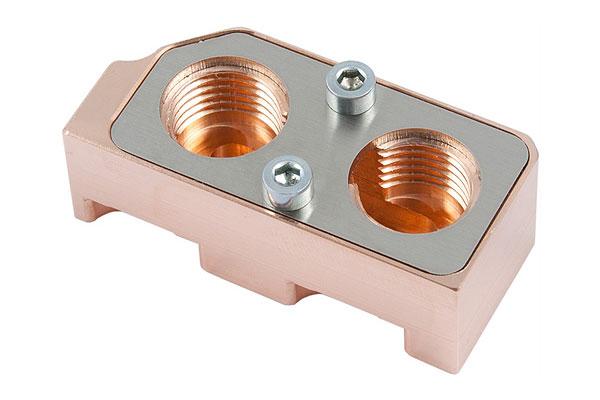

Mounted on an aquaero 5 controller, this water block improves the heat dissipation and thereby significantly increases the maximum power output of the fan channels. Technical details: Base part material: Copper Cover material: Stainless steel Threads for fittings: G1/4 Extent of delivery: Water block for aquaero 5 Thermally conductive pad Nylon screws Compatible with: aquaero 5 XT aquaero 5 PRO aquaero 5 LT
