Emaplaat MSI B550 GAMING WIFI6E emaplaat AMD B550 Pesa AM4

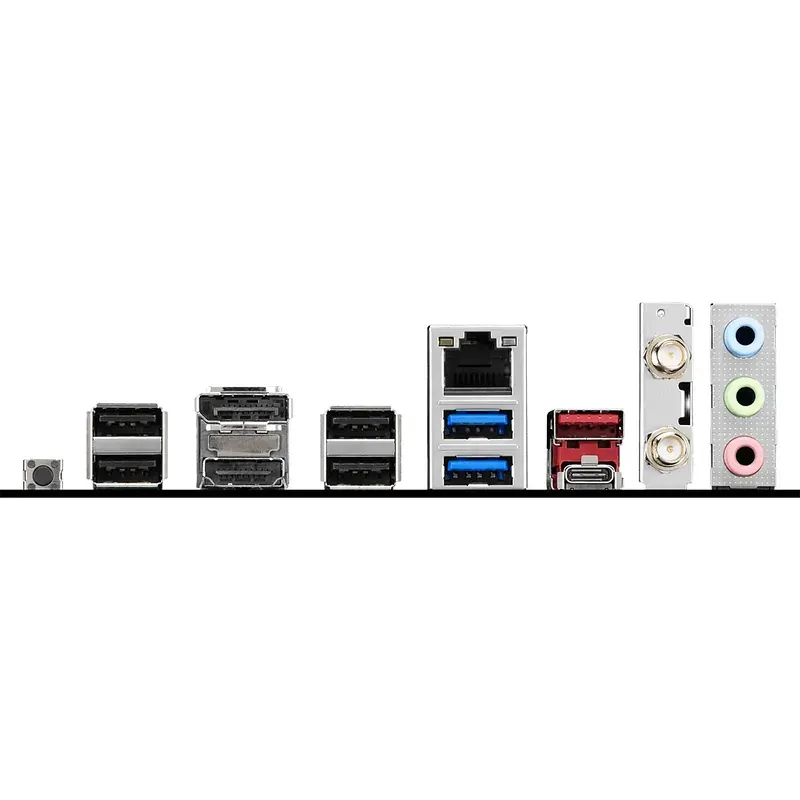

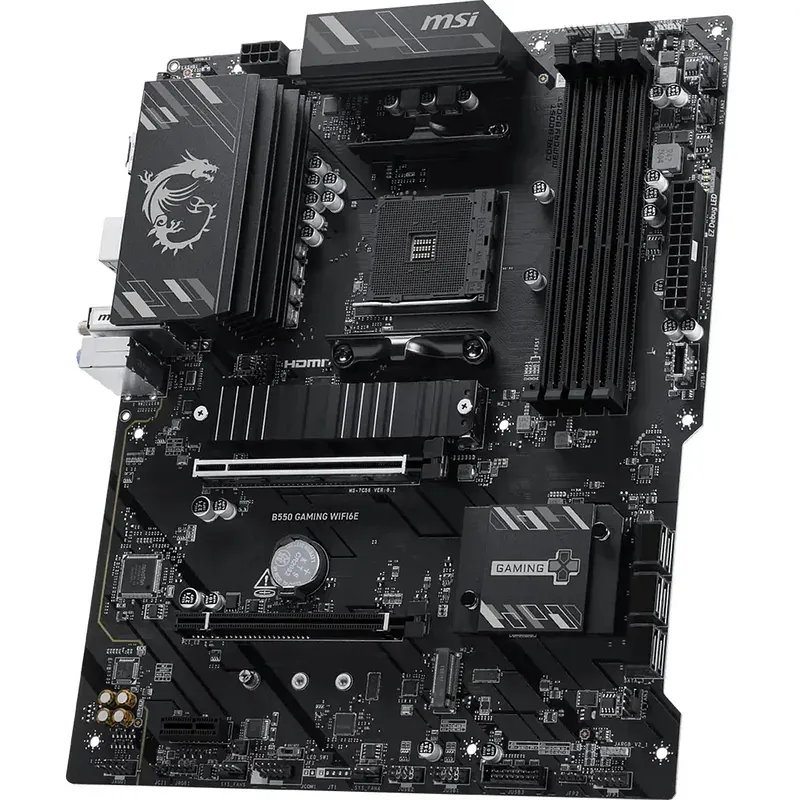

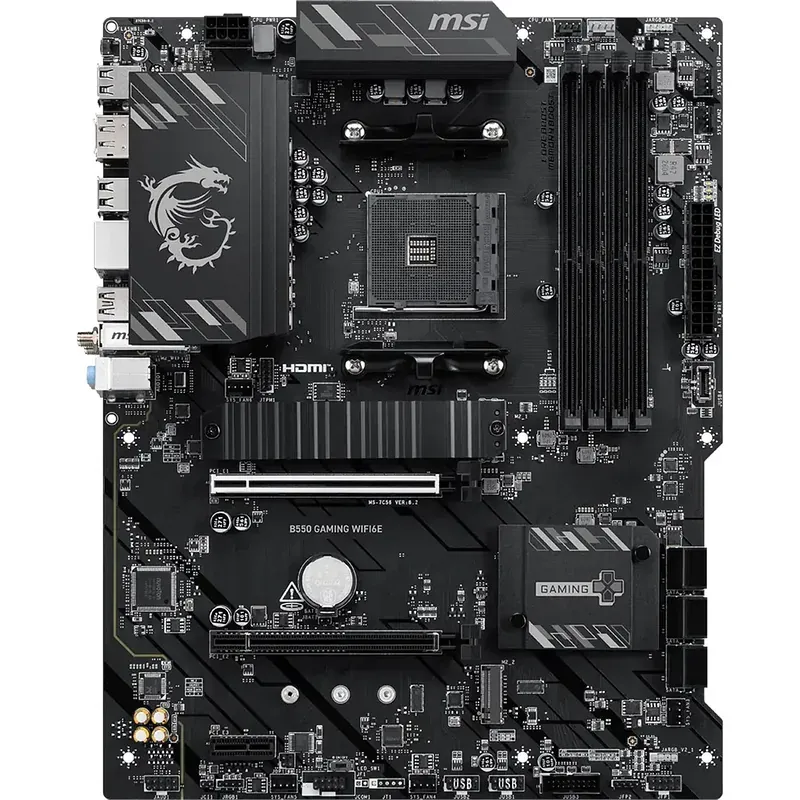

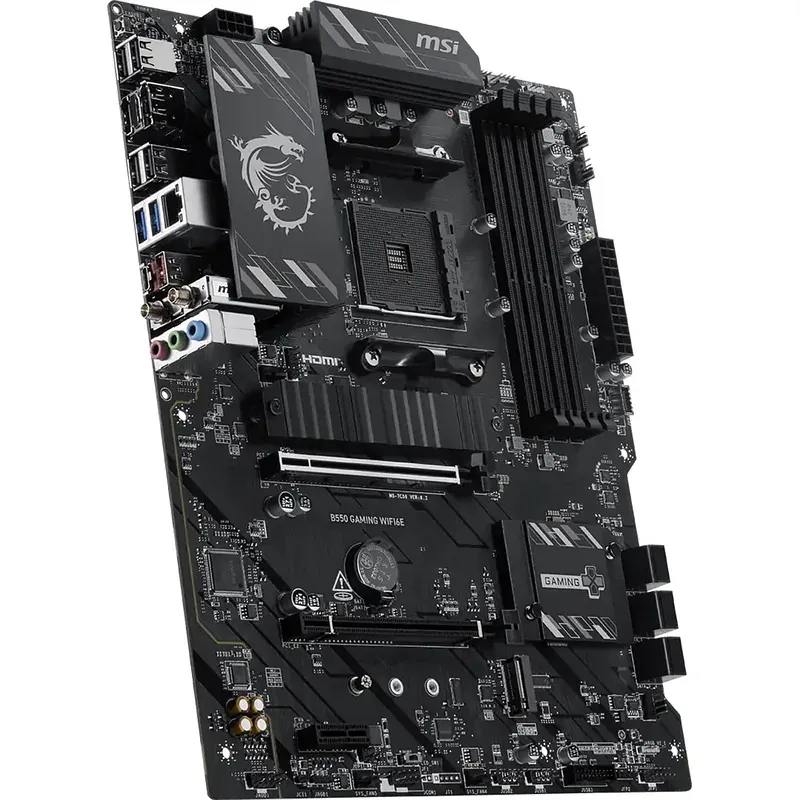

The MSI B550 GAMING WIFI is based on the AMD B550 chipset and supports AMD processors for Socket AM4. It has four DDR4 slots for up to 128 GB of memory. The MSI B550 GAMING WIFI's additional features include a CPU-dependent graphics solution, a PCIe 4.0 x16 slot, a PCIe 3.0 x16 slot (x4 lanes) and a PCIe 3.0 x1 slot. The MSI B550 GAMING WIFI also has 8-channel sound, a Gigabit LAN interface, WiFi 6E, Bluetooth 5.3 as well as six SATA3, two M.2 and a number of USB interfaces. Mainboard type Color black/silver EAN 4711377459082 Manufacturer no. 7C56-092R Socket AM4 Max. supported CPUs 1 Processor Supported Models Ryzen 5 3xxx (Matisse), Ryzen 5 3xxxX (Matisse), Ryzen 5 3xxxXT (Matisse), Ryzen 7 3xxxX (Matisse), Ryzen 7 3xxxXT (Matisse), Ryzen 9 3xxxX (Matisse), Ryzen 9 3xxxXT (Matisse), Ryzen 5 5xxx (Vermeer), Ryzen 5 5xxxX (Vermeer), Ryzen 5 5xxx (Cezanne), Ryzen 5 5xxxG (Cezanne), Ryzen 7 5xxx (Vermeer), Ryzen 7 5xxx (Cezanne), Ryzen 7 5xxxX (Vermeer), Ryzen 7 5xxxXT (Vermeer), Ryzen 7 5xxxG (Cezanne), Ryzen 9 5xxx (Vermeer), Ryzen 9 5xx Ryzen 9 5xxxXT (Vermeer) Chipset AMD B550 Slots PCIe x16 2x (of which: 1x PCIe x16, 1x PCIe x4) Slots PCIe x4 1 Form factor ATX Use PC Power supply ATX12V (24-pin + 8-pin) Memory maximum 128 GB Memory number of sockets 4x DDR4 Memory supported memory type SDRAM-DDR4 Memory supported standards 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+MHz Memory channels 2 Memory Maximum memory ranks 8 Ports (external) USB-C 3.2 Gen 2 (10 Gbit/s) 1 Ports (external) USB-A 3.2 Gen 2 (10 Gbit/s) 1 Ports (external) USB-A 3.2 Gen 1 (5 Gbit/s) 2 Connections (external) USB-A 2.0 4 Connections (external) HDMI 1 Connections (external) DisplayPort-Out 1 Connections (external) Microphone 1 Connections (external) Line-In 1 Connections (external) Line-Out 1 Connections (external) RJ-45 1 Connections (external) Bluetooth Yes Connections (external) WLAN Yes Connectors (internal) SATA 6 Connections (internal) M.2 2 Connectors (internal) M.2 Slot 1 PCIe Gen 4.0 Connectors (internal) M.2 Slot 2 PCIe Gen 3.0 Connections (internal) Note: The actual usable speed of your M.2 SSDs depends on the combination of CPU, mainboard slot and chipset. Connectors (internal) M.2 interface PCIe Connections (internal) M.2 length 42 - 110 mm Connections (internal) RGB LED header 1 Connections (internal) addressable RGB LED header 2 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 Ports (optional) USB-C 3.2 Gen 1 (5 Gbit/s 1 Ports (optional) USB 2.0 4 SATA controller AMD B550 Directly usable RAID levels 0, 1, 10 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek® ALC897 LAN Realtek® 8111H GbE LAN Wi-Fi 6E + Bluetooth 5.3 Further information In order to support the latest processor cores, a BIOS update may be required. Accessories available, quick start instructions, 2x SATA cables, I/O shield Dimensions Width: 243.84mm x Height: 304.8mm
