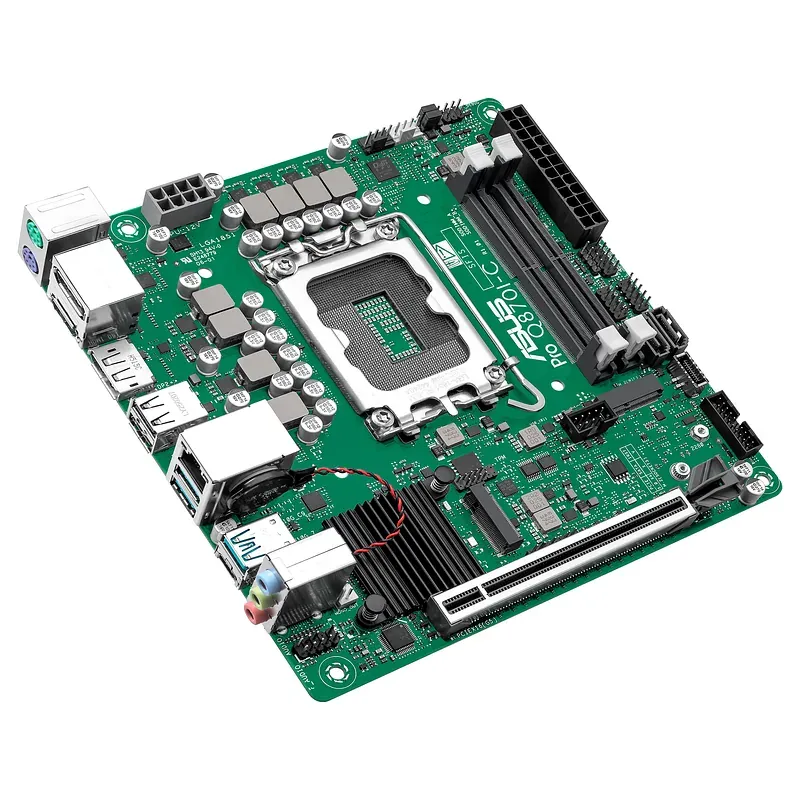

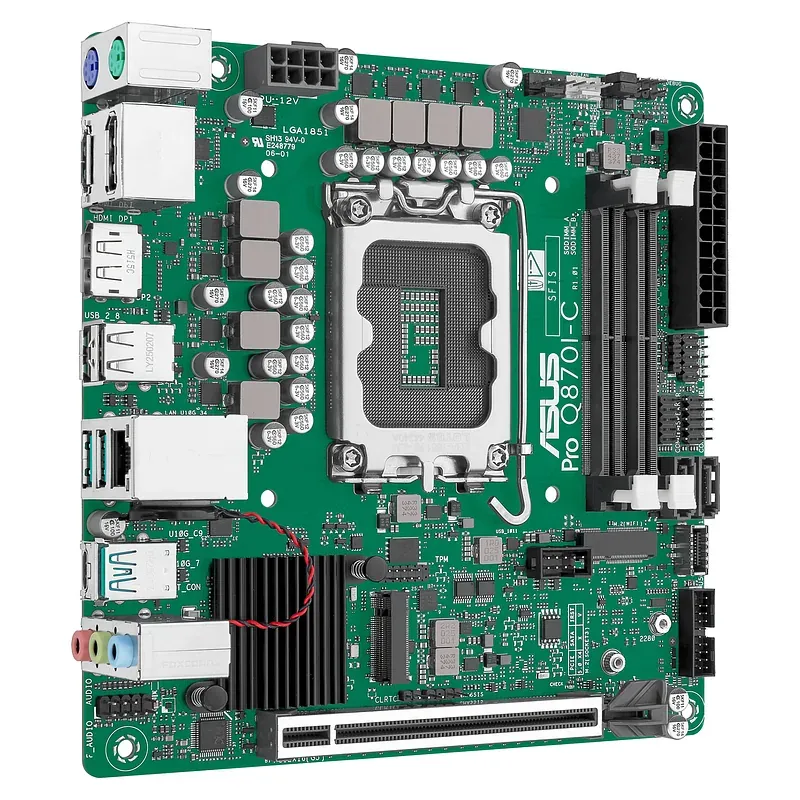

Emaplaat Asus PRO Q870I-C-CSM Intel Q870 LGA 1851 (Socket V1) Mini ITX

The ASUS PRO Q870I-C-CSM is based on the Intel® Q870 chipset and supports Intel® processors for socket 1851. It features two SODIMM DDR5 slots for up to 128 GB of RAM. Additional features of the ASUS PRO Q870I-C-CSM include a PCIe 5.0 x16 slot, 8-channel audio, a Gigabit LAN interface, two SATA3 ports, an M.2 slot, and a variety of USB ports. Type Mainboard EAN code 4711636208857 Manufacturer No. 90MB1MPP-M0EAYC Base 1851 Max. supported CPUs 1 Operating system support: Windows 10 ready, Windows 11 ready Processor Supported Models Core Ultra 3 2xx (Arrow Lake), Core Ultra 5 2xx (Arrow Lake), Core Ultra 5 2xxF (Arrow Lake), Core Ultra 5 2xxK (Arrow Lake), Core Ultra 5 2xxKF (Arrow Lake), Core Ultra 5 2xxT (Arrow Lake), Core Ultra 7 2xx (Arrow Lake), Core Ultra 7 2xxF (Arrow Lake), Core Ultra 7 2xxK (Arrow Lake), Core Ultra 7 2xxKF (Arrow Lake), Core Ultra 7 2xxT (Arrow Lake), Core Ultra 9 2xx (Arrow Lake), Core Ultra 9 2xxK (Arrow Lake), Core Ultra 9 2xxKF (Arrow Lake), Core Ultra 9 2xxT (Arrow Lake), Core Ultra 9 2xxF (Arrow Lake) Intel® Q870 chipset PCIe x16 slots: 1x (of which: 1x PCIe x16) BIOS 256 MB Flash ROM Mini-ITX form factor Using a PC Power supply ATX12V (24-pin + 8-pin) Maximum storage capacity 128 GB TPM Yes External connections: Keyboard (PS/2) 1 Internal connections: SATA 2 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 Intel® Q870 SATA Controller Intel®-Q870 USB Controller Onboard Graphics: The motherboard's graphics ports are only usable when using a CPU with an integrated graphics chip. Sound Realtek 7.1 Surround Sound High Definition Audio CODEC Intel® I219LM LAN Further information: To support the latest processor cores, a BIOS update may be required. Included accessories: 2x SATA cables, I/O shield, M.2 screw set, quick start guide Dimensions: Width: 170 mm x Height: 170 mm
