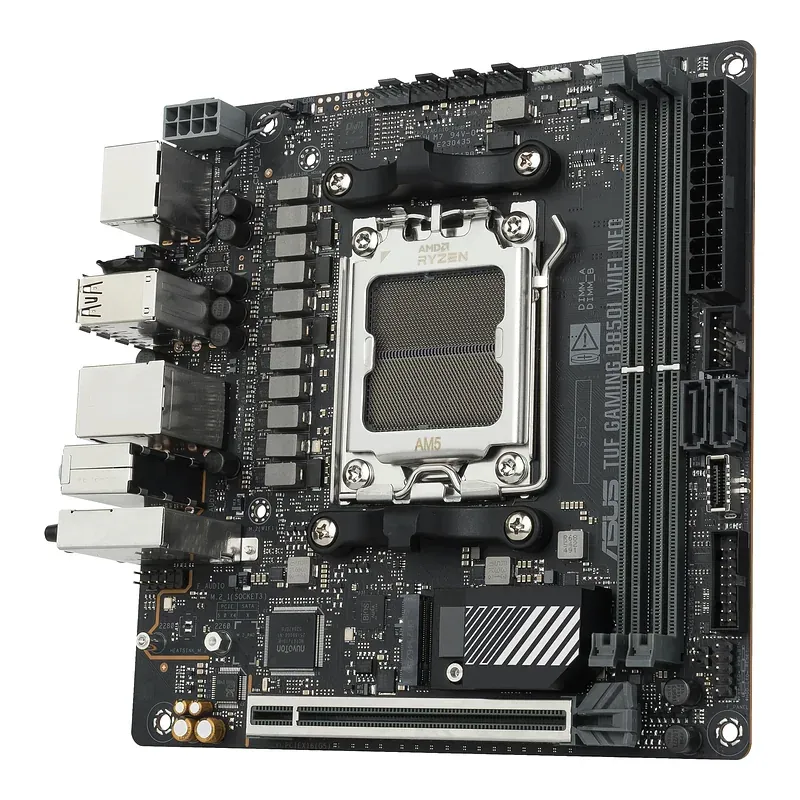

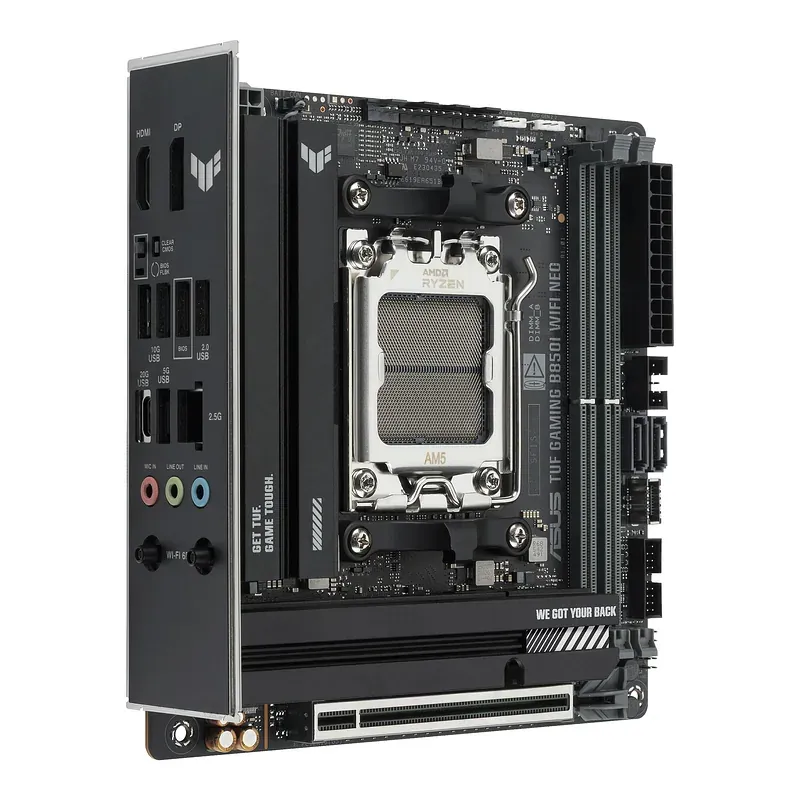

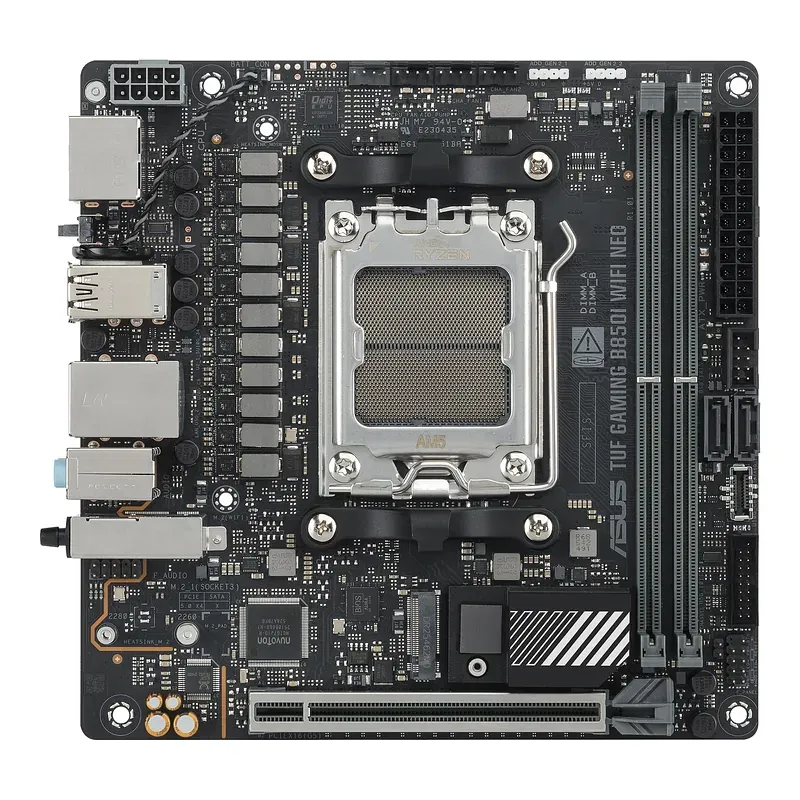

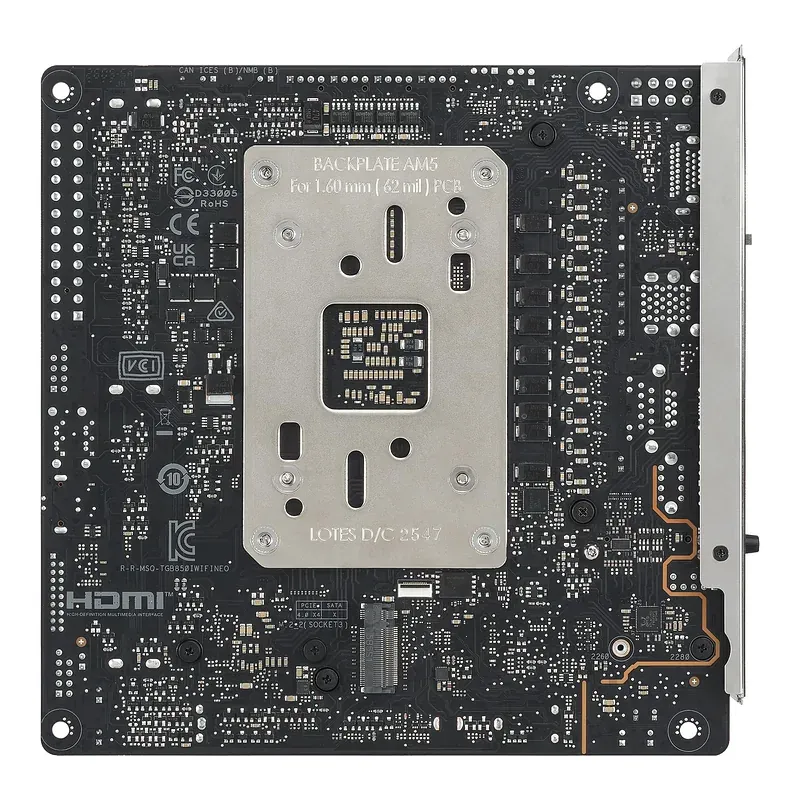

Emaplaat Asus TUF GAMING B850I WIFI NEO AMD B850 Protsessoripesa AM5 Mini ITX

ASUS TUF GAMING B850I WIFI NEO is based on the AMD B850 chipset and supports AMD Ryzen 9000, 8000 and 7000 series processors for the AM5 socket. The board in the compact Mini-ITX format has two DDR5 memory slots with a total capacity of up to 128 GB. It also offers a PCIe x16 slot, two M.2 ports, 2.5 Gb/s LAN and Wi-Fi 6E connectivity. Type motherboard EAN 4711636580915 Manufacturer No. 90MB1PI0-M0EAY0 TUF Gaming Series Socket AM5 Max. supported processors 1 Support Windows 11 operating system Supported processors AMD Ryzen 9000 series, AMD Ryzen 8000 series, AMD Ryzen 7000 series AMD B850 chipset PCIe x16 slots 1 PCIe slot standard PCIe 5.0 x16 with Ryzen processors 9000 and 7000, PCIe 4.0 x16 with Ryzen 8000 processors BIOS 32 MB Flash ROM, UEFI AMI BIOS BIOS EFI BIOS Yes Mini-ITX form factor Power supply ATX12V 24-pin + 8-pin Power section 8+2+1, 80 A Memory up to 128 GB Number of memory slots 2x DDR5 Dual Channel memory architecture ECC and Non-ECC Unbuffered memory support AMD EXPO support Yes ASUS AEMP support Yes Maximum memory speed with Ryzen 9000 processors up to 8200+ MT/s after overclock Maximum memory speed with Ryzen 8000 processors to 9600+ MT/s after overclock Maximum memory speed with Ryzen 7000 processors to 8000+ MT/s after overclock External ports USB-C 20 Gbit/s 1 External ports USB-A 10 Gbit/s 2 Ports external USB-A 5 Gbit/s 1 External ports USB-A 2.0 2 External connections HDMI 1 External connections DisplayPort 1 Maximum resolution DisplayPort 7680 x 4320 at 30 Hz Maximum resolution HDMI 3840 x 2160 at 60 Hz External connections RJ-45 1 External connections audio connectors 3 External connections Bluetooth Yes, with Bluetooth LE Audio support External connections WLAN Yes SATA internal connectors 2 M.2 internal connections 2 M.2 Key M module Supported M.2 drive lengths 60 and 80 mm Interface of the first M.2 PCIe 5.0 x4 connector with Ryzen 9000 and 7000 processors, PCIe 4.0 x4 with Ryzen 8000 processors Interface of the second M.2 PCIe 4.0 x4 connector Internal connections addressable RGB LED connector 2 Internal ports USB-C 10 Gbit/s 1 Optional ports USB 5 Gbit/s 2 Ports optional USB 2.0 2 Fan connectors 4-pin 4 RGB synchronization standard ASUS Aura Sync SATA AMD B850 controller Supported RAID levels 0, 1, 5, 10 AMD B850 USB controller Built-in graphics The motherboard image connectors can only be used with a processor that has an integrated system graphic. LAN Realtek 2.5 Gb Ethernet WLAN Wi-Fi 6E 2x2 Supported WLAN bands 2.4 GHz, 5 GHz and 6 GHz Sound Realtek 7.1 Surround Sound High Definition Audio Maximum sound quality 24 bit / 192 kHz Buttons on the rear panel BIOS FlashBack, Clear CMOS Further information The actual standard of the PCIe and M.2 slots depends on the processor used. Availability of the 6 GHz Wi-Fi band depends on local regulations and requires Windows 11 or later. Dimensions Width: 170 mm × Height: 170 mm
