Emaplaat Gigabyte B550 X EAGLE WIFI6E AMD B550 Pesa AM4 ATX

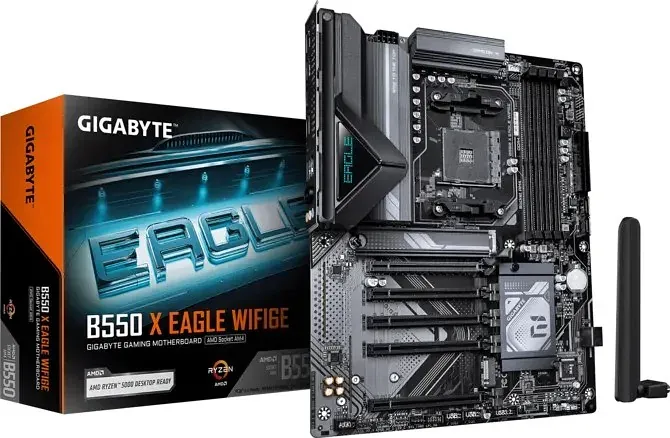

The GIGABYTE B550 X EAGLE WF6E is based on the AMD B550 chipset and supports AMD processors for Socket AM4. It has four DDR4 slots for up to 128 GB of memory. The GIGABYTE B550 The GIGABYTE B550 Mainboard type EAN 4719331883331 Manufacturer no. B550XEAGLE WF6E Socket AM4 Max. supported CPUs 1 Operating system support Windows 10 ready Processor Supported Models [Ryzen 3 3xxx (Matisse), Ryzen 3 3xxxX (Matisse), Ryzen 3 4xxx (Vermeer), Ryzen 3 PRO 4xxxG (Renoir), Ryzen 5 3xxx (Matisse), Ryzen 5 3xxxX (Matisse), Ryzen 5 3xxxXT (Matisse), Ryzen 5 4xxx (Renoir), Ryzen 5 PRO 4xxxG (Renoir), Ryzen 5 PRO 4xxxGE (Renoir), Ryzen 7 3xxx (Matisse), Ryzen 7 3xxxX (Matisse), Ryzen 7 3xxxXT (Matisse), Ryzen 7 PRO 4xxxG (Renoir), Ryzen 7 PRO 4xxxGE (Renoir), Ryzen 9 3xxxX (Matisse), Ryzen 9 3xxxXT (Matisse), Ryzen 5 5xxx (Vermeer), Ryzen 5 5xxxX (Vermeer), Ryzen 5 5xxx (Cezanne), Ryzen 5 5xxxG (Cezanne), Ryzen 7 5xxx (Cezanne), Ryzen 7 5xxxX (Vermeer), Ryzen 7 5xxxXT (Vermeer), Ryzen 7 5xxxG (Cezanne), Ryzen 9 5xxxX (Vermeer), Ryzen 9 5xxxXT (Vermeer)] AMD AM4 processors of the 4th (Zen 3) and 3rd generation (Zen 2). NOT compatible with Ryzen 3 3200G and Ryzen 5 3400G. Chipset AMD B550 Slots PCIe x16 5x (of which: 1x PCIe x16, 4x PCIe x1) Form factor ATX Use PC Power supply ATX12V (24-pin + 8-pin) Memory maximum 128 GB Memory number of sockets 4x DDR4 Memory supported memory type SDRAM-DDR4 Memory supported standards DDR4 - 3200/ 2933/ 2667/ 2400/ 2133 MT/s Memory channels 2 Memory Maximum memory ranks 8 Memory ECC is supported Yes Memory memory controller in CPU Yes Memory Maximum data density 8192 Mbit Connections (external) Mouse/Keyboard Combo (PS/2) 1 Ports (external) USB-C 3.2 Gen 2 (10 Gbit/s) 1 Ports (external) USB-A 3.2 Gen 2 (10 Gbit/s) 1 Ports (external) USB-A 3.2 Gen 1 (5 Gbit/s) 2 Ports (external) Note: The designation USB 3.2 Gen 1 corresponds to the previous designations USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the previous designations USB 3.1 Gen 2 or USB 3.1. Connections (external) USB-A 2.0 4 Connections (external) DVI-D 1 Connections (external) HDMI 1 Connections (external) Microphone 1 Connections (external) Line-In 1 Connections (external) Line-Out 1 Connections (external) RJ-45 1 Connections (external) Bluetooth Yes Connections (external) WLAN Yes Connectors (internal) SATA 4 Connections (internal) M.2 2 Connections (internal) M.2 module Key M Connections (internal) Note: The actual usable speed of your M.2 SSDs depends on the combination of CPU, mainboard slot and chipset. Connections (internal) M.2 interface SATA, PCIe Connections (internal) M.2 length 42 - 110 mm Connections (internal) RGB LED header 1 Connections (internal) addressable RGB LED header 3 Connections (internal) 4-pin PWM fan 5 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 Ports (optional) USB-C 3.2 Gen 1 (5 Gbit/s 1 Ports (optional) USB 2.0 4 Connections (optional) TPM Yes RGB Standard RGB Fusion SATA controller AMD B550 Directly usable RAID levels 0, 1, 10 USB controller AMD B550 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek Audio CODEC LAN Realtek 2.5GbE LAN WIFI6E + Bluetooth 5.3 Features CrossFireX Further information In order to support the latest processor cores, a BIOS update may be required. Weight 1.5kg
