Emaplaat Gigabyte B550 X GAMING WIFI7 AMD B550 Pesa AM4 ATX

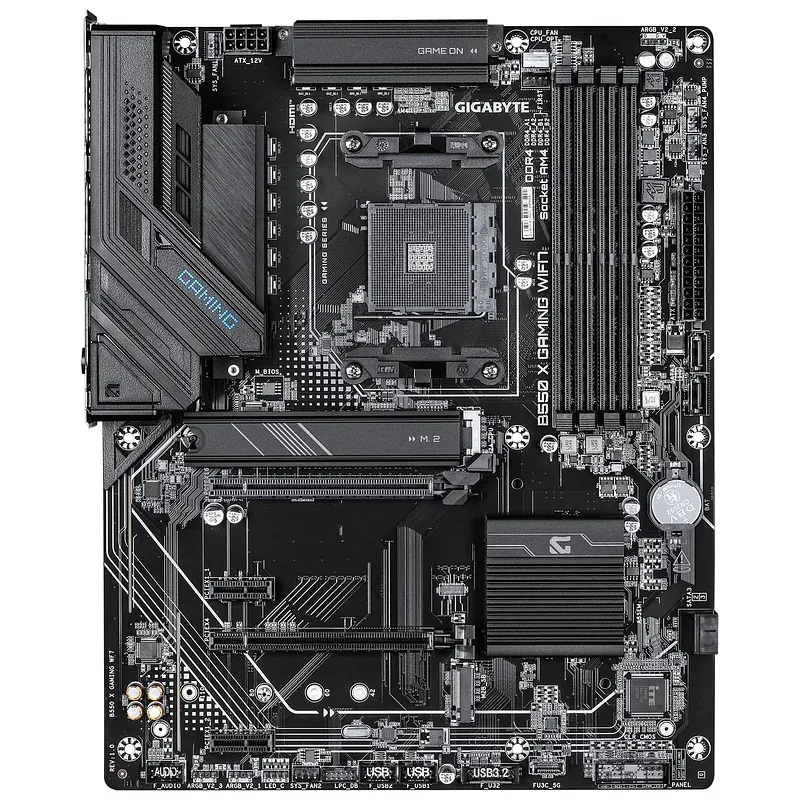

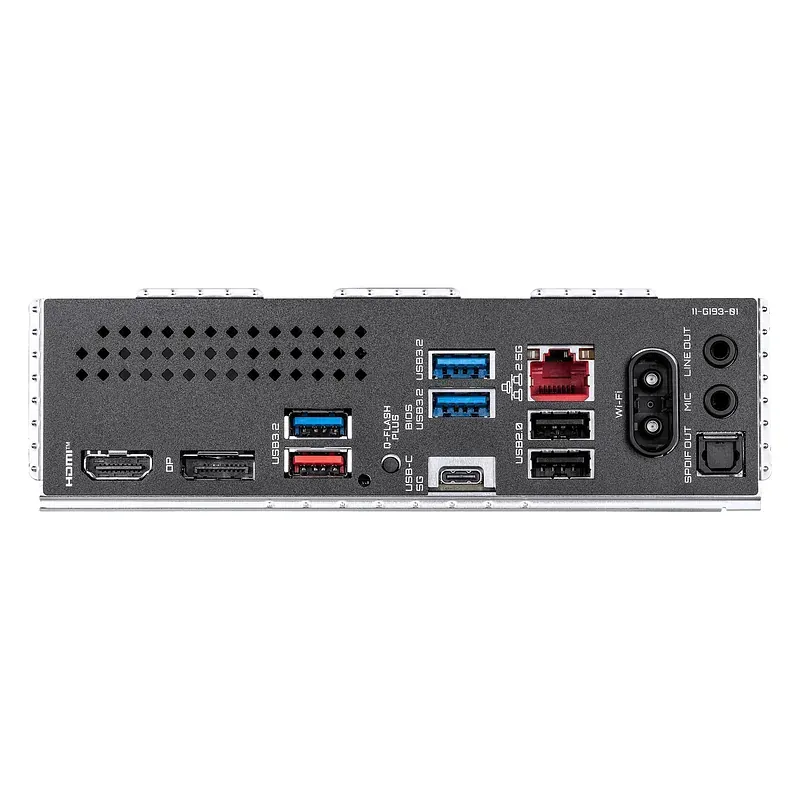

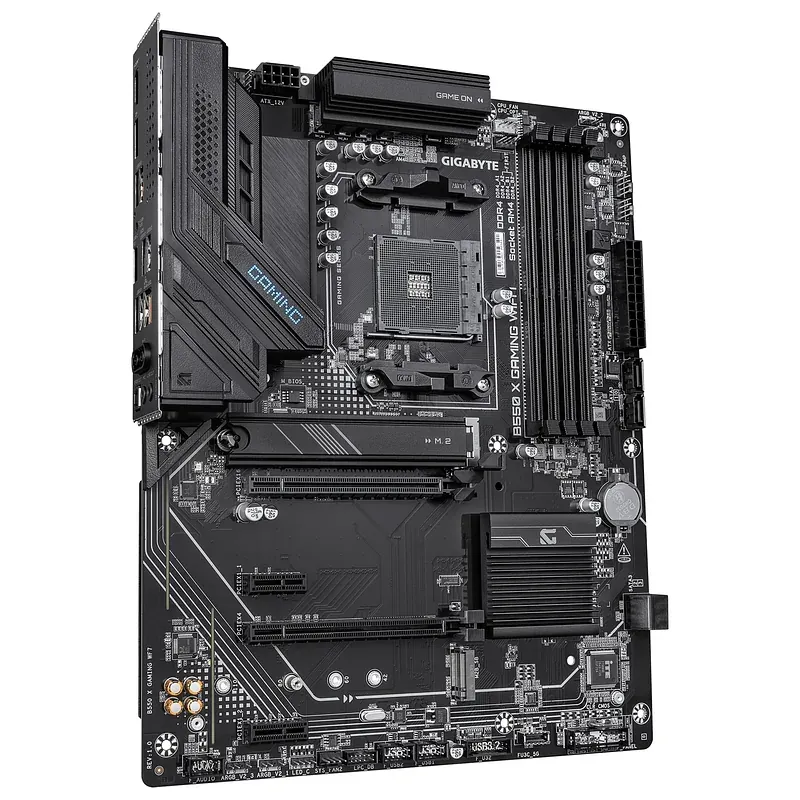

GIGABYTE B550 X GAMING WIFI7 is a full-size ATX motherboard combining the proven AMD AM4 platform with modern connectivity such as Wi-Fi 7 and 2.5 Gigabit Ethernet. It is designed for AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, 3000 and 3000 G-Series processors, making it particularly attractive for users who want to build or upgrade a powerful DDR4-based gaming PC without moving to a more expensive DDR5 platform. The AMD B550 chipset also provides PCI Express 4.0 support with compatible Ryzen processors, allowing the system to take advantage of modern graphics cards and high-speed NVMe SSDs. The AM4 socket gives access to a broad range of AMD Ryzen processors, from affordable multi-core CPUs to powerful Ryzen 7 and Ryzen 9 models. This makes the board suitable for gaming systems, general-purpose PCs, content creation machines and productivity workstations. Users upgrading an existing AM4 computer may also be able to retain their DDR4 memory and processor while gaining newer networking, storage and connectivity features, which can significantly reduce the cost of a platform upgrade. Four DDR4 DIMM slots support up to 128 GB of system memory in a dual-channel configuration. This provides considerably more upgrade flexibility than boards with only two memory sockets. A system can initially be built with two modules while leaving another two slots available for future expansion. Support for XMP memory profiles simplifies the configuration of compatible performance-oriented DDR4 kits, while ECC unbuffered memory is also supported when used with a compatible processor. For a dedicated graphics card, the primary PCI Express x16 slot connects directly to the processor. With Ryzen 5000 and Ryzen 3000 Series CPUs it supports PCIe 4.0 x16, providing the bandwidth required by modern high-performance graphics cards. Ryzen G-Series processors operate this slot in PCIe 3.0 mode. The motherboard additionally provides a second full-length PCIe slot operating at PCIe 3.0 x4 and two PCIe 3.0 x1 slots, allowing expansion with capture cards, storage controllers, sound cards and other add-in devices. Storage options include two M.2 connectors and four SATA 6 Gbit/s ports. The primary CPU-connected M.2 slot can operate at PCIe 4.0 x4 with compatible Ryzen 5000 or 3000 Series processors, providing up to twice the interface bandwidth of PCIe 3.0 x4 SSDs. This makes it ideal for a fast system drive used for Windows, applications, games and large project files. The second M.2 connector operates through the B550 chipset at PCIe 3.0 x4 and provides an additional high-speed storage option without occupying a SATA drive bay. GIGABYTE equips the primary M.2 area with an M.2 Thermal Guard, which helps transfer heat away from a fast NVMe SSD. This can be useful during long file transfers, game installations or other sustained workloads where an uncooled SSD may become hot enough to reduce its performance. Screwless M.2 EZ-Latch mechanisms also simplify installation and replacement of compatible SSDs by reducing the need to handle tiny M.2 mounting screws. A major advantage of this motherboard is its unusually modern wireless connectivity for the AM4 platform. The integrated Realtek RTL8922AE module supports Wi-Fi 7 with 2.4 GHz, 5 GHz and 6 GHz frequency bands as well as Bluetooth 5.4. Wi-Fi 7 can provide higher wireless throughput, lower latency and improved operation in busy wireless environments when paired with a compatible router and operating system. For users who cannot easily run an Ethernet cable to their PC, this provides a significantly more future-oriented wireless solution than the Wi-Fi 5 or Wi-Fi 6 modules commonly found on older B550 motherboards. The wireless module uses GIGABYTE WIFI EZ-Plug, which combines the antenna connections into a convenient installation system. Instead of individually tightening two small antenna connectors behind the PC, the antenna connection can be attached more easily. This is particularly useful when the computer is positioned under a desk or close to a wall where access to the rear I/O panel is limited. For wired networking, the motherboard includes Realtek 2.5GbE LAN. A 2.5 Gbit/s connection offers up to two and a half times the theoretical bandwidth of conventional Gigabit Ethernet and can be useful for transferring large files to a NAS, accessing a local server, performing backups or using internet connections faster than 1 Gbit/s. It remains backward-compatible with 1 Gbit/s and 100 Mbit/s Ethernet networks, so no special network equipment is required for basic operation. The motherboard provides both HDMI 2.1 and DisplayPort 1.4 outputs for processors equipped with integrated AMD Radeon graphics. DisplayPort supports resolutions up to 5120 × 2880 at 60 Hz, while HDMI supports up to 4096 × 2160 at 60 Hz. This makes it possible to build a complete PC without a dedicated graphics card when using a compatible Ryzen G-Series processor, which can be useful for office computers, multimedia systems or machines that will receive a discrete GPU later. USB connectivity includes a rear USB 3.2 Gen 2 Type-A port with transfer speeds up to 10 Gbit/s, three rear USB 3.2 Gen 1 ports, a rear USB-C connector with USB 3.2 Gen 1 support and two USB 2.0 ports. An internal USB-C header allows compatible PC cases to provide an easily accessible front USB-C connection, while additional internal headers support further USB 3.2 Gen 1 and USB 2.0 ports. This gives users plenty of connectivity for external SSDs, smartphones, keyboards, mice, controllers, printers and other peripherals. The power delivery system uses an 8+2 Twin Hybrid Digital VRM design with premium chokes and capacitors. The VRM Thermal Armor Advanced heatsink and 5 W/mK thermal pad help remove heat from the power-delivery components during demanding CPU workloads. This is particularly useful when running higher-performance Ryzen processors for gaming, rendering or other sustained workloads where the CPU can remain under high load for extended periods. Smart Fan 6 provides extensive cooling control with six fan or pump-capable headers across the motherboard. The system can monitor temperature and fan speed and allows fan curves to be configured according to the cooling requirements of the PC. Dedicated pump support also makes the board suitable for systems using an all-in-one liquid cooler or more advanced water-cooling configurations. The Realtek audio solution supports 2-channel, 4-channel, 5.1-channel and 7.1-channel High Definition Audio. The rear panel also includes optical S/PDIF output, which is useful for connecting compatible AV receivers, DACs and speaker systems digitally. GIGABYTE uses dedicated audio components and high-quality audio capacitors to provide an integrated sound solution suitable for gaming, films, music and everyday communication without requiring a separate sound card. The B550 X GAMING WIFI7 also includes several features that simplify PC assembly and maintenance. PCIe EZ-Latch makes it easier to release a large graphics card from the primary slot, while M.2 EZ-Latch simplifies SSD installation. Q-Flash Plus allows the BIOS to be updated without requiring a fully assembled PC with a supported processor and memory installed, which can be particularly useful when preparing the board for a newer compatible Ryzen CPU. With an ATX size of 30.5 × 24.4 cm, the motherboard offers substantially more physical expansion space than compact micro-ATX designs. It provides four memory slots, four PCIe expansion slots, two M.2 sockets, four SATA connectors, extensive fan connectivity and multiple RGB headers. This makes it well suited to mid-tower and full-tower gaming PCs where future expansion and convenient component installation are important. GIGABYTE B550 X GAMING WIFI7 is therefore an especially interesting motherboard for users who want to continue using the mature and cost-effective AMD AM4 ecosystem while gaining connectivity normally associated with much newer platforms. The combination of Ryzen 5000 support, DDR4 memory, PCIe 4.0 graphics and storage, Wi-Fi 7, Bluetooth 5.4, 2.5GbE LAN, dual M.2 slots and practical DIY features makes it suitable both for new value-focused gaming builds and substantial upgrades of existing AM4 systems. Product type: motherboard Colour: black EAN: 4719331883454 Manufacturer part number: B550 X GAMING WF7 Manufacturer: GIGABYTE Model: B550 X GAMING WIFI7 Revision: 1.x Form factor: ATX Dimensions: 30.5 × 24.4 cm CPU socket: AMD AM4 Chipset: AMD B550 Supported processors: AMD Ryzen 5000 G-Series, Ryzen 5000 Series, Ryzen 4000 G-Series, Ryzen 3000 G-Series and Ryzen 3000 Series CPU power design: 8+2 Twin Hybrid Digital VRM CPU power connector: 1 × 8-pin ATX 12V Motherboard power connector: 1 × 24-pin ATX Memory type: DDR4 Memory slots: 4 × DIMM Maximum memory capacity: 128 GB Maximum capacity per DIMM: 32 GB Memory architecture: Dual Channel Native supported memory speeds: DDR4 3200 / 2933 / 2667 / 2400 / 2133 MT/s XMP support: yes ECC memory support: ECC Un-buffered 1Rx8 / 2Rx8, dependent on CPU support Non-ECC memory support: Un-buffered 1Rx8 / 2Rx8 / 1Rx16 Primary PCIe slot: 1 × PCI Express x16 Primary PCIe mode with Ryzen 5000 / 3000 Series: PCIe 4.0 x16 Primary PCIe mode with Ryzen 5000 G / 4000 G / 3000 G Series: PCIe 3.0 x16 Secondary full-length PCIe slot: 1 × PCIe 3.0 x16, operating at x4 Additional expansion slots: 2 × PCIe 3.0 x1 PCIe EZ-Latch: yes Number of M.2 slots: 2 M2A_CPU interface with Ryzen 5000 / 3000 Series: PCIe 4.0 x4/x2 or SATA M2A_CPU interface with Ryzen G-Series: PCIe 3.0 x4/x2 or SATA M2A_CPU supported SSD sizes: 2280 / 2580 / 22110 / 25110 M2B_SB interface: PCIe 3.0 x4 or SATA M2B_SB supported SSD sizes: 2242 / 2260 / 2280 / 22110 M.2 Thermal Guard: yes M.2 EZ-Latch: yes SATA connectors: 4 × SATA 6 Gbit/s RAID support: RAID 0, RAID 1, RAID 10 LAN controller: Realtek 2.5GbE Ethernet speeds: 2.5 Gbit/s / 1 Gbit/s / 100 Mbit/s Wireless controller: Realtek RTL8922AE Wi-Fi standard: Wi-Fi 7 / IEEE 802.11be Additional Wi-Fi standards: 802.11a/b/g/n/ac/ax Wi-Fi frequency bands: 2.4 GHz / 5 GHz / 6 GHz Wi-Fi channel width: up to 160 MHz Antenna configuration: 2T2R WIFI EZ-Plug: yes Bluetooth: Bluetooth 5.4 Wi-Fi 7 operating system requirement: Windows 11 SV3 or later for full Wi-Fi 7 functionality Integrated graphics support: dependent on installed processor DisplayPort: 1 × DisplayPort 1.4 Maximum DisplayPort resolution: 5120 × 2880 at 60 Hz HDMI: 1 × HDMI 2.1 Maximum HDMI resolution: 4096 × 2160 at 60 Hz HDCP: HDCP 2.3 HDR support: yes Maximum shared graphics memory: 16 GB Audio controller: Realtek Audio CODEC Audio type: High Definition Audio Audio channels: 2 / 4 / 5.1 / 7.1 channels Optical audio output: 1 × S/PDIF Out Rear audio jacks: 2 Rear USB 3.2 Gen 2: 1 × Type-A Rear USB 3.2 Gen 1: 3 × Type-A Rear USB-C: 1 × USB Type-C with USB 3.2 Gen 1 support Rear USB 2.0: 2 × Type-A Front USB-C support: 1 × internal USB Type-C header, USB 3.2 Gen 1 Internal USB 3.2 Gen 1 header: 1, supporting 2 additional ports Internal USB 2.0 headers: 2, supporting 4 additional ports Rear network connector: 1 × RJ-45 Rear antenna connectors: 2 Q-Flash Plus button: yes CPU fan header: 1 CPU fan / water-cooling pump header: 1 System fan headers: 3 System fan / water-cooling pump header: 1 Total fan / pump headers: 6 Smart Fan 6: yes Addressable RGB Gen2 headers: 3 RGB LED header: 1 Front panel audio header: 1 Clear CMOS jumper: 1 Hardware monitoring: voltage, temperature, fan speed and water-cooling flow monitoring Fan failure warning: yes Fan speed control: yes BIOS: licensed AMI UEFI BIOS BIOS flash memory: 128 Mbit Q-Flash: yes Q-Flash Plus: yes GIGABYTE Control Center support: yes Supported operating system: Windows 11 64-bit
