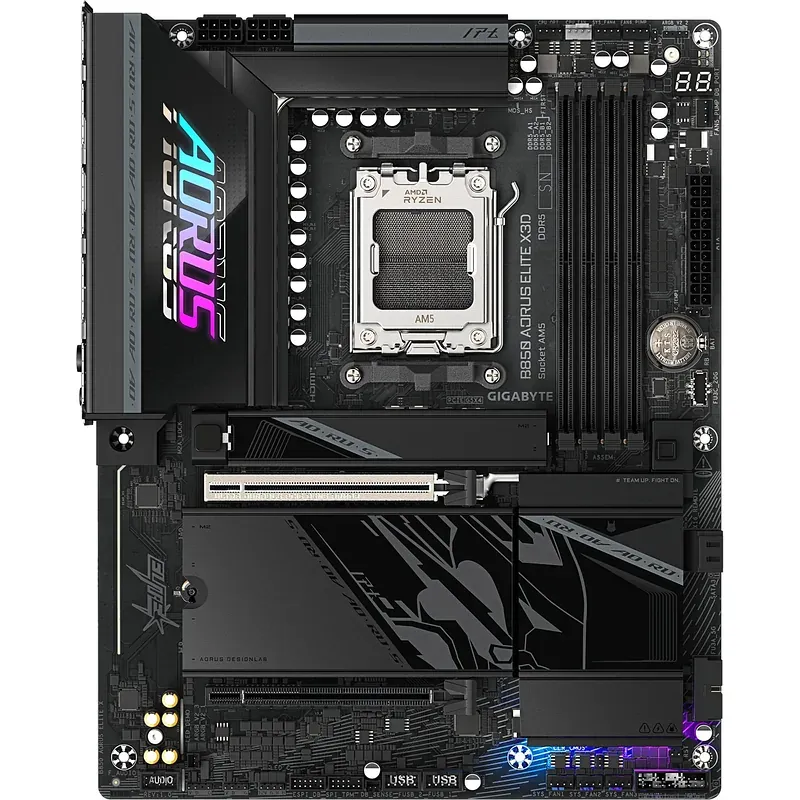

Emaplaat Gigabyte B850 AORUS ELITE X3D AMD B850 Protsessoripesa AM5 ATX

The GIGABYTE B850 AORUS ELITE X3D is based on the AMD B850 chipset and supports AMD processors for Socket AM5. It has four DDR5 slots for up to 256 GB of memory. The GIGABYTE B850 AORUS ELITE X3D ICE also features a PCIe 5.0 x16 slot and a PCIe 4.0 x16 slot (x4 lanes). The GIGABYTE B850 AORUS ELITE Mainboard type EAN 4719331882365 Manufacturer no. B850 AORUS ELITE X Socket AM5 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 5 9xxxF (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) Chipset AMD B850 Slots PCIe x16 2x (of which: 1x PCIe x16, 1x PCIe x4) BIOS 1 x 512 Mbit flash AMI UEFI BIOS BIOS EFI BIOS Yes Form factor ATX Use PC Power supply ATX12V (24-pin + 8-pin) Memory maximum 256 GB Memory number of sockets 4x DDR5 Memory supported standards DDR5 - 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 MT/s Memory channels 2 Memory Maximum memory ranks 8 Memory memory controller in CPU Yes Memory Maximum data density 8192 Mbit Ports (external) USB-C 3.2 Gen 2 (10 Gbit/s) 2 Ports (external) USB-A 3.2 Gen 2 (10 Gbit/s) 2 Ports (external) USB-A 3.2 Gen 1 (5 Gbit/s) 4 Ports (external) Note: The designation USB 3.2 Gen 1 corresponds to the previous designations USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the previous designations USB 3.1 Gen 2 or USB 3.1. Connections (external) USB-A 2.0 4 Connections (external) DisplayPort-Out 1 Connections (external) Microphone 1 Connections (external) Line-Out 1 Connections (external) S/PDIF-Out (optical) 1 Connections (external) RJ-45 1 Connections (external) Bluetooth Yes Connections (external) WLAN Yes Connectors (internal) SATA 4 Connections (internal) M.2 4 Connections (internal) M.2 module Key M Connectors (internal) M.2 Slot 1 PCIe Gen 5.0 Connectors (internal) M.2 Slot 2 PCIe Gen 4.0 Connectors (internal) M.2 Slot 3 PCIe Gen 4.0 Connections (internal) Note: The actual usable speed of your M.2 SSDs depends on the combination of CPU, mainboard slot and chipset. Connectors (internal) M.2 interface PCIe Connections (internal) M.2 length 80 - 110 mm Connections (internal) RGB LED header 1 Connections (internal) addressable RGB LED header 3 Connections (internal) 4-pin PWM fan 6 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 Ports (optional) USB-C 3.2 Gen 1 (5 Gbit/s 1 Ports (optional) USB 2.0 4 Connections (optional) TPM Yes RGB Standard RGB Fusion SATA controller AMD B850 Directly usable RAID levels 0, 1, 10 USB controller AMD B850 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek ALC1220 CODEC LAN Realtek 5GbE LAN Realtek Wi-Fi 7 RTL8922AE + Bluetooth 5.4 Further information In order to support the latest processor cores, a BIOS update may be required. X3D Turbo Mode 2.0 offers improved gaming and multitasking performance compared to the first generation. An integrated AI model and hardware circuits dynamically optimize the parameters of the X3D processor in real time, significantly increasing the performance of the Ryzen™ X3D processors. Dimensions Width: 244mm x Height: 305mm Warnings and safety instructions Warnings: Attention: Product contains a button cell or coin battery.
