Emaplaat Gigabyte Z890 AORUS ELITE WIFI7 PLUS Intel Z890 LGA 1851 (Socket V1) ATX

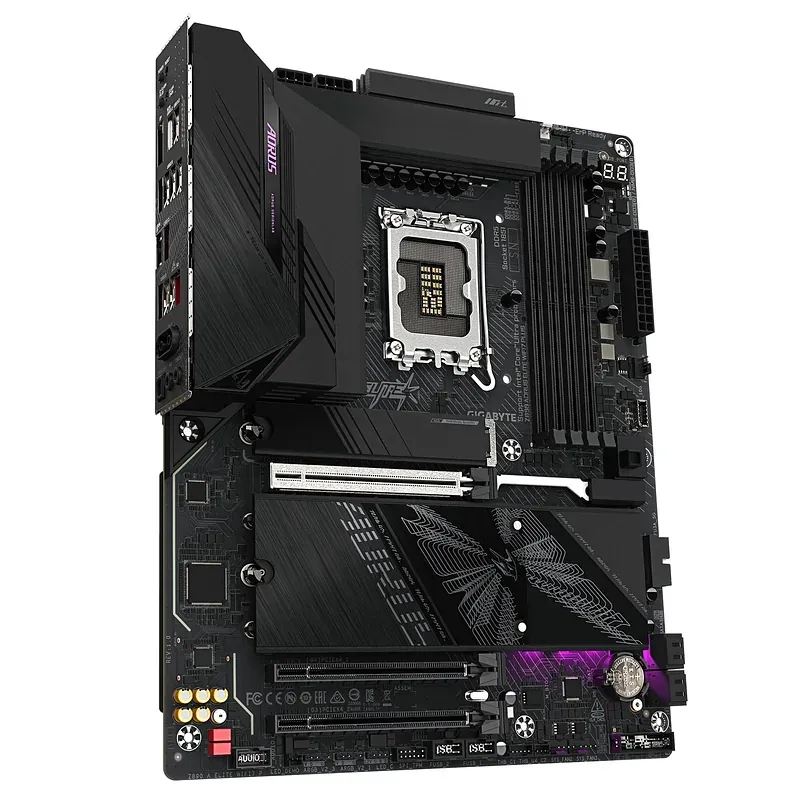

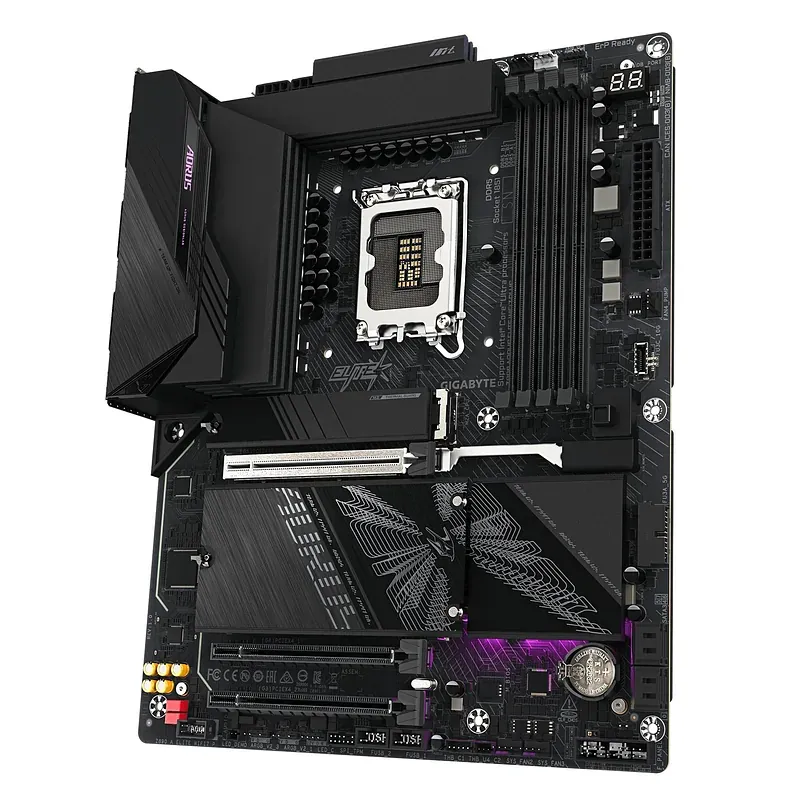

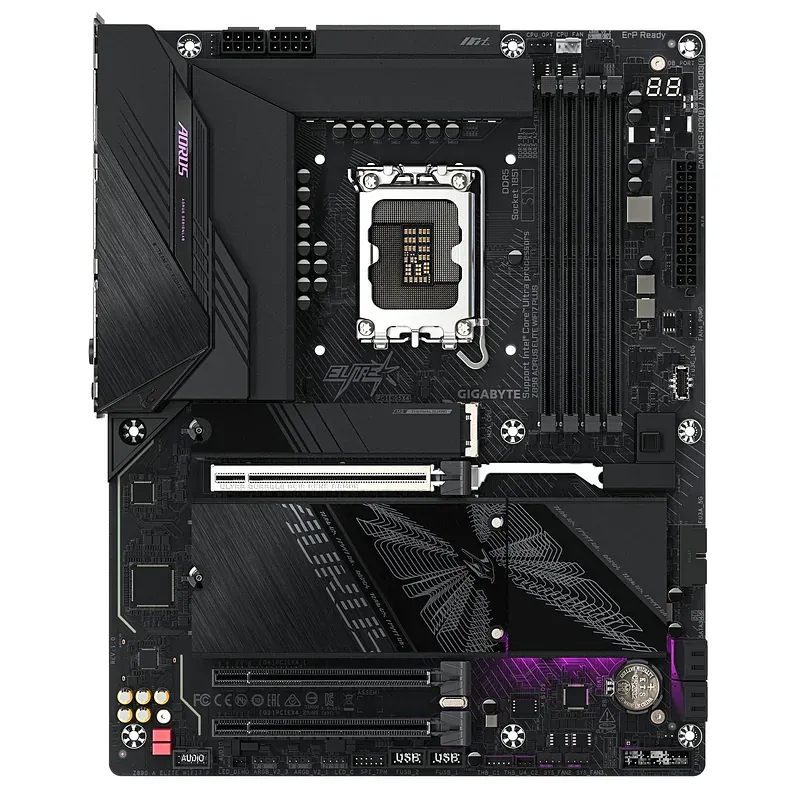

GIGABYTE Z890 AORUS ELITE WIFI7 PLUS: high-performance ATX motherboard designed for modern Intel Core Ultra Series 2 processors using the LGA 1851 socket. The Intel Z890 chipset, advanced power delivery, DDR5 support and extensive PCI Express connectivity make the board suitable for powerful gaming PCs, workstations and high-end desktop systems. The 16+1+2 Twin Digital VRM design with 60A DrMOS provides stable and efficient power delivery for demanding processors. A 2X copper PCB, large VRM heatsinks and Thermal Armor help maintain reliable temperatures during sustained workloads and intensive gaming sessions. Four DDR5 DIMM slots support up to 256 GB of system memory in dual-channel mode. The motherboard supports high-speed DDR5 modules with frequencies of up to 9466 MT/s and higher through overclocking, together with Intel XMP profiles for convenient memory tuning. Both standard UDIMM and CUDIMM modules are supported. The primary PCI Express x16 slot supports PCIe 5.0 and provides high bandwidth for modern graphics cards. Two additional full-length PCIe 4.0 slots operate electrically at x4 and can be used for expansion cards such as storage controllers, capture cards and additional network adapters. Four M.2 slots provide extensive high-speed SSD expansion. The primary M.2 connector supports PCI Express 5.0 x4, while the remaining slots support PCI Express 4.0. Four SATA 6 Gb/s ports are also available for traditional SATA SSDs and hard drives. RAID 0, 1, 5 and 10 configurations are supported for both NVMe and SATA storage, depending on the selected configuration. Integrated Realtek 5 Gigabit Ethernet provides fast wired network connectivity, while the Intel Wi-Fi 7 BE200 module supports the 2.4 GHz, 5 GHz and 6 GHz bands, 320 MHz channels and Multi-Link Operation. Bluetooth 5.4 is also integrated for wireless peripherals and accessories. The onboard Realtek ALC1220 audio codec provides high-quality 7.1-channel sound with support for DSD output and optical S/PDIF. The motherboard also offers extensive USB connectivity, including rear USB4 Type-C with DisplayPort support, USB 3.2 Gen 2 ports and multiple internal headers for front-panel USB connections. GIGABYTE EZ-Latch mechanisms simplify graphics card and M.2 SSD installation, while M.2 Thermal Guard heatsinks help keep high-performance NVMe drives at optimal temperatures. Q-Flash Plus allows BIOS updates without installing a processor, memory or graphics card. Device type Motherboard EAN 4719331880798 Manufacturer part number Z890 A ELITE WIFI7 P Full model GIGABYTE Z890 AORUS ELITE WIFI7 PLUS Form factor ATX Dimensions 305 × 244 mm CPU socket LGA 1851 Chipset Intel Z890 Express Supported processors Intel Core Ultra Series 2 Power design 16+1+2 Twin Digital VRM Power stages 60A DrMOS PCB 2X copper PCB Memory type DDR5 Memory slots 4 Maximum memory capacity 256 GB Memory architecture Dual channel Maximum memory speed Up to 9466 MT/s and higher with overclocking Intel XMP support Yes Supported memory modules UDIMM and CUDIMM ECC support Non-ECC unbuffered memory Primary expansion slot 1x PCI Express 5.0 x16 Additional expansion slots 2x PCI Express 4.0 x16, operating at x4 M.2 slots 4 Primary M.2 interface PCI Express 5.0 x4/x2 Additional M.2 interfaces 3x PCI Express 4.0 x4/x2 SATA support on M.2 Yes, on selected chipset M.2 slot SATA ports 4x SATA 6 Gb/s NVMe RAID RAID 0, 1, 5 and 10 SATA RAID RAID 0, 1, 5 and 10 Ethernet Realtek 5GbE LAN Maximum wired network speed 5 Gbps Wireless connectivity Intel Wi-Fi 7 BE200NGW Wi-Fi bands 2.4 GHz, 5 GHz and 6 GHz Maximum Wi-Fi channel width 320 MHz Multi-Link Operation MLO Yes Bluetooth 5.4 Audio codec Realtek ALC1220 Audio channels 7.1 Optical S/PDIF output Yes DSD audio support Yes Rear USB4 1x USB4 Type-C with DisplayPort support Rear USB 3.2 Gen 2 Type-A 2 Rear USB 3.2 Gen 1 Type-A 3 Rear USB 2.0 4 Front USB-C header 1x USB 3.2 Gen 2 Front USB 3.2 Gen 1 support Up to 2 ports Front USB 2.0 support Up to 4 ports DisplayPort version 2.1 Maximum DisplayPort resolution Up to 3840 × 2160 at 144 Hz, depending on CPU USB4 DisplayPort output Up to 3840 × 2160 at 144 Hz, depending on CPU ARGB headers 3x addressable RGB Gen 2 RGB header 1 CPU fan header 1 CPU / water cooling pump header 1 System fan headers 3 System fan / pump header 1 Thunderbolt add-in card connectors 2 internal connectors Compatible Thunderbolt add-in card GIGABYTE Thunderbolts 5 add-in card Rear buttons Power, Reset, Q-Flash Plus and Clear CMOS M.2 Thermal Guard Yes EZ-Latch system Yes VRM Thermal Armor Yes BIOS 512 Mbit AMI UEFI BIOS Supported operating system Windows 11 64-bit
