Emaplaat Gigabyte Z890 D PLUS emaplaat Intel Z890 LGA 1851 (Socket V1) ATX

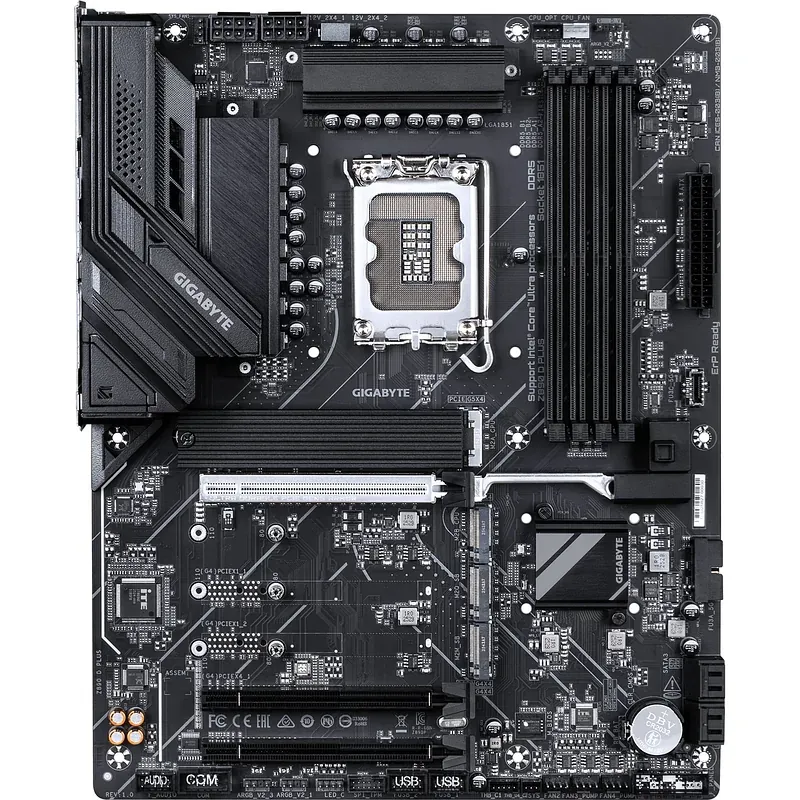

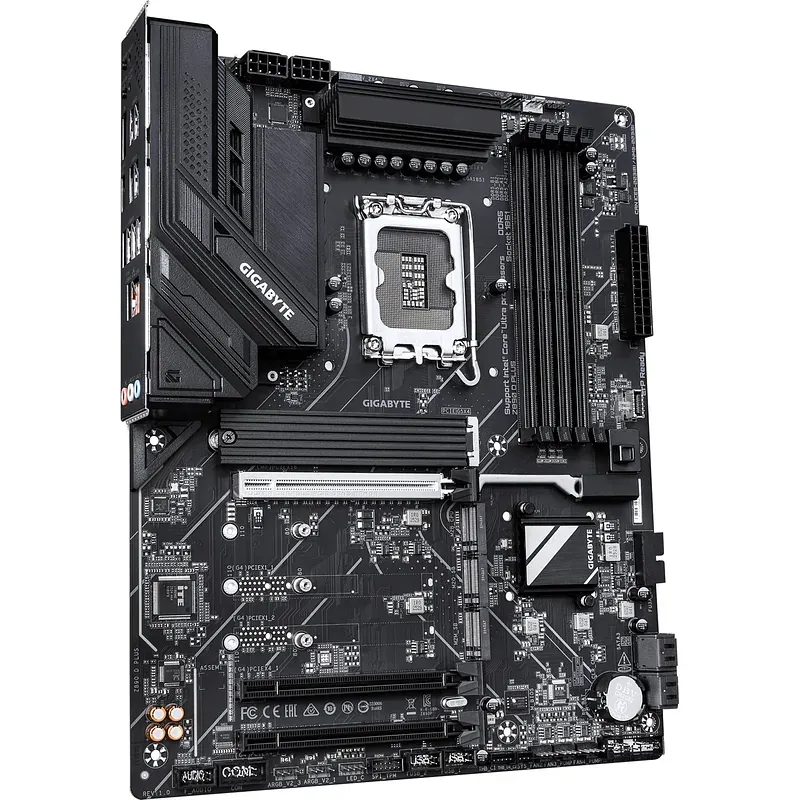

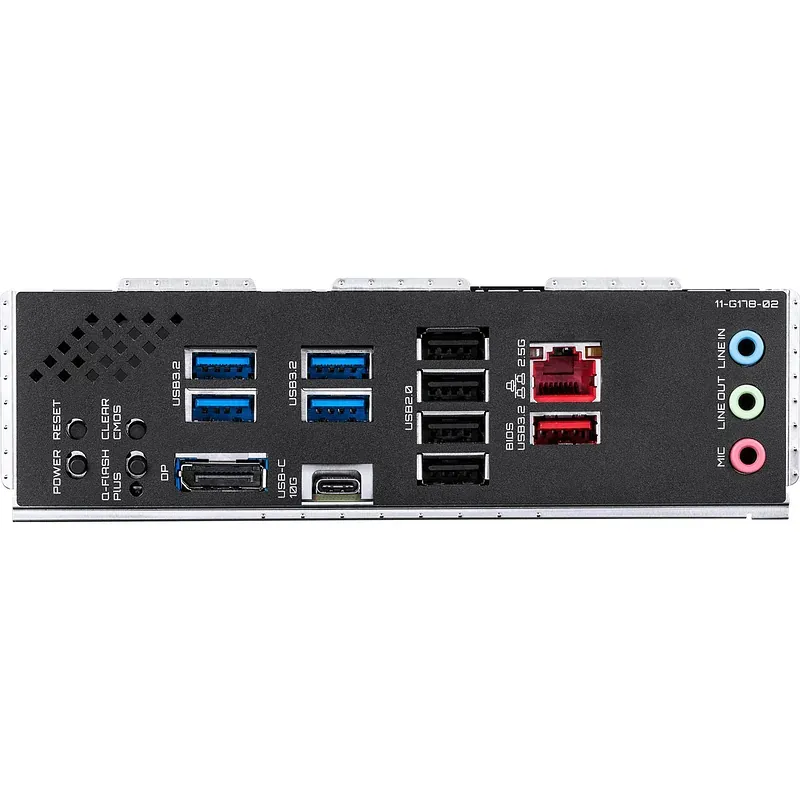

The GIGABYTE Z890 D PLUS is based on the Intel® Z890 chipset and supports Intel® processors for Socket 1851. It has four DDR5 slots for up to 192 GB of RAM. The GIGABYTE Z890 D PLUS's additional features include a PCIe 5.0 x16 slot and two PCIe 4.0 x16 slots (x4 lanes). The GIGABYTE Z890 D PLUS also has 8-channel sound, a 2.5 Gigabit LAN interface, four SATA3 ports, four M.2 ports and a number of USB interfaces. Mainboard type EAN 4719331880644 Manufacturer no. Z890D PLUS Base 1851 Max. supported CPUs 1 Operating system support Windows 11 ready Processor Supported models Core Ultra 5 2xx (Arrow Lake), Core Ultra 5 2xxF (Arrow Lake), Core Ultra 5 2xxK (Arrow Lake), Core Ultra 5 2xxKF (Arrow Lake), Core Ultra 5 2xxT (Arrow Lake), Core Ultra 7 2xx (Arrow Lake), Core Ultra 7 2xxF (Arrow Lake), Core Ultra 7 2xxK (Arrow Lake), Core Ultra 7 2xxKF (Arrow Lake), Core Ultra 7 2xxT (Arrow Lake), Core Ultra 9 2xx (Arrow Lake), Core Ultra 9 2xxK (Arrow Lake), Core Ultra 9 2xxKF (Arrow Lake), Core Ultra 9 2xxT (Arrow Lake) Chipset Intel® Z890 Slots PCIe x16 3x (of which: 1x PCIe x16, 2x PCIe x4) Slots Thunderbolt AddIn Header 2 BIOS 1x 256 Mbit flash AMI UEFI BIOS Form factor ATX Use PC Power supply ATX12V (24-pin + 2x 8-pin) Memory maximum 256 GB Memory number of sockets 4x DDR5 Memory supported standards up to DDR5 9466+MT/s (OC) Memory channels 2 Memory Maximum memory ranks 8 Memory memory controller in CPU Yes Ports (external) USB-C 3.2 Gen 2 (10 Gbit/s) 1 Ports (external) USB-A 3.2 Gen 2 (10 Gbit/s) 1 Ports (external) USB-A 3.2 Gen 1 (5 Gbit/s) 4 Ports (external) Note: The designation USB 3.2 Gen 1 corresponds to the previous designations USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the previous designations USB 3.1 Gen 2 or USB 3.1. Connections (external) USB-A 2.0 4 Connections (external) DisplayPort-Out 1 Connections (external) Microphone 1 Connections (external) Line-In 1 Connections (external) Line-Out 1 Connections (external) RJ-45 1 Connectors (internal) SATA 4 Connections (internal) M.2 4 Connections (internal) M.2 module Key M Connectors (internal) M.2 Slot 1 PCIe Gen 5.0 Connectors (internal) M.2 Slot 2 PCIe Gen 4.0 Connectors (internal) M.2 Slot 3 PCIe Gen 4.0 Connectors (internal) M.2 Slot 4 PCIe Gen 4.0 Connections (internal) Note: The actual usable speed of your M.2 SSDs depends on the combination of CPU, mainboard slot and chipset. Connections (internal) M.2 interface SATA, PCIe Connections (internal) M.2 length 80 - 110 mm Connections (internal) RGB LED header 1 Connections (internal) addressable RGB LED header 3 Connections (internal) 4-pin PWM fan 6 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 Ports (optional) USB-C 3.2 Gen 2 (10 Gbit/s 1 Ports (optional) USB 2.0 4 Connections (optional) TPM Yes RGB Standard RGB Fusion SATA controller Intel® Z890 Directly usable RAID levels 0, 1, 10, 5 USB controller Intel® Z890 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek ALC1220 CODEC LAN Realtek 2.5Gb Ethernet Intel® Wi-Fi 7 BE202 + Bluetooth 5.4 Further information In order to support the latest processor cores, a BIOS update may be required Dimensions Width: 244mm x Height: 305mm
